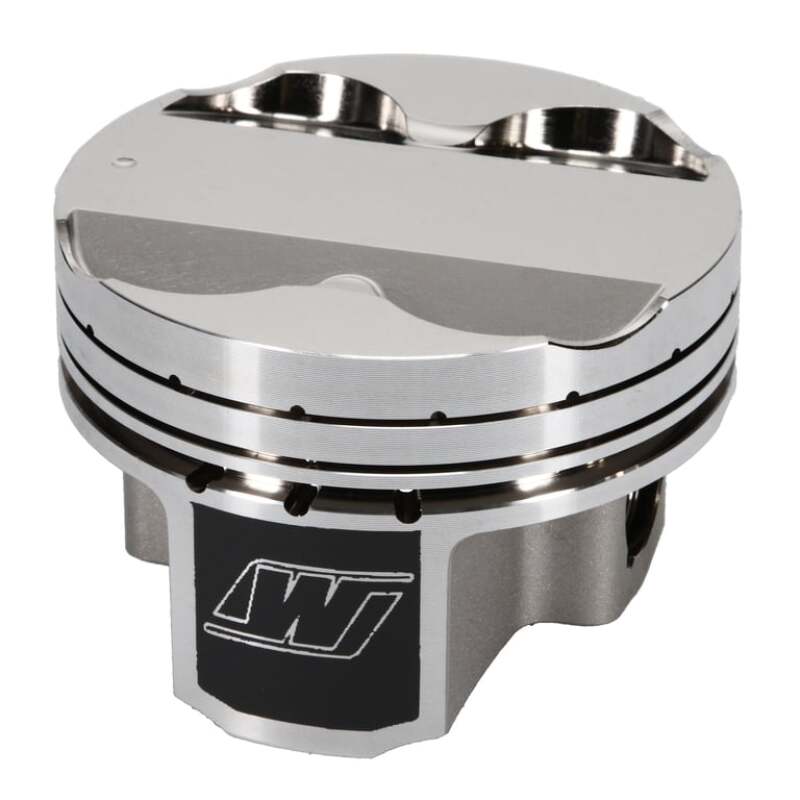

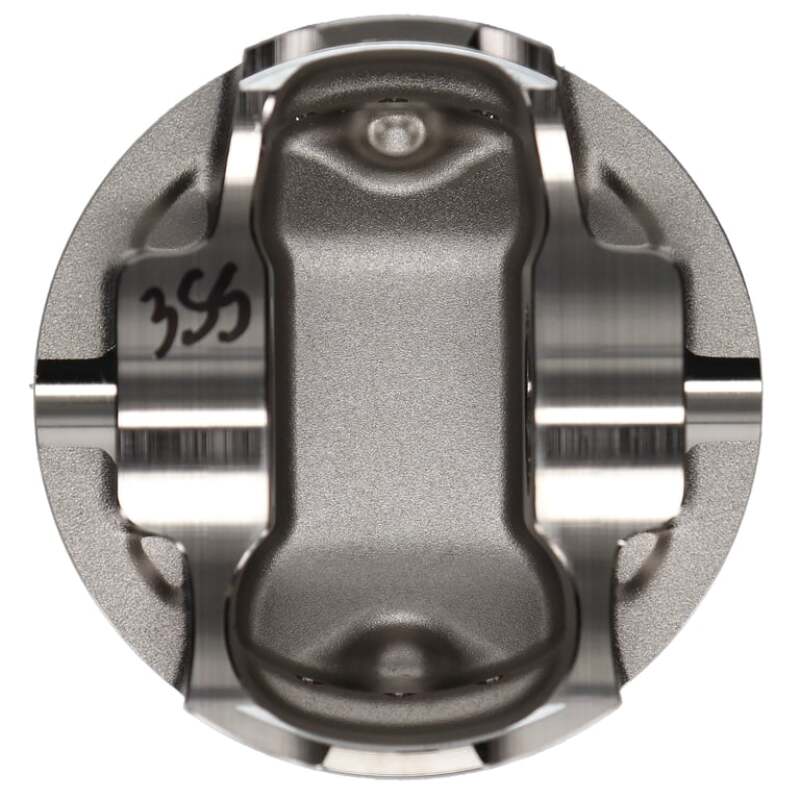

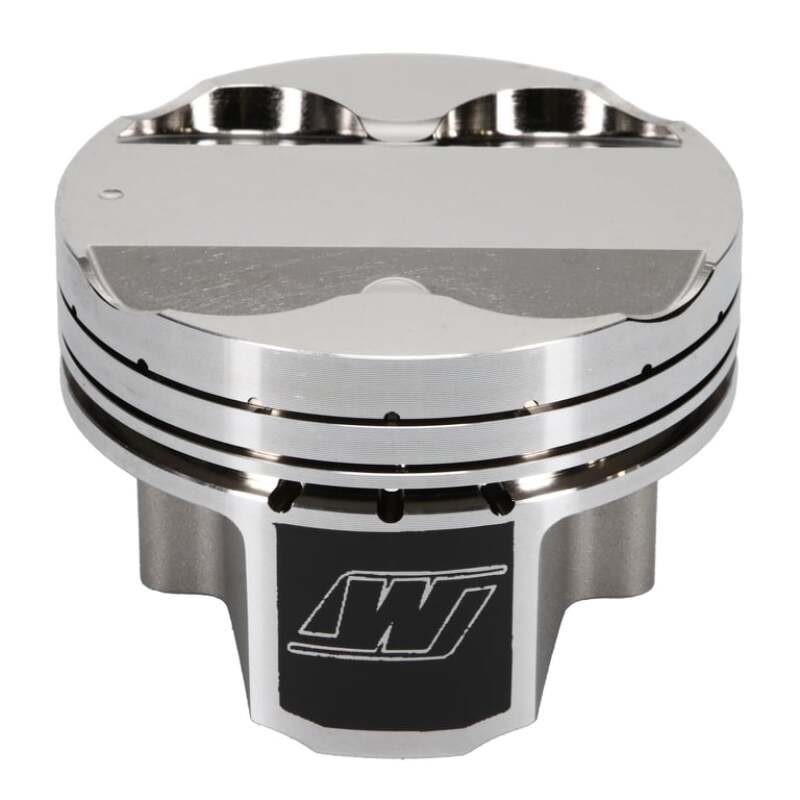

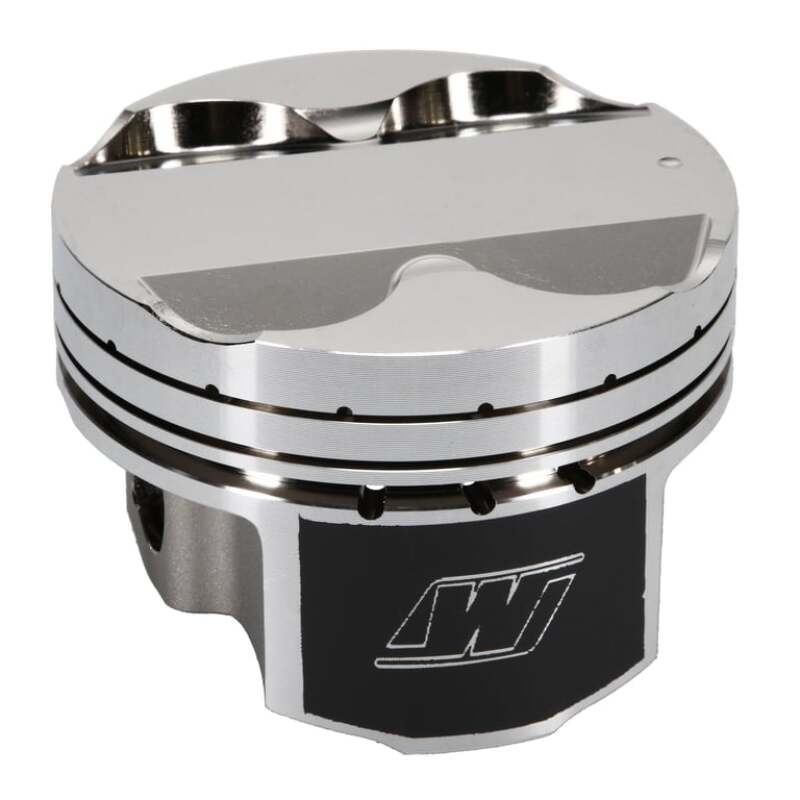

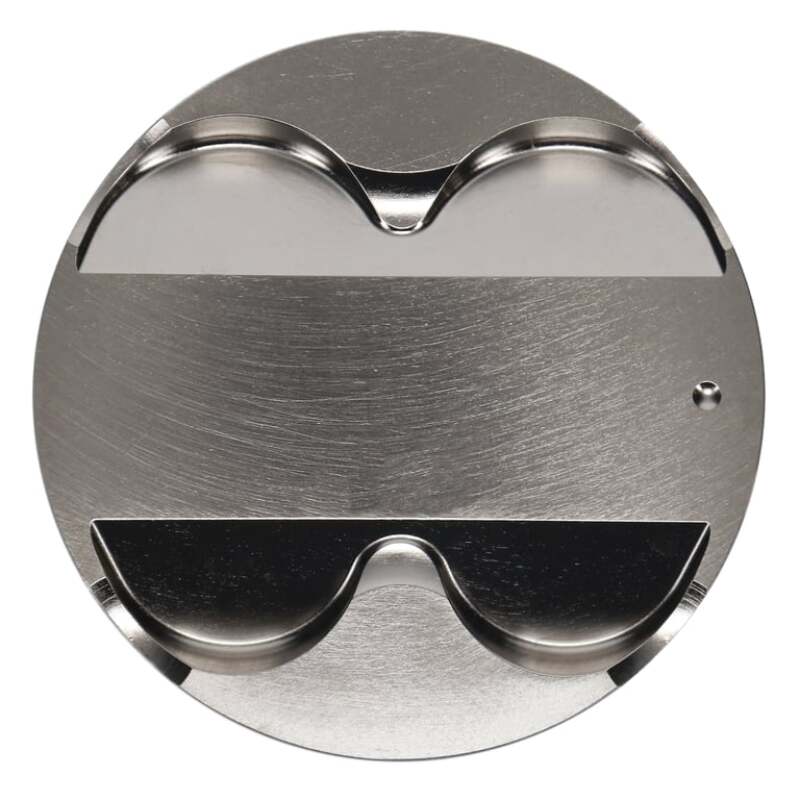

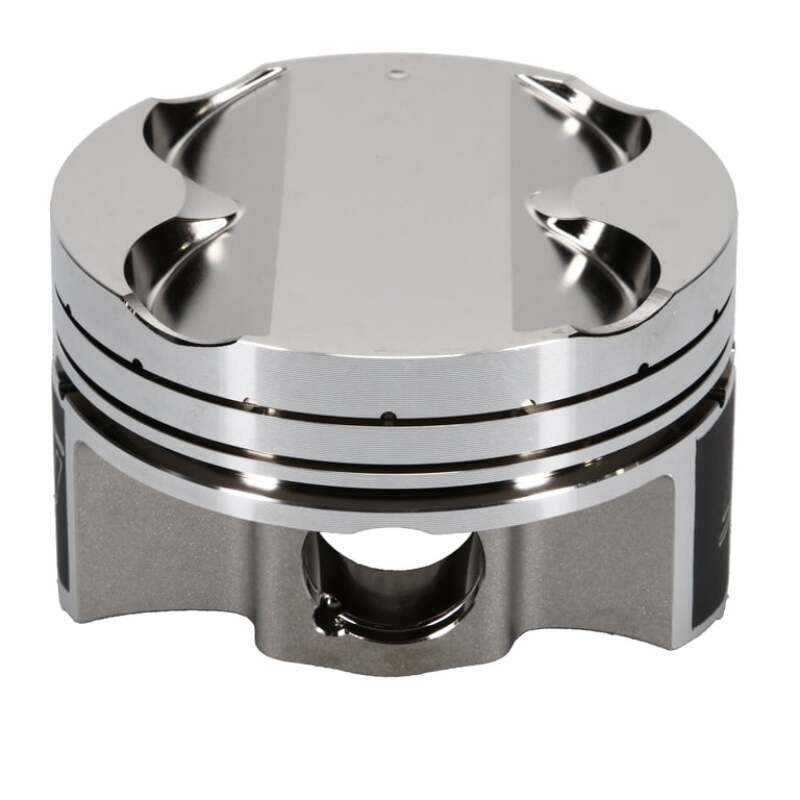

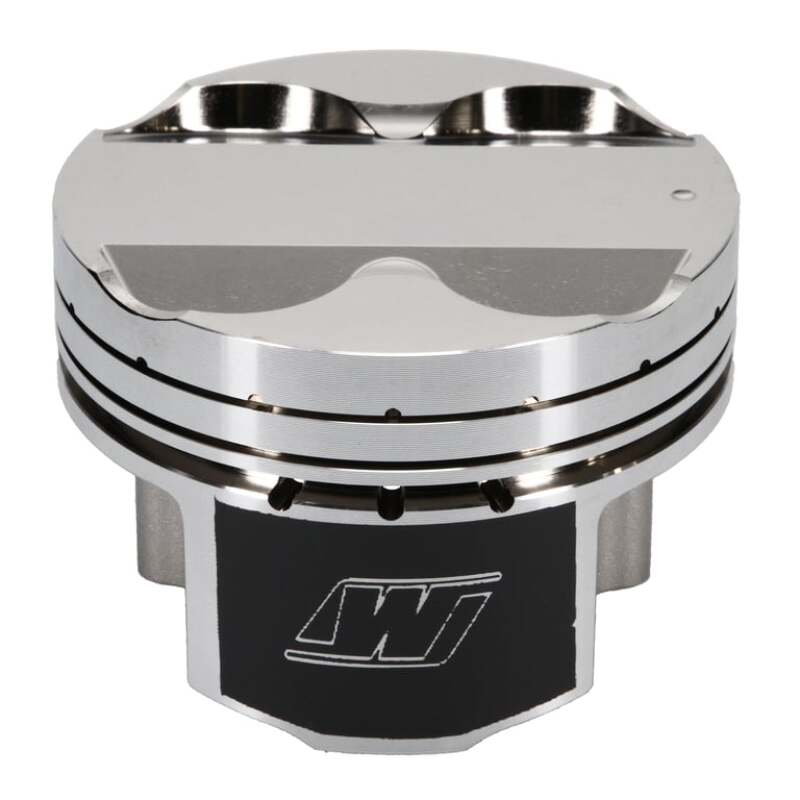

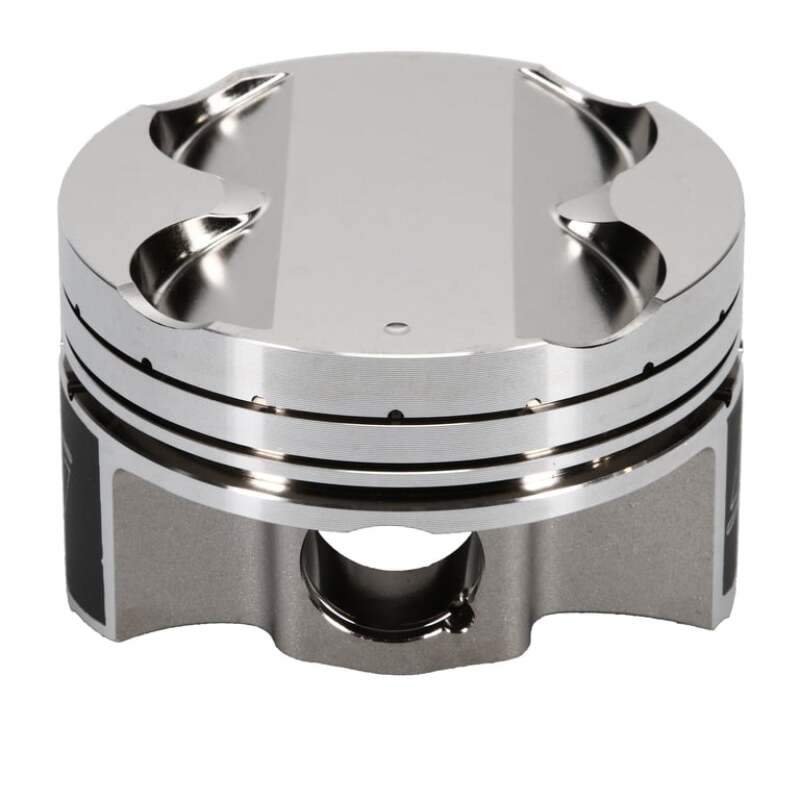

Wiseco K677M86AP Forged Asymmetric Skirt Pistons for 1993-1998 Toyota Supra 2JZ

Vehicle Fitment

• 1993-1998 Toyota Supra / Soarer (2JZ-GTE, 3.0 L, 24V)
• Also compatible with other 2JZ-GTE applications like Aristo

Features

• Forged from aerospace-grade aluminum for high strength
• Asymmetric skirt design to reduce friction and improve stability
• ArmorGlide® coating for lower friction and better ring seal
• Strutted forging adds reinforcement in high-stress areas
• Offset wrist-pin design for optimized balance and noise reduction
• Includes high-performance piston ring set
• Chrome-moly 22 mm wrist pins included
• Designed for high power, forced induction, or racing applications

Specifications

• Bore: 86.00 mm (3.386 in)
• Compression ratio: ~9.51:1
• Compression height: 34.00 mm (1.338 in)
• Rod length compatibility: 142 mm (5.590 in)
• Wrist-pin diameter: 22 mm
• Dish volume: -5.3 cc
• Approximate weight: ~365 g per piston
• Material: 2618 forged aluminum
• Set of 6 pistons for inline-6 engines

Included Components

• 6x forged pistons (asymmetric skirt)
• 6x chrome-moly wrist pins (22 mm)
• 12x circlips / locks for wrist pins
• Performance piston ring set
• Specification / data sheet

Product Description

The Wiseco K677M86AP piston set is a high-performance, forged solution for Toyota's 2JZ-GTE 3.0 L engine, commonly used in Supra and Soarer models from 1993 to 1998. Crafted from aerospace-grade aluminum with an asymmetric skirt design, these pistons provide exceptional durability, stability, and friction reduction for high-power and high-RPM applications.

With a compression height of 34 mm and a 9.51:1 compression ratio, the pistons are optimized for forced induction and race engines while maintaining reliability. The ArmorGlide coating enhances ring seal and reduces wear, and strutted forging reinforces high-stress areas.

The kit includes all necessary components for installation: six pistons, wrist pins, circlips, and a performance ring set. The offset pin design reduces piston rock and noise, providing a reliable and high-performance upgrade for the 2JZ-GTE platform.
