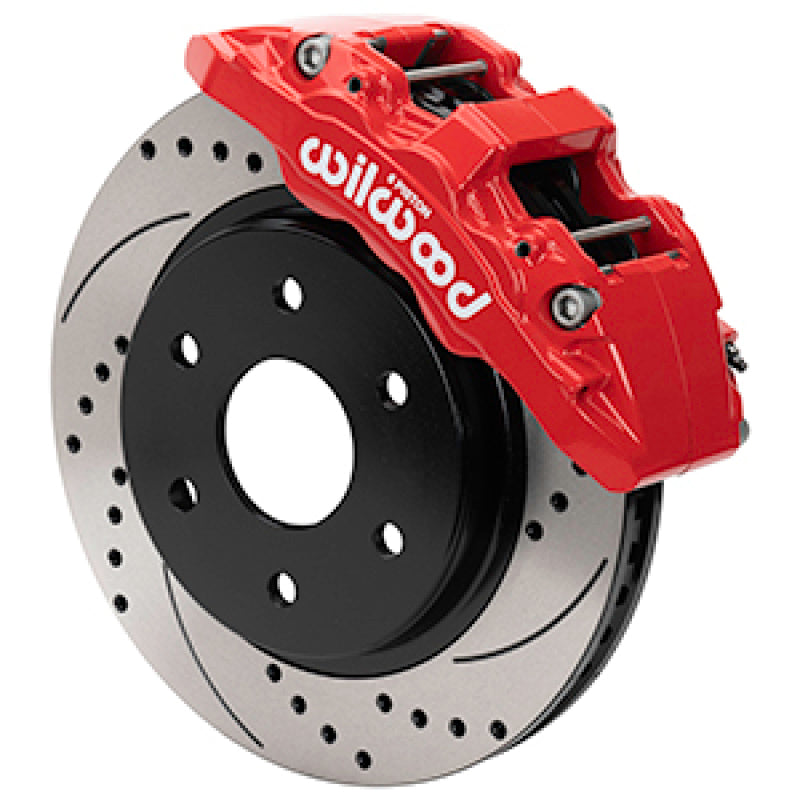

Wilwood 140-16808-DR Front Brake Kit-Red Calipers for 17-20 Ford F-150 Raptor

Vehicle Fitment

• 2017-2020 Ford F-150 Raptor (Gen II; 3.5 L EcoBoost V6; 4WD; factory disc spindle)

Fitment Notes

• Front-end brake kit only; replaces factory calipers and rotors
• Requires 17" or larger wheels for clearance
• Uses factory spindle mounting points--no adapter brackets needed

Features

• Red powder-coated Wilwood AERO6-DM 6-piston forged aluminum calipers
• High-capacity SRP drilled & slotted iron rotors (black electro-coat finish)
• Compatible with OEM master cylinder output and ABS systems
• Includes Wilwood BP-Q compound performance pads with backing plates
• Excellent heat dissipation for towing, off-road, and track use
• Brake line kit and mounting hardware included
• Designed for sustained high-load braking without fade
• Manufactured in USA and assembled to tight tolerances

Specifications

• Caliper: AERO6-DM, 6-piston, red powder coat, forged aluminum
• Piston bores (in): 1.75, 1.62, 1.62; total area ~6.52 in²
• Rotor: SRP-Drilled & Slotted iron with black electrolytic coating
• Rotor Diameter: 13.38"; Width: 1.25"
• Vane Count: 48, dynamically balanced
• Pad: BP-Q compound; pad area ~11.1 in² per caliper
• Wheel Fitment: ≥ 17" wheel required

Included Components

• 2x Wilwood AERO6-DM red 6-piston calipers (left & right)
• 2x SRP drilled/slotted rotors (13.38" x 1.25")
• 2x brake pad kits (BP-Q compound) with hardware
• Brake line kit compatible with OEM hard lines
• All required mounting bolts and installation instructions

Product Description

The Wilwood 140-16808-DR AERO6-DM brake kit is a direct bolt-on upgrade for 2017-2020 Ford F-150 Raptor Gen II with the factory spindle and disc setup. Featuring 13.38" x 1.25" SRP drilled & slotted rotors and high-capacity red AERO6-DM calipers, this kit delivers exceptional stopping power, cooling capacity, and fade resistance for towing, off-roading, and heavy-duty use.

Calibrated for compatibility with OEM master cylinder and ABS systems, the kit includes performance BP-Q pads and brake line adapter fittings. With all hardware included and wheel clearance for 17" or larger wheels, installation is straightforward. Ideal for Raptor owners seeking high-performance braking reliability under intense driving conditions.
