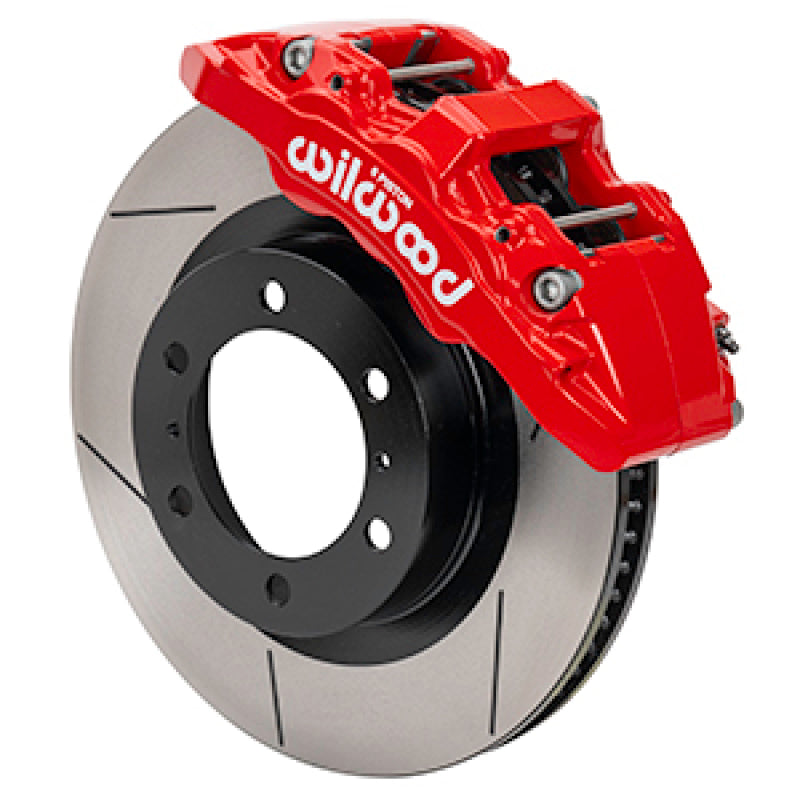

Wilwood 140-17511-R AERO6-DM 6-Piston Front Big Brake Kit Slotted 05-23 Tacoma

Vehicle Fitment

• 2005-2017 Toyota Tacoma (4x2 and 4x4, 6-Lug, All Engines)
• 2018-2023 Toyota Tacoma (SR, SR5, TRD Sport, TRD Off-Road, TRD Pro, Limited, Trail, Nightshade)
• 2007-2014 Toyota FJ Cruiser (All Trims)
• 2003-2014 Toyota 4Runner (All Trims)
• 2003-2009 Lexus GX470 (All Trims)
• 2010-2014 Lexus GX460 (All Trims)

Fitment Notes

• Factory disc spindle required -- not for use with aftermarket spindles
• Minimum 17" wheel required -- verify clearance before ordering
• Compatible with OEM master cylinder, ABS, and rear brakes
• No hub offset -- wheels remain at factory width
• Wilwood notes kit may fit additional vehicles -- call (805) 388-1188 to confirm
• Prop 65 warning: brake pad materials only

Features

• AERO6-DM 6-piston forged aluminum direct-mount calipers
• Red powder coat caliper finish
• 13.31" GT slotted iron rotors
• Black electro coat rotor finish
• 68-vane rotor design -- maximum cooling capacity
• Dynamically balanced rotors
• BP-22 performance brake pad compound included
• Stainless steel pistons
• Lug-mount caliper design -- direct factory spindle attachment
• OEM ABS and master cylinder compatible
• No drilling or cutting required
• Lifetime warranty
• Made in the USA

Specifications

• Caliper Type: AERO6-DM Direct-Mount
• Caliper Pistons: 6 per caliper
• Piston Bores: 1.62" / 1.38" / 1.38"
• Piston Area: 5.40 in²
• Piston Material: Stainless steel
• Caliper Material: Forged aluminum
• Caliper Finish: Red powder coat
• Pad Plate: 6617
• Pad Area: 11.1 in²
• Pad Volume: 5.2 in³
• Pad Compound: BP-22
• Rotor Type: GT Slotted (not drilled)
• Rotor Diameter: 13.31"
• Rotor Width: 1.26"
• Rotor Vanes: 68
• Rotor Finish: Black electro coat
• Bolt Pattern: 6 x 5.50" (6 x 139.70mm)
• Position: Front
• Minimum Wheel Size: 17"
• Left Caliper #: 120-17432-RD
• Right Caliper #: 120-17431-RD
• Brake Line Kit #: 220-14618
• UPC: 889545113877

Included Components

• 2x AERO6-DM 6-piston forged aluminum calipers (red powder coat)
• 2x 13.31" GT slotted iron rotors
• 1x BP-22 brake pad set
• 2x Stainless steel brake hose/line kit (220-14618)
• 1x Installation hardware kit

Product Description

The Wilwood 140-17511-R is an AERO6-DM Direct-Mount front big brake kit for Toyota and Lexus trucks and SUVs, covering the 2005-2023 Toyota Tacoma, 2007-2014 FJ Cruiser, 2003-2014 4Runner, 2003-2009 Lexus GX470, and 2010-2014 Lexus GX460. It is identical in construction and caliper specification to the 140-17511-DR but uses GT slotted-only rotors rather than drilled and slotted rotors. The slotted surface design provides consistent pad-to-rotor bite and effective gas and debris evacuation under sustained braking without the stress-concentration points associated with drilled holes -- making this variant a preferred choice for high-heat, high-load applications including towing, off-road, and overlanding. The AERO6-DM caliper was engineered specifically for direct mounting on factory disc spindles in heavy-weight and extreme-duty truck applications. Six stainless steel pistons per caliper -- staged at 1.62" and two at 1.38" -- provide 5.40 in² of total piston area per side for substantially increased clamping force over the factory system. BP-22 performance brake pads are included and provide fade-resistant braking across a wide temperature range. The system is fully compatible with the factory ABS, master cylinder, and rear brakes -- no proportioning valve changes or brake booster modifications are required. A minimum 17" wheel is required and buyers should verify clearance using Wilwood's wheel clearance diagram (DS1569) before ordering. No drilling or cutting is required for installation. This kit is also available as 140-17511 (black/slotted), 140-17511-D (black/drilled & slotted), and 140-17511-DR (red/drilled & slotted). Custom caliper colors are available directly from Wilwood. Backed by Wilwood's lifetime warranty.
