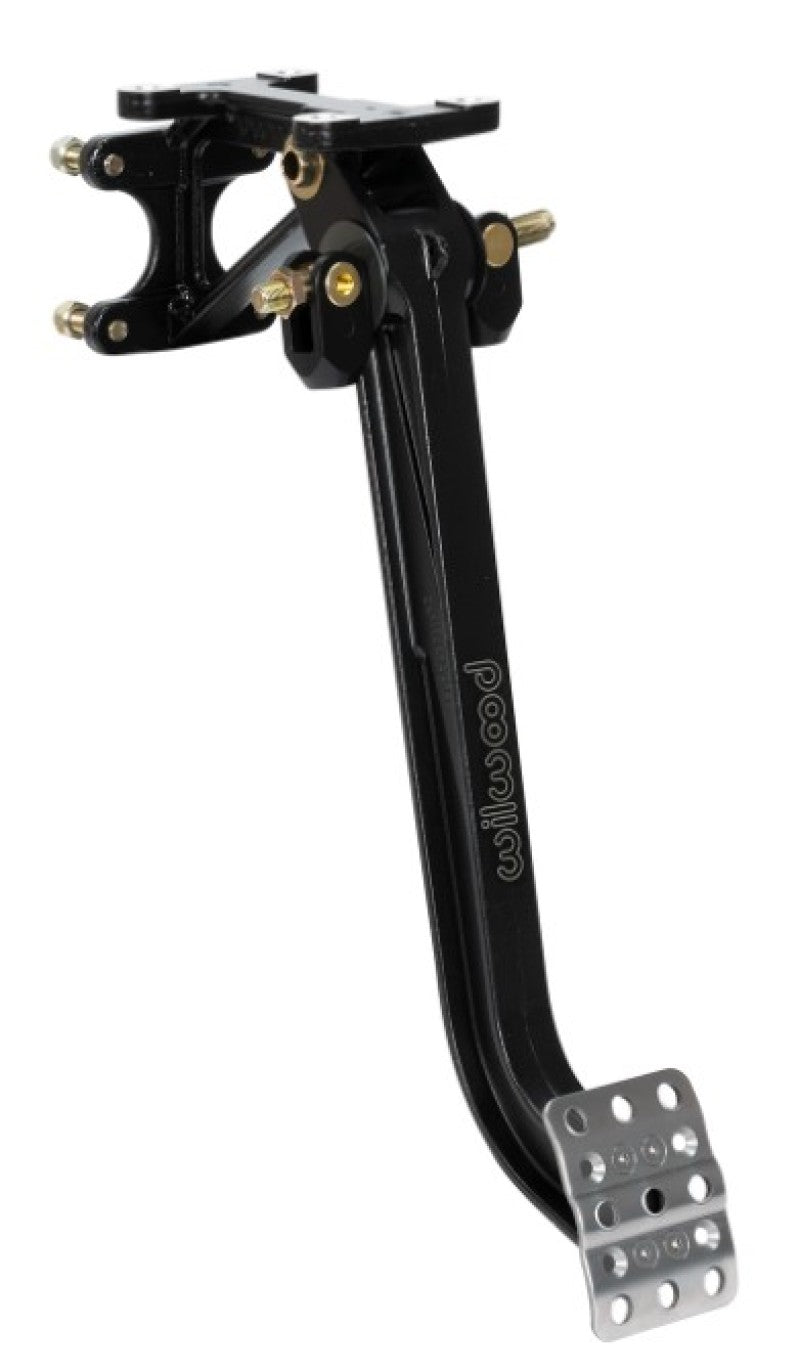

Wilwood 340-15677 Forward Swing Mount Brake Pedal Assembly 10:1 Universal

Vehicle Fitment

• Universal - designed for custom brake system installations and performance vehicles requiring a forward swing-mount pedal assembly

Features

• Forward swing-mount brake pedal assembly with balance bar and forward master cylinder mount orientation
• Lightweight aluminum frame construction for strength and reduced weight
• High-strength reinforced I-beam forged 10:1 pedal ratio arm for increased leverage and responsive braking
• Adjustable non-skid waffled pedal pad can be moved laterally for driver preference or clearance
• Balance bar incorporates positive detent stops every full turn to maintain adjustment position
• Pin and clevis pushrod attachment system allows high misalignment angle and bind-free operation through the range of travel
• Balance bar can be locked with jam nut or tuned with an optional remote cable for adjustments on track or street
• Accepts Wilwood vertical-mount flange single outlet master cylinders (sold separately by bore size and style) for tailored braking needs

Specifications

• Part Number: 340-15677 (Wilwood Forward Swing Mount Brake Pedal Assembly)
• Mount Location: Swing mount, forward facing (pedal pivots towards the driver)
• Pedal Ratio: 10:1
• Frame Material: Aluminum with black e-coated finish
• Pedal Arm Type: Reinforced I-beam forged aluminum
• Pedal Pad: Non-skid, waffled surface, laterally adjustable
• Balance Bar: Included with detent stops and jam nut lock
• Master Cylinder Mount: Forward external mount (master cylinder not included)

Included Components

• 1x Forward swing-mount brake pedal assembly (Wilwood 340-15677)
• 1x Integrated balance bar with detent stops
• Pushrod clevis and pivot hardware

Product Description

The Wilwood 340-15677 forward swing-mount brake pedal assembly is a universal high-performance brake control solution engineered for custom and performance brake systems where a forward-mounted master cylinder is preferred. Featuring a lightweight aluminum frame with a reinforced I-beam forged 10:1 ratio pedal arm, this assembly delivers excellent mechanical leverage for positive braking feel and force multiplication. The non-skid waffled pedal pad is laterally adjustable to suit driver positioning and clearance requirements.

A balance bar with positive detent stops ensures consistent bias adjustment, and a pin and clevis pushrod attachment system provides bind-free operation through the full pedal travel range. The pedal assembly accepts Wilwood vertical-mount flange single outlet master cylinders (sold separately), allowing flexibility in bore size and style to match your braking needs. Whether you're building a custom street machine, track car, or performance hot rod, the 340-15677 offers a durable, adjustable pedal base for a wide range of brake setups.
