Wehrli WCF100352-RED for 04.5-10 Chevrolet 6.6L LLY/LBZ/LMM Duramax Driver Side

Vehicle Fitment

• 2004.5-2010 Chevrolet Silverado / GMC Sierra 2500HD, 3500(HD) -- 6.6L Duramax (LLY, LBZ, LMM)

Fitment Notes

• Driver (hot) side intercooler pipe -- turbo outlet to intercooler
• Upgrades OEM 2.5" pipe to full 3" diameter
• Direct bolt-on -- no modifications or additional upgrades required
• No tuning required -- no check engine lights
• Replaces GM Part Numbers: 25789159, 15188717, 15188715
• Not CARB legal -- cannot be shipped to California

Features

• 50% increase in CFM flow over the OEM 2.5" pipe
• One-piece 14-gauge mandrel-bent aluminum -- no weld seams
• 5-ply silicone boots with high-temperature aramid liner rated to 500°F+
• Steel wire reinforcement in turbo outlet boot prevents expansion and blowout
• Straight boot connection at intercooler replaces failure-prone OEM angled elbow
• External bead roll prevents boot/clamp slippage under boost
• Stainless steel T-bolt clamps for secure, leak-free connections
• WCFab Red powder coat finish applied in-house
• Improved turbo spool-up, throttle response, and lower EGTs
• Made in USA

Specifications

• Part Number: WCF100352-RED
• Brand: Wehrli Custom Fabrication (WCFab)
• Product Type: Driver (Hot) Side Intercooler Pipe Kit
• Pipe Diameter: 3 in.
• OEM Pipe Diameter: 2.5 in.
• Pipe Material: 14-Gauge Aluminum
• Pipe Construction: One-Piece Mandrel Bent (Seamless)
• Boot Material: 5-Ply Silicone w/ Aramid Liner
• Clamp Type: Stainless Steel T-Bolt
• Finish: WCFab Red Powder Coat
• Position: Driver Side (Hot Side)
• Tuning Required: No
• Weight: 10.0 lbs
• OEM Replacement: 25789159, 15188717, 15188715
• CARB Legal: No
• Made in USA
• Sold as Kit

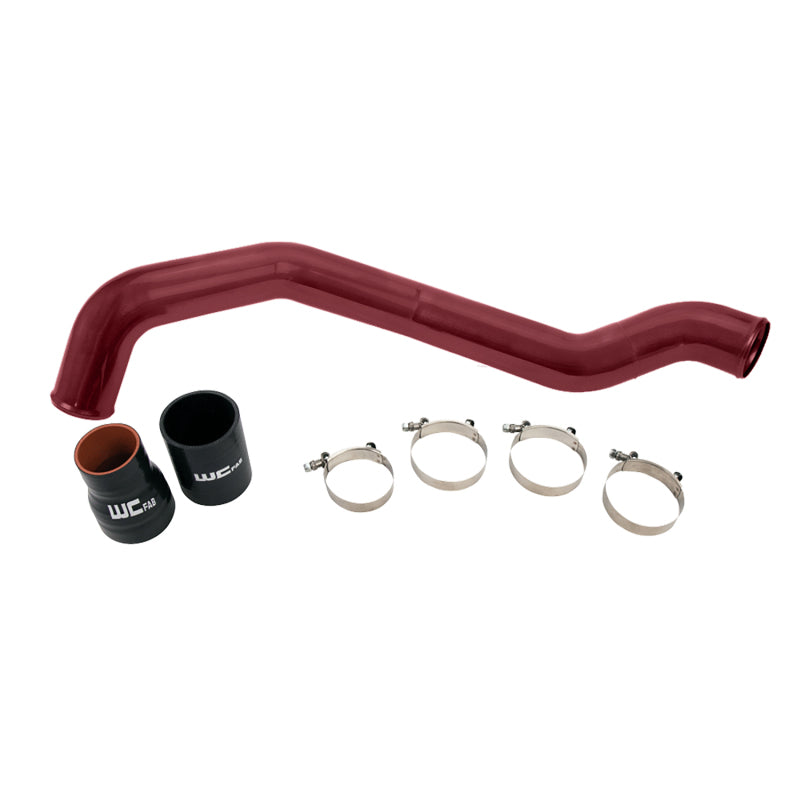

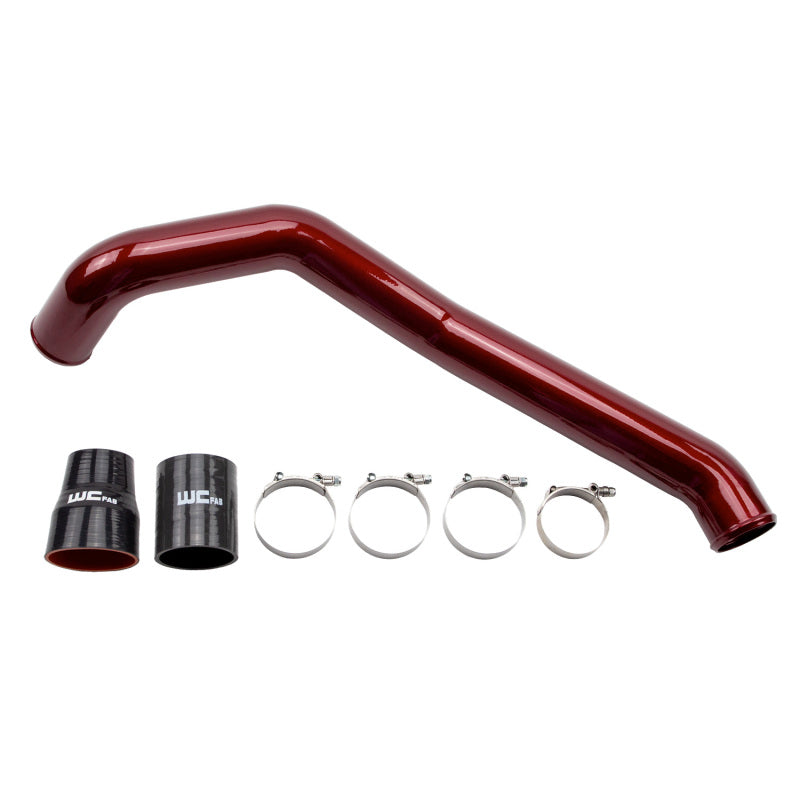

Included Components

• (1) WCFab 3" Driver Side Intercooler Pipe (Powder Coated)
• 5-Ply Silicone Boots
• Stainless Steel T-Bolt Clamps

Product Description

The Wehrli Custom Fabrication WCF100352-RED is a high-flow 3" driver (hot) side intercooler pipe kit for 2004.5-2010 Chevrolet Silverado and GMC Sierra 2500HD/3500 trucks with the 6.6L Duramax diesel (LLY, LBZ, LMM). This kit replaces the restrictive 2.5" OEM pipe with a full 3" unit, delivering a 50% increase in CFM airflow for improved turbo spool-up, quicker throttle response, and lower EGTs. The one-piece 14-gauge mandrel-bent aluminum pipe has no weld seams for smooth internal airflow and long-term durability. The included 5-ply silicone boots feature a high-temperature aramid liner rated to over 500°F with steel wire reinforcement at the turbo outlet to prevent the expansion and blowout common with factory boots. A straight boot connection at the intercooler replaces the failure-prone OEM angled elbow, and an external bead roll keeps boots and clamps locked in place under boost. Stainless steel T-bolt clamps ensure leak-free connections at every joint. This is a direct bolt-on kit requiring no tuning and no modifications, finished in WCFab Red powder coat. Not CARB legal -- cannot be shipped to California.
