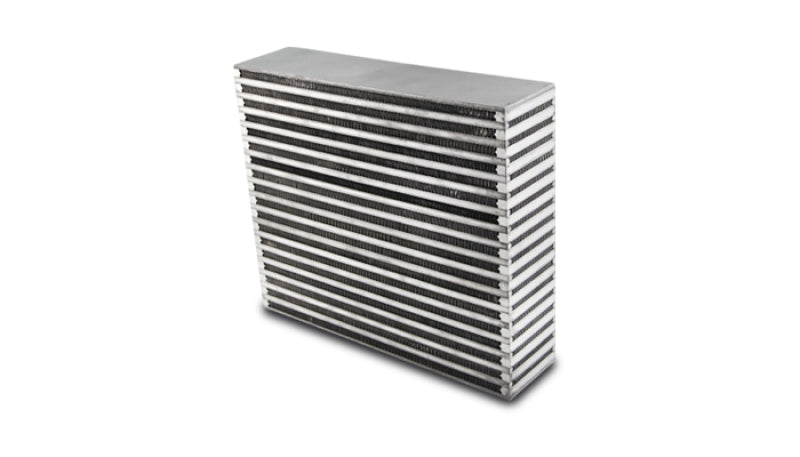

Vibrant 12930 Horizontal Flow Air-to-Air Intercooler Core 14"x11.75"x3.5" Bar

Vehicle Fitment

• Universal - Compatible with any custom forced induction application requiring a horizontal flow air-to-air intercooler core measuring 14" W x 11.75" H x 3.50" Thick

Fitment Notes

• Universal part - not vehicle-specific; end tanks, inlet/outlet fittings, and mounting hardware are not included
• Horizontal flow design - ambient air flows horizontally through the core
• Compatible with Vibrant TIG-welded cast aluminum end tanks (sold separately)
• Suitable for turbo and supercharger applications on street and race builds
• Sold individually - one intercooler core per package

Features

• Heavy-duty bar and plate construction for superior cooling efficiency over tube-and-fin designs
• Louvered fin design on ambient air path maximizes available core surface area for heat transfer
• Offset fin design on charge air path minimizes pressure drop for maximum power output
• 6061 aluminum construction for optimal strength, corrosion resistance, and heat dissipation
• Compact 14" wide profile suits narrow front-mount and side-mount intercooler configurations
• Weld-ready core - cleaned and prepared for TIG welding straight out of the box
• 1-year limited warranty backed by Vibrant Performance

Specifications

• Style: Horizontal Flow Air-to-Air Intercooler Core
• Core Width: 14.00 in.
• Core Height: 11.75 in.
• Core Thickness: 3.50 in.
• Material: 6061 Aluminum
• Construction: Bar and Plate
• Fin Design: Louvered (Ambient Path) / Offset (Charge Path)
• Finish: Natural Aluminum
• Application: Universal

Included Components

• 1x Vibrant 12930 Horizontal Flow Air-to-Air Intercooler Core - 14" W x 11.75" H x 3.50" Thick

Product Description

The Vibrant Performance 12930 is a horizontal flow air-to-air intercooler core built for custom forced induction applications where a compact but capable core is required. Its bar and plate construction - with a louvered fin design on the ambient air path and an offset fin design on the charge air path - delivers significantly cooler, denser intake air than tube-and-fin alternatives, reducing detonation risk and maximizing turbo or supercharger efficiency under boost.

At 14" wide x 11.75" high x 3.50" thick, the 12930 is well-suited for narrow front-mount or side-mount intercooler applications where space is at a premium. The core arrives cleaned and weld-ready for custom end tank fabrication or pairing with Vibrant's TIG-welded cast aluminum end tank assemblies (sold separately), making it a solid foundation for a professional-quality intercooler build on street or race vehicles.
