Turbosmart TS-0223-1241 Kompact EM Plumback BOV for 2025-2026 Ram 1500 Hurricane

Vehicle Fitment

• 2025-2026 Ram 1500 - Standard Output (Tradesman, HFE, Big Horn, Warlock, Laramie, Rebel, 3.0L Hurricane Twin-Turbo I6, 420 HP, RWD/4WD)
• 2025-2026 Ram 1500 - High Output (Longhorn, Limited, Tungsten, RHO, 3.0L Hurricane Twin-Turbo I6, 540 HP, RWD/4WD)

Fitment Notes

• Does not fit 2025-2026 Ram 1500 with 3.6L Pentastar V6 engine
• Does not fit 2026 Ram 1500 with returning 5.7L HEMI V8 engine
• The 3.0L Hurricane is a twin-turbo engine with two diverter valves - this kit is sold as a matched pair (2x Plumback valves) to replace both factory units
• Fits both Crew Cab and Quad Cab body styles in all bed lengths

Features

• Full recirculating (Plumback) design returns all excess boost back into the intake, maintaining MAF accuracy and OEM-style operation with no atmospheric venting sound
• Boost-Balance Valve Technology ensures sealing force scales with boost pressure, preventing leakage on both Standard and High Output Hurricane tunes
• Integrated proprietary high-temperature solenoid - no external solenoids, reference hoses, or adapters required for installation
• True plug-and-play upgrade retaining full OEM ECU control and factory diverter valve behavior
• CNC-machined billet aluminum construction with high-temperature O-rings for superior durability over the factory plastic units
• Positive seal O-ring on piston face eliminates boost creep and compressor surge under hard acceleration

Specifications

• Part Number: TS-0223-1241
• Valve Series: Kompact EM VR32
• Valve Type: Plumback (full recirculating - diverter valve)
• Construction: CNC-machined billet aluminum
• Seals: High-temperature O-rings and positive seal O-ring on piston face
• Solenoid: Integrated onboard proprietary high-temperature solenoid
• Fitment Style: Direct OEM bolt-on replacement (no adapters required)
• Compatible Engine: 3.0L Hurricane Twin-Turbo I6 (Standard Output 420 HP and High Output 540 HP)

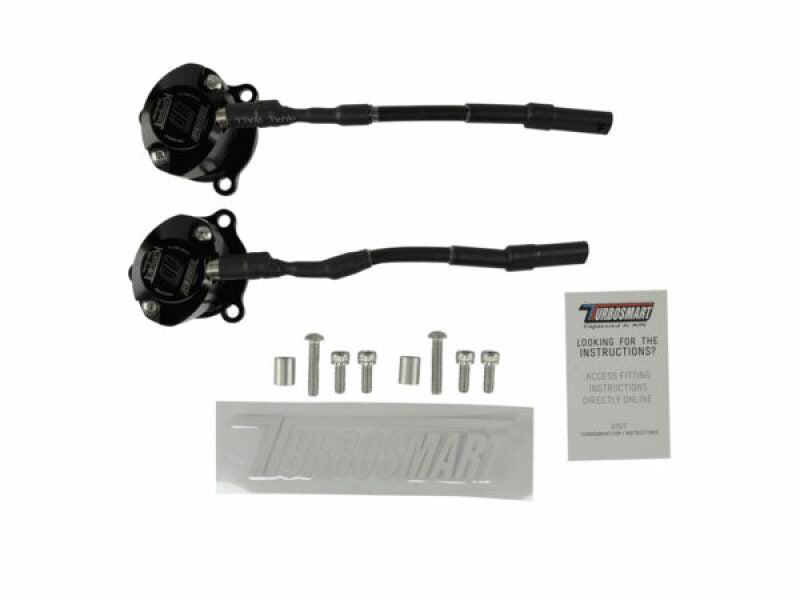

Included Components

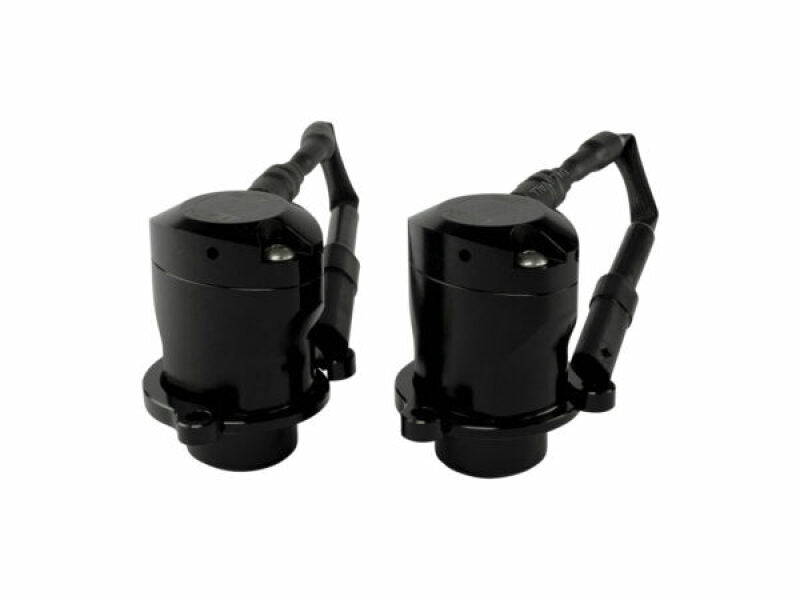

• 2x Turbosmart Kompact EM Plumback VR32 Diverter Valves (matched pair)
• 2x Integrated high-temperature solenoids (pre-installed)
• 1x Hardware/installation kit

Product Description

The Turbosmart Kompact EM Plumback VR32 (TS-0223-1241) is a matched pair of recirculating diverter valves engineered as direct plug-and-play replacements for both factory units on the 2025-2026 Ram 1500's 3.0L Hurricane twin-turbo I6 engine. Because the Hurricane platform runs two turbochargers - each with its own diverter valve - this kit includes two VR32 Plumback valves to ensure both sides are upgraded simultaneously. The Plumback configuration routes all excess boost pressure back into the inlet tract, delivering a stealth upgrade with no atmospheric vent sound, while maintaining full MAF sensor accuracy and OEM ECU integration. This makes it the ideal choice for stock-appearing and daily-driven Ram 1500 builds across all Hurricane trims, from the Tradesman to the high-output RHO.

Built from CNC-machined billet aluminum with Turbosmart's patented Boost-Balance Valve Design, the TS-0223-1241 directly resolves the boost leakage and sluggish response common in the factory plastic diverter valves - particularly under the elevated boost pressures of the High Output Hurricane's 540 HP tune. Installation requires no hoses, no separate solenoids, and no ECU recalibration - simply unplug the OEM valves, bolt these in, and reconnect the factory electrical connectors.
