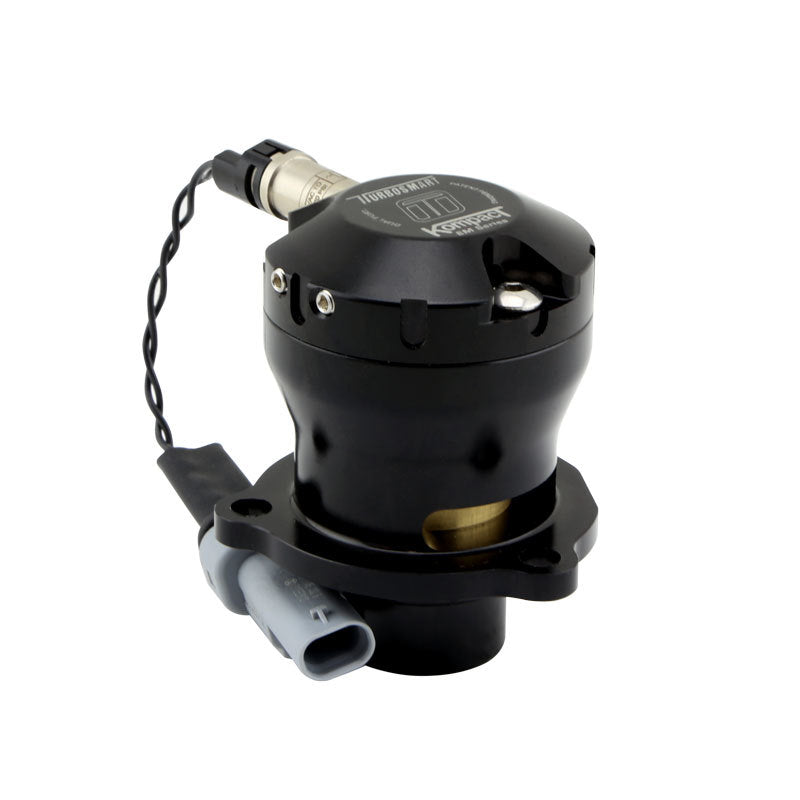

Turbosmart TS-0223-1096 BOV Dual Port for 19-26 Ford Ranger/Explorer EcoBoost

Regular price: $315.89
Regular price: ~~$350.99~~
Sale price: $315.89

Shipping calculated at checkout.

In Stock: 54

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:TURTS-0223-1096

MPN: TS-0223-1096

UPC: 9329677021516

Weight: 0.9 lb

Inventory: 54

Type: Blow Off Valves

-Authorized Dealer-Genuine/Authentic Parts Only-Free 30 day returns-Warranty includedimg{max-width:100%}pan style="color: rgb(58, 58, 58); font-family: Roboto, -apple-system, "system-ui", "Segoe UI", Roboto, "Helvetica Neue", Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol", "Noto Color Emoji"; font-size: 16px; font-weight: bolder; letter-spacing: normal; text-align: center; display: inline !important;">Ford- 2019-2024 Ranger 2.3L EcoBoost
- 2020-2024 Explorer 3.0L EcoBoostThe Multiple Award-winning Kompact EM Series of Upgraded Diverter Valves are the world's first truly plug and play Upgrade solution for your factory diverter valve. Simply unplug and unbolt your OEM Valve, and install a Kompact EM Valve in its place. No adaptors, hoses or extra assembly are required.The Kompact EM Valve Series from Turbosmart, takes the motorsport proven, billet valve technology and adds an onboard proprietary solenoid system and internal pressure control channels for a simple plug & play valve with full OE integration and control. There are no reference hoses, no separate solenoids and no fiddly bits - Just bolt-on & plugin!You can count on unmatched performance & reliability as a direct replacement for your factory diverter valve. The Kompact EM Valves overcome the common faults associated with plastic factory valves through our Boost-Balance Valve Design (The more boost you have, the better it seals), Positive Seal O-Ring on the Piston's face and Billet Construction. No matter your application, the Kompact EM Series will hold more boost and be more responsive in any environment.Key Features
Boost-Balance Valve TechnologyPatented integrated pressure control
True plug and play upgrade
Integrated proprietary high-temperature solenoid valve
Billet construction with high temperature o-rings
Fitment available in Plumback or Dual Port optionsSUPPLIED WITH
Kompact EM Series Diverter Valve3 x M6 FastenersTurbosmart Decal *Parts sold are for USA spec vehicles, please contact us to verify fitment on international models.*Canada customers - If eBay does not collect import & duty fees during checkout, the shipping carrier will collect them prior to delivery.

Vehicle Fitment

2019-2026 Ford Ranger (2.3L EcoBoost I4 Turbo)
2020-2022 Ford Explorer ST (3.0L EcoBoost V6 Twin-Turbo)

Fitment Notes

Direct plug-and-play replacement for factory electronic diverter valve
Retains factory solenoid and ECU control -- no adapters or hoses needed
Compatible with OEM and most aftermarket intercoolers
Dual Port -- vents to atmosphere and recirculates to intake
Convertible to full atmosphere or full bypass using included blanking plug
Plumb Back version (full recirculation): TS-0223-1296
Not CARB legal -- race use only in California
Sold individually

Features

Kompact EM series -- plug-and-play electronic BOV upgrade
Dual Port: quiet recirculation at low RPM, atmospheric venting at high RPM
Patented Boost-Balance Valve Design -- seal improves as boost increases
Positive-seal O-ring on piston face eliminates boost leakage
Integrated proprietary high-temperature solenoid system
Billet aluminum and brass construction with high-temp O-rings
Black anodized finish
Replaces weak factory plastic valve internals
Designed, engineered, and manufactured in Sydney, Australia
1-year limited warranty

Specifications

Valve Type: Blow-Off Valve / Diverter Valve
Series: Kompact EM (Electro-Mechanical)
Configuration: Dual Port (Atmosphere + Recirculation)
Model: VR13
Material: Billet Aluminum / Brass
Finish: Black Anodized
Solenoid: Integrated Proprietary High-Temperature
Pressure Control: Patented Boost-Balance
CARB Legal: No
Quantity: Sold Individually
Warranty: 1 Year

Included Components

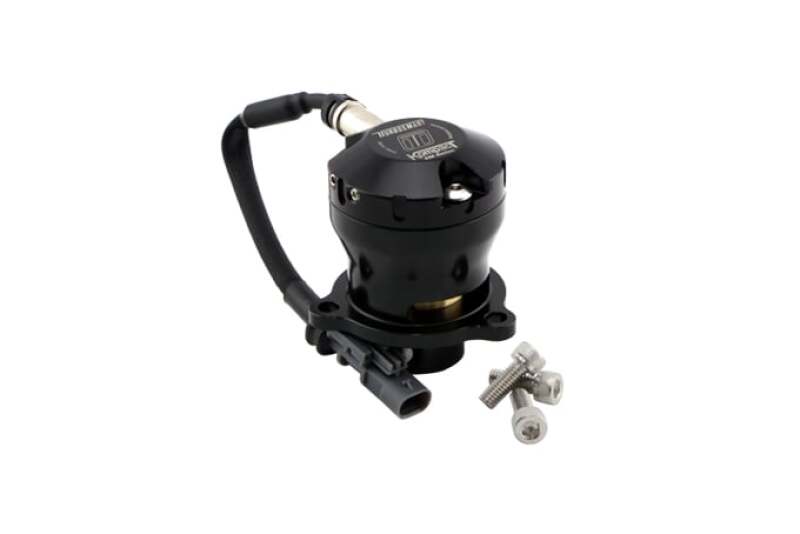

1x Turbosmart Kompact EM Dual Port VR13 blow-off valve
3x M6 fasteners
1x Port blanking plug (for full atmosphere or full bypass conversion)
1x Turbosmart decal
1x Installation instructions

Product Description

The Turbosmart TS-0223-1096 Kompact EM Dual Port VR13 is a plug-and-play electronic blow-off valve designed for the 2019-2023 Ford Ranger 2.3L EcoBoost and 2020-2023 Ford Explorer ST 3.0L EcoBoost. This valve replaces the factory plastic diverter valve internals with billet aluminum and brass components while retaining the factory solenoid and full ECU control for seamless integration. The Dual Port configuration operates quietly at low RPM by recirculating vented pressure into the intake, then vents to atmosphere at high RPM for an aggressive blow-off sound during spirited driving.

The patented Boost-Balance Valve Design ensures the seal improves as boost pressure increases, eliminating the leakage common with worn factory plastic valves. A positive-seal O-ring on the piston face provides additional leak prevention, making this valve ideal for both stock and modified EcoBoost applications running higher boost. The included port blanking plug allows conversion to full atmospheric venting or full bypass recirculation depending on preference. Compatible with the factory intercooler and most aftermarket intercooler setups. Not CARB legal -- intended for race use only in California. The Plumb Back version (full recirculation, no atmospheric venting) is available under TS-0223-1296. Manufactured in Sydney, Australia.
