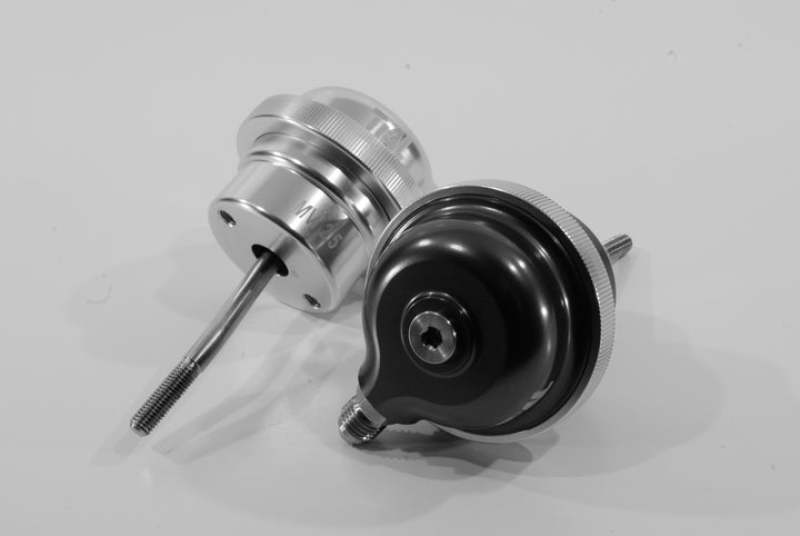

TiALSport 006667 MV-I 2.5 Wastegate Actuator 18 PSI Straight Rod Black

Vehicle Fitment

• Universal fit - designed for modern turbocharged performance applications requiring an aftermarket MV-I 2.5 wastegate actuator. Custom mounting and linkage adaptation required.

Features

• 18 PSI (≈1.24 bar) spring preload for high-boost applications.
• Straight-rod linkage design for optimal actuation geometry.
• Anodised black aluminium housing for durability and corrosion resistance.
• Compact overall height (≈2.2") enabling installations in constrained spaces. :contentReference[oaicite:1]{index=1}
• High-temperature silicone-reinforced Nomex diaphragm ensures consistent actuation under extreme conditions. :contentReference[oaicite:2]{index=2}
• Universal two-bolt mounting pattern for broad compatibility with aftermarket turbo housings. :contentReference[oaicite:3]{index=3}
• M8 air-fitting ports with optional locations for flexible vacuum/boost routing. :contentReference[oaicite:4]{index=4}
• Ideal for fabricators, tuners and serious performance builds where OEM wastegate actuators are insufficient.

Specifications

• Part Number: 006667
• Actuator Model: MV-I 2.5
• Spring Preload: 18 PSI
• Rod Configuration: Straight-rod
• Housing Finish: Black anodised aluminium
• Mounting Pattern: Universal two-bolt
• Air Fittings: M8 ports, dual location capable

Included Components

• 1x MV-I 2.5 actuator assembly (18 PSI, straight rod, black anodised) part 006667
• 1x Air-fitting set (M8 ports and hardware)
• Mounting bolts for two-bolt installation

Product Description

The TiALSport 006667 MV-I 2.5 Wastegate Actuator is engineered to deliver precision boost control in high-performance turbocharger systems. With an 18 PSI spring preload and a straight-rod linkage configuration, this actuator offers strong, consistent actuation for elevated boost pressures and aggressive tuning setups.

Its compact footprint makes it especially suited for installations where space is limited and geometry must be tightly managed - the approximate height of 2.2" (without fittings) allows ease of fitment in many modern turbocharger housings. The high-temperature silicone-reinforced Nomex diaphragm and robust aluminium housing ensure reliability under extreme conditions.

Because this is a universal application part - not tailored to a specific vehicle year/make/model/engine - installation will necessitate adaptation of the mounting flange, linkage arm and vacuum/boost routing. It's ideal for tuners, custom turbo builds and motorsport applications where flexibility and performance take priority.

Note: This actuator does not increase your vehicle's OEM rating or guarantee emissions-compliance. Always verify fitment geometry, linkage arm length, boost spring calibration and system compatibility before installation.
