TEIN GSL70-91AS2 Advance Z Coilovers Kit for 08-14 Scion XD/Toyota Yaris-Vitz

Vehicle Fitment

• 2007-2011 Toyota Yaris (NCP91L 2-door & NCP93L 4-door)
• 2008-2014 Scion xD (ZNCP90/ZNCP10)

Fitment Notes

• OEM upper mounts retained--no camber plates needed
• Front drop: 1.1"-2.6" (Yaris); 1.2"-2.6" (xD)
• Rear drop: 1.8"-3.0" (both models)
• Full droop travel retained--manual rebound adjustment required

Features

• Twin-tube dampers with 16-step rebound adjustment
• Corrosion-resistant ZT-coated threaded sleeves
• Cold-formed SAE-9254 spring steel, sag-free performance
• Progressive rate springs: Front 224 lb/in, Rear 174 lb/in
• Includes bump stops; OEM mounts and hardware compatible
• Durable dust boots, powder-coated finish
• Balanced street-tuned ride and handling profile
• 1-year limited structural warranty via TEIN

Specifications

• Part Number: GSL70-91AS2
• Drop Range: Front -1.1" to -2.6" (Yaris); -1.2" to -2.6" (xD); Rear -1.8" to -3.0"
• Spring Rates: 224 lb/in (Front); 174 lb/in (Rear)
• Adjustment: 16 damping steps per corner; ride height adjustable via lower perch
• Mounting: Uses OEM upper mounts; no modifications required
• Warranty: 1 year structural

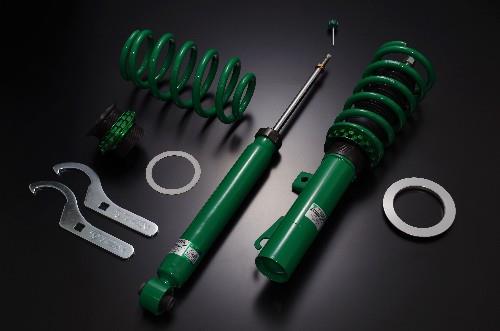

Included Components

• 2x front coilovers with springs & dust boots
• 2x rear coilovers with springs & dust boots
• 4x bump stops; adjustment spanner tool
• All mounting hardware and installation guide

Product Description

The TEIN Street Advance Z coilover kit GSL70-91AS2 offers fully adjustable suspension for 2007-2011 Toyota Yaris (2- and 4-door) and 2008-2014 Scion xD. Drivers can dial in a front drop of 1.1"-2.6" (Yaris) or 1.2"-2.6" (xD), and a rear drop of 1.8"-3.0", allowing for a tailored stance and handling balance.

Featuring twin-tube dampers with 16-step adjustment and cold-formed progressive springs, these coilovers provide a firm yet compliant ride. The ZT-coated sleeves resist corrosion, and OEM mounts are retained for a simple bolt-on install. Whether you're looking to lower your ride or improve handling dynamics, this kit delivers reliable street performance backed by TEIN's 1-year warranty.
