Synergy Mfg 8682-01 Front Brake Line Relocation Brackets for 11-23 Ford F-250

Vehicle Fitment

• 2011-2023 Ford F-250 Super Duty (6.2L V8 Gas / 6.7L Power Stroke Diesel / 6.4L V8 Gas), 4WD
• 2011-2023 Ford F-350 Super Duty (6.2L V8 Gas / 6.7L Power Stroke Diesel / 6.4L V8 Gas), 4WD

Fitment Notes

• 4WD models only - not applicable to 2WD F-250 or F-350
• Highly recommended when installing any lift or leveling kit up to 2.5" on 2011+ Ford Super Duty 4WD
• Allows the suspension to safely run a shock with an extended length of up to 24"
• Factory brake lines and ABS clips are retained - no brake system bleeding required
• Included as a component in the Synergy Leveling Kits (e.g., 8650-12, 8650-22); do not purchase separately if ordering one of those kits
• Sold as a pair (driver and passenger side)

Features

• Raises factory brake line bracket by 2.5" to prevent brake line overextension on lifted/leveled trucks
• Laser cut and zinc plated for precision fitment and long-term corrosion resistance
• Retains factory brake lines, ABS sensor clips, and all associated hardware - no brake system modification required
• Eliminates risk of brake hose damage from overextension during full suspension droop
• 100% bolt-on installation - no drilling, welding, or cutting required
• All mounting hardware included for a complete installation
• Backed by Synergy Manufacturing Limited Lifetime Warranty

Specifications

• Part Number: 8682-01
• GTIN: 887753143242
• Bracket Raise Height: 2.5"
• Material: Steel
• Finish: Zinc plated
• Max Compatible Shock Extended Length: 24"
• Installation: 100% bolt-on (M8 screws + 5/16" hardware, torque M8 to 13 ft-lbs)
• Quantity: Sold as a pair (driver and passenger side)
• Weight: 1 lb
• Drivetrain: 4WD only
• Country of Origin: USA
• Warranty: Limited Lifetime

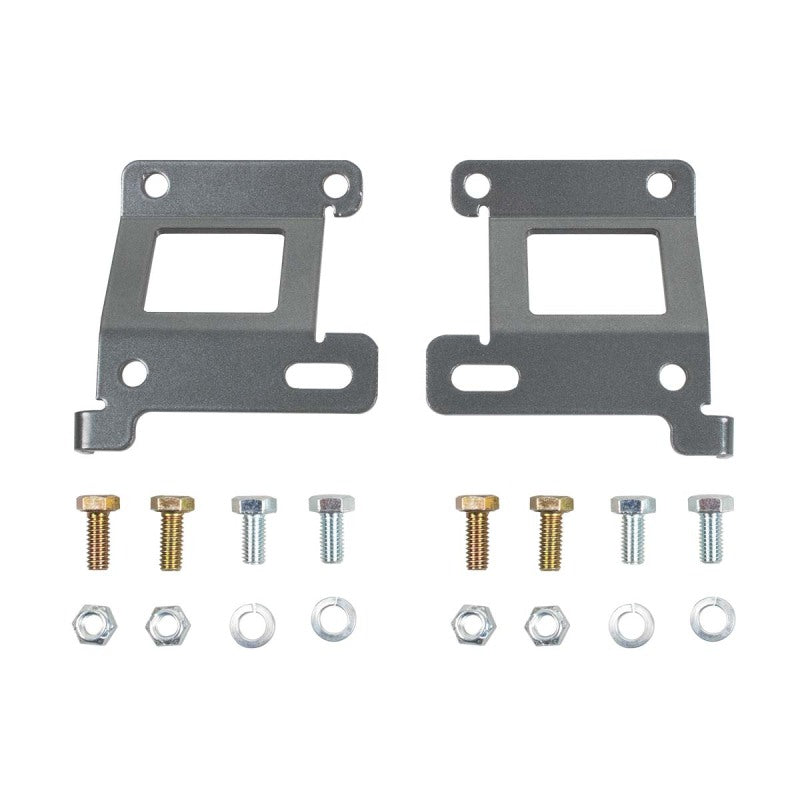

Included Components

• 1x Driver Side Front Brake Line Relocation Bracket (zinc plated steel)
• 1x Passenger Side Front Brake Line Relocation Bracket (zinc plated steel)
• 1x Hardware Kit (M8 screw, M8 lock washer, 5/16" screw and nut)
• 1x Installation Instructions

Product Description

The Synergy Manufacturing 8682-01 is a pair of front brake line relocation brackets for 2011-2023 Ford F-250 and F-350 Super Duty 4WD trucks. When a leveling kit or suspension lift is installed on these trucks, the increased suspension droop can overextend the factory front brake hoses, creating a risk of hose damage or brake system failure under full articulation. Synergy's relocation brackets raise the factory brake line bracket by 2.5", repositioning the hose attachment point higher on the knuckle and providing enough slack to accommodate a shock with an extended length of up to 24" without stressing the hose.

A key advantage of this design is that the factory brake lines and ABS sensor clips are fully retained - the brackets mount to the existing hardware locations and the factory hose slides into the repositioned bracket without any splicing, replacement, or bleeding of the brake system. The installation procedure from Synergy's own instructions specifies pulling 1/2" to 3/4" of brake hose through the factory bracket toward the caliper before securing, then verifying lock-to-lock steering clearance at full droop. Brackets are laser cut and zinc plated for corrosion resistance, with M8 mounting hardware torqued to 13 ft-lbs. The 8682-01 is also included as a standard component in Synergy's Ford Super Duty leveling kits - confirm before ordering separately if purchasing a complete kit.
