Snow Performance SNO-40012 3 Quart Water Methanol Reservoir Trunk Remote Mount

Vehicle Fitment

• Universal - compatible with all Snow Performance Boost Cooler water-methanol injection systems using 1/4" high-temp nylon tubing (quick-connect fittings)
• Designed for trunk, remote, or underhood mounting in any vehicle where additional WMI fluid capacity is needed
• For braided line (4AN SS) Boost Cooler systems, see SNO-40012-BRD instead
• Snow Performance strongly recommends installing the Solenoid Upgrade (SNO-40060) when relocating the reservoir to the trunk or any remote location, to prevent gravity feeding of fluid when the system is inactive

Features

• 3-quart (approximately 2.85 liter) plastic reservoir provides significantly more on-board WMI fluid volume than the standard 2-quart tank included with most Snow Performance Boost Cooler kits - ideal for road racing, high duty cycle, or high-horsepower applications that consume fluid rapidly
• Compact form factor (10" L x 6.5" H x 4" W) fits easily in most trunk, storage, or underhood locations without occupying excessive space
• Includes mounting tabs for secure installation without requiring a separate bracket fabrication
• Includes rubber insulators for vibration isolation and noise reduction in mounted position
• Includes quick-connect fittings and extra tubing for a complete, no-cut-required connection to existing Snow Performance nylon line WMI systems
• Straightforward upgrade path for owners of any Snow Performance Boost Cooler kit looking to increase their WMI fluid range without a major system overhaul
• Level sensor port available - requires drilling tank at desired location to install optional level sensor (sold separately); tank should be drilled with a stepped bit and sealed appropriately

Specifications

• Capacity: 3 quarts (~2.85 liters)
• Material: Plastic
• Color: Black
• Dimensions: 10" L x 6.5" H x 4" W
• Mounting Style: Trunk / remote mount with included tabs
• Compatible Line Type: 1/4" high-temp nylon tubing (quick-connect fittings) - for 4AN SS braided line systems, use SNO-40012-BRD
• Level Sensor: Not pre-installed; requires drilling for optional SNO-19110 level sensor (sold separately)
• UPC: 653374976992
• Application: Universal

Included Components

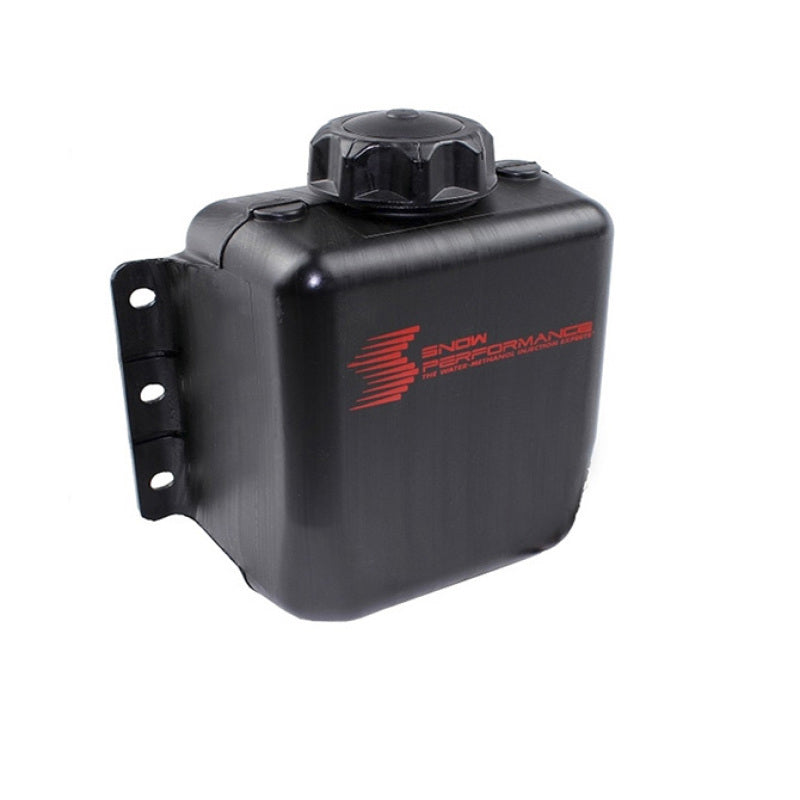

• 1x 3-quart black plastic WMI reservoir with mounting tabs
• Rubber insulators for vibration isolation
• Quick-connect fittings for 1/4" nylon line connection
• Extra tubing
• Note: Solenoid Upgrade (SNO-40060) is strongly recommended for trunk/remote-mount installations and is sold separately
• Note: Level sensor (SNO-19110) is sold separately and requires drilling the tank for installation

Product Description

The Snow Performance SNO-40012 is a 3-quart plastic water/methanol injection reservoir upgrade designed for trunk, cargo area, or remote mounting in any vehicle running a Snow Performance Boost Cooler WMI system with 1/4" high-temp nylon tubing. At 10" L x 6.5" H x 4" W, the tank is compact enough to tuck into most trunks and storage spaces while providing 50% more on-board WMI fluid volume than the standard 2-quart reservoir included with most Boost Cooler kits. For road racing applications, high-horsepower builds with aggressive injection duty cycles, or diesel towing setups where methanol consumption is substantial, the extra capacity translates directly to longer runs between refills and reduced risk of running the system dry mid-event.

The SNO-40012 ships with mounting tabs, rubber insulators for vibration-isolated installation, quick-connect fittings, and extra 1/4" nylon tubing - everything needed to route and connect it to an existing nylon-line Snow Performance system. Snow Performance's installation documentation strongly recommends adding the Solenoid Upgrade (SNO-40060, sold separately) to any rear-mount or remote reservoir setup, to prevent the system from gravity-feeding fluid through the lines and into the engine when the injection system is off - an important safety precaution. An optional level sensor (SNO-19110, sold separately) can be added by drilling the tank at the desired fill level with a stepped bit and sealing appropriately. For builds using 4AN stainless braided line Boost Cooler systems, the equivalent kit with braided line and solenoid pre-included is the SNO-40012-BRD.
