Skunk2 307-05-9055 Ultra Series 3.5L Race Intake Manifold for B-Series VTE

Vehicle Fitment

• 1992-1993 Acura Integra GS-R (1.7 L B17A1)
• 1994-2001 Acura Integra GS-R / Type R (1.8 L B18C1/B18C5)
• 1999-2000 Honda Civic Si (1.6 L B16A)
• 1994-1997 Honda Del Sol VTEC (1.6 L B16A)

Features

• Ultra Series multi-piece intake manifold designed for maximum airflow
• Modular 3-piece design with removable plenum for porting and custom tuning

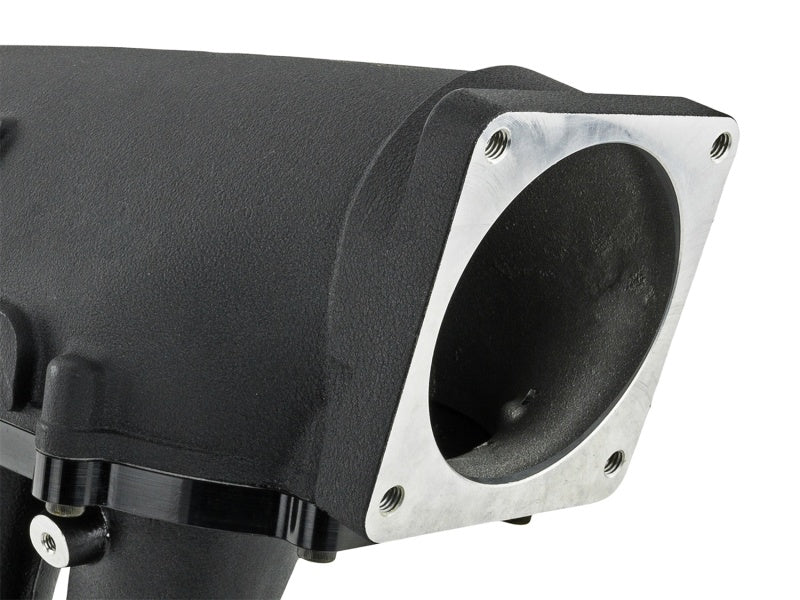

• Large 90 mm throttle body flange (standard 5.0 L Ford bolt pattern)
• 6.5" tilted & tapered high-velocity runners for improved airflow dynamics
• Raised 87 mm velocity stacks for enhanced volumetric efficiency
• High-grade mounting hardware included
• Provisions for secondary fuel rail and additional injector support
• Several accessory ports: 4x1/8" NPT, 2x1/4" NPT, and 1xOEM AIT port

Specifications

• Material: High-grade 356 aluminum alloy with CNC-machined surfaces
• Plenum Volume: 3.5 L (race configuration)
• Throttle Body Flange: 90 mm (Ford 5.0 L bolt pattern)
• Velocity Stacks: Raised 87 mm
• Finish: Black powder coat
• Position: Upper intake system
• Fuel Rail: Primary provisions for high-flow rail (sold separately)

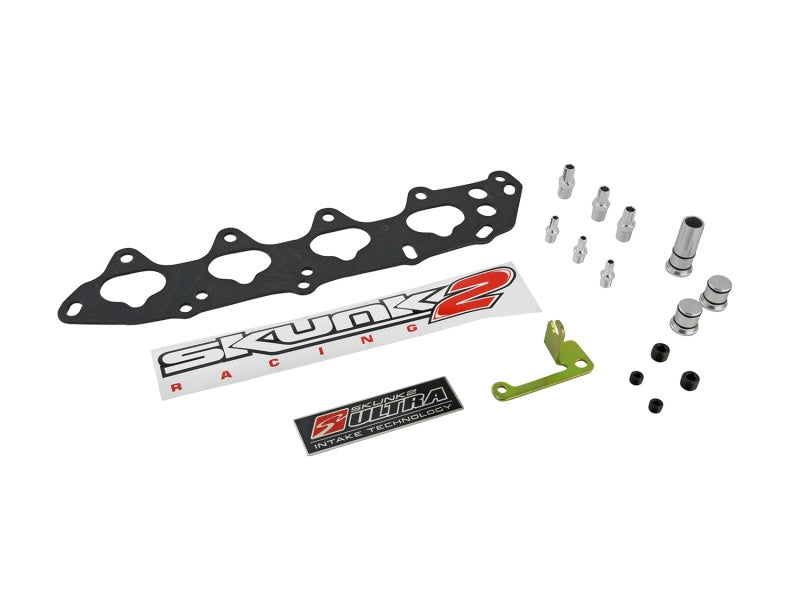

Included Components

• 1x Skunk2 307-05-9055 Ultra Series Intake Manifold
• Thermal intake manifold gasket
• High-grade mounting hardware

Product Description

The Skunk2 307-05-9055 Ultra Series Intake Manifold is a high-performance race intake designed to dramatically improve airflow on Honda B-Series VTEC engines. Featuring a modular 3-piece construction, 3.5 L plenum volume, and 90 mm throttle body flange, this manifold is engineered for builds aimed at significant power increases in naturally aspirated and forced induction setups.

Constructed from high-grade 356 aluminum and CNC-machined for precision, the manifold's tilted and tapered runners with raised 87 mm velocity stacks optimize airflow for high RPM performance. Multiple accessory ports and provisions for secondary fueling make it ideal for advanced tuning and race builds.

This Ultra Series intake manifold is intended for motorsport and high-output applications - not stock street use. Proper installation often requires compatible throttle body hardware and tuning to realize its full potential. Always verify fitment and supporting components before installation.
