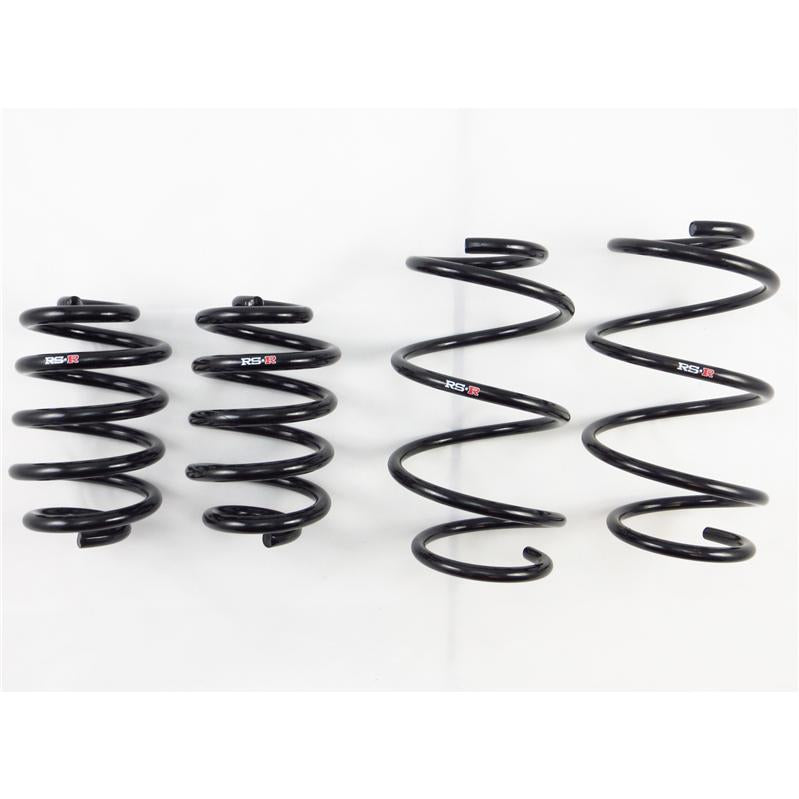

RS-R N315D Down Sus Lowering Springs for 11-17 Nissan Juke AWD NF15 1.6L Turbo

Vehicle Fitment

2011-2017 Nissan Juke AWD/4WD 1.6L Turbo (NF15 chassis)

Fitment Notes

• Fits AWD/4WD models only (NF15 chassis code)
• Compatible with 16GT FOUR trim (JDM designation)
• Does NOT fit FWD Juke models (use RS-R N314D for FWD)
• Designed for use with factory OE shock absorbers
• Progressive spring rate maintains ride quality

Features

• Down Sus series provides mild drop with improved handling
• Engineered specifically for NF15 Juke AWD suspension geometry
• Reduces fender-to-wheel gap for aggressive stance
• Lowers center of gravity for improved cornering response
• Reduces body roll during spirited driving
• Precision-wound from high-tensile Japanese steel
• Retains comfortable ride quality for daily driving
• Vehicle-specific spring rates optimized for Juke AWD platform

Specifications

• Front Drop: 30-35mm (1.2" to 1.4")
• Rear Drop: 25-30mm (1.0" to 1.2")
• Front Spring Rate: 2.87 kg/mm
• Rear Spring Rate: 7.07 kg/mm
• Chassis Code: NF15
• Engine: 1.6L Turbo (MR16DDT)
• Warranty: 3 Years / 36,000 Miles
• Made in Japan

Included Components

• 2 front lowering springs
• 2 rear lowering springs

Product Description

The RS-R N315D Down Sus lowering springs deliver the ideal balance of aggressive stance and daily drivability for 2011-2017 Nissan Juke AWD owners. As Japan's leading aftermarket spring manufacturer, RS-R engineers each application with precise attention to factory suspension geometry, shock damping characteristics, and vehicle-specific weight distribution. The result is a lowering spring that enhances handling without sacrificing ride comfort. The moderate 30-35mm front and 25-30mm rear drop eliminates excessive wheel gap while maintaining proper suspension travel for real-world driving conditions. Progressive spring rates ensure smooth compression under load while providing firm, controlled response during cornering. Professional installation and wheel alignment recommended after installation.
