Ridetech 11534899 Steel Leaf Spring Complete Kit for 1963-1982 Corvette C2/C3

Vehicle Fitment

• 1963-1982 Chevrolet Corvette (C2/C3)

Fitment Notes

• Side shims included to ensure correct fit on both early 2.25" (1963-1978) and late 2.5" (1978-1979) wide leaf spring widths
• This Complete Kit includes bushings and lowering bolt hardware; a leaf-and-shims-only version (SKU 11534898) is available for owners who already have that hardware

Features

• Industry-exclusive 175 lb./in. base spring rate minimizes body roll
• 225 lb./in. rate when overload leafs engage under heavier loads
• 9 total leafs: 6 full-length plus 3 overload leafs
• Epoxy/graphite primer with black topcoat for corrosion resistance
• Includes new Grade 8 hardware to attach the differential
• 9.5" stainless steel bolts and aluminum spacers fine-tune stance (lowers car 1"-2")
• Polyurethane bushings reduce deflection versus stock rubber
• Direct replacement for the factory single-leaf spring

Specifications

• Location: Rear
• Spring rate: 175 lb./in. (base), 225 lb./in. (overload engaged)
• Leaf count: 9 (6 full-length, 3 overload)
• Leaf width compatibility: 2.25" and 2.5"
• Ride height drop: 1"-2" (adjustable via spacers)
• Finish: Epoxy/graphite primer, black topcoat

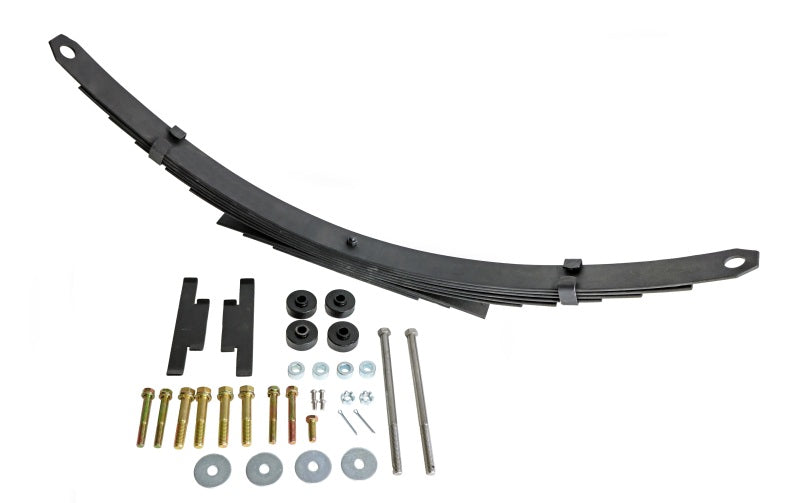

Included Components

• 1x Steel Leaf Spring Assembly (9-leaf)
• Side Shims (for 2.25"/2.5" width fitment)
• Grade 8 Differential Mounting Hardware
• 2x 9.5" Stainless Steel Lowering Bolts
• Polyurethane Bushings
• Aluminum Height-Adjustment Spacers

Product Description

The Ridetech 11534899 Complete Kit replaces the factory single-leaf rear spring on 1963-1982 Corvettes with a 9-leaf steel design rated at 175 lb./in., stepping up to 225 lb./in. once the overload leafs engage. This cuts body roll noticeably while keeping a comfortable ride, and the included side shims handle both leaf spring widths used across the C2/C3 production run.

Unlike the leaf-only version, this kit adds everything needed to also lower the car: stainless steel bolts, polyurethane bushings, and aluminum spacers that set a 1"-2" drop. It's a one-box solution for C2/C3 owners upgrading the rear spring and dialing in stance at the same time.
