Radium Engineering 20-1210 10AN Universal PTFE Hose DIY Kit Black Carbon 14.7ft

Vehicle Fitment

• Universal - no direct OEM vehicle fitment assigned
• Suitable for any custom fuel, oil, brake, transmission, clutch, power steering, or coolant line application requiring 10AN PTFE hose

Fitment Notes

• DIY assembly required - hose ends must be cut to length and assembled by the installer; installation instructions available at radiumauto.com
• PTFE hose ends are specific to PTFE hose and cannot be used with rubber hose
• Carbon-lined hose - static charge dissipating; recommended for high-flow fuel systems where static buildup is a concern
• All hose ends are swiveling type; Radium does not offer additional PTFE hose end sizes or angles beyond those included - third-party PTFE-specific ends may be used if additional configurations are needed
• It is strongly recommended that a pressure test of each completed assembly be performed before use

Features

• Carbon-lined PTFE (fluoropolymer) core dissipates static electricity buildup - critical for high-flow fuel system safety
• Near-zero permeation - will not emit fuel vapors like rubber hose, making it safe for use in confined spaces such as a trunk or enclosed engine bay
• Stainless steel wire braided sleeve over PTFE core with braided PET outer jacket for DIY-style swaged ends
• Outstanding chemical resistance - compatible with all gasoline types, E85, methanol, ethanol, race fuel, oil, brake fluid, power steering fluid, and coolant
• Wide temperature range - rated from -94°F to +480°F (-70°C to +249°C)
• Tested in-house to 1,200 psi; PTFE material rated to 2,500 psi or greater
• Six included hose ends cover the most common routing configurations (straight, 45°, and 90°)
• All hose ends CNC machined aluminum, black Type-II anodized, swiveling for easy final orientation after assembly

Specifications

• Hose Size: 10AN
• Hose ID: 0.51 in. (13mm)
• Hose OD: 0.70 in. (17.8mm)
• Hose Length: 14.7 ft. (4.5 m)
• Hose Construction: Carbon-lined PTFE core, stainless steel wire braid, braided PET outer jacket
• Hose Ends: 6 total - 2x straight, 2x 45°, 2x 90°
• Hose End Material: CNC machined aluminum, black Type-II anodized
• Hose End Type: Swiveling, PTFE-specific
• Pressure Rating: Tested to 1,200 psi (PTFE rated to 2,500 psi+)
• Temperature Range: -94°F to +480°F (-70°C to +249°C)
• Fluid Compatibility: All fuel types incl. E85, methanol, ethanol; oil, brake fluid, power steering fluid, coolant
• Assembly: Required (DIY)
• Fitment: Universal

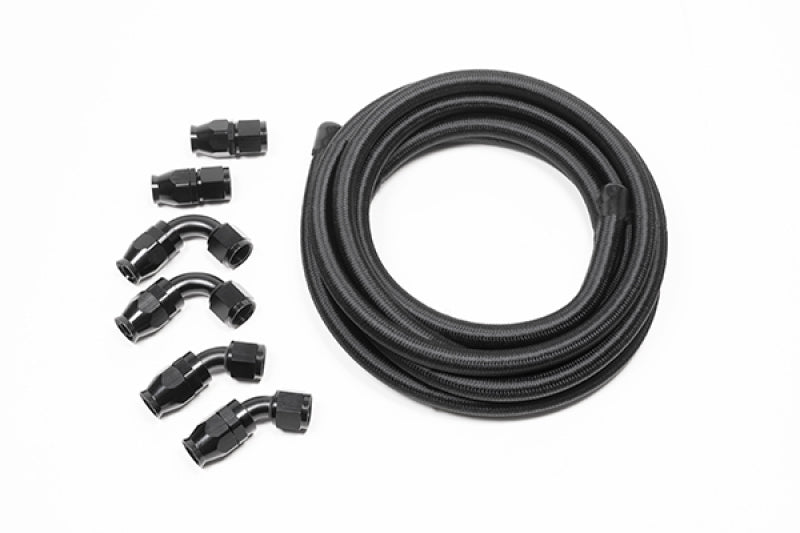

Included Components

• 14.7 ft. (4.5 m) of 10AN carbon-lined PTFE hose
• 2x straight 10AN hose ends (black anodized aluminum)
• 2x 45° 10AN hose ends (black anodized aluminum)
• 2x 90° 10AN hose ends (black anodized aluminum)

Product Description

The Radium Engineering 20-1210 is a 10AN universal DIY PTFE hose kit in the black carbon configuration. It includes 14.7 feet of carbon-lined PTFE hose and six swiveling black anodized hose ends - two straight, two 45-degree, and two 90-degree - covering the most common routing scenarios for custom fuel, oil, and fluid lines. The carbon-lined PTFE core actively dissipates static charge buildup, which is an important safety consideration in high-flow fuel systems where static electricity can accumulate inside the hose. Unlike rubber fuel hose, PTFE has near-zero permeation and will not off-gas fuel vapors, making it suitable for routing through trunks, cabins, or other enclosed areas.

The hose has been in-house tested to 1,200 psi and the PTFE material itself is rated well beyond that, making it suitable for both carbureted and high-pressure EFI applications. It is compatible with all automotive fluids including E85, methanol, ethanol, race gasoline, engine oil, brake fluid, power steering fluid, and coolant. Assembly is required - hose ends are cut to length and swaged by the installer. All hose ends are PTFE-specific swiveling types and cannot be used with rubber hose.
