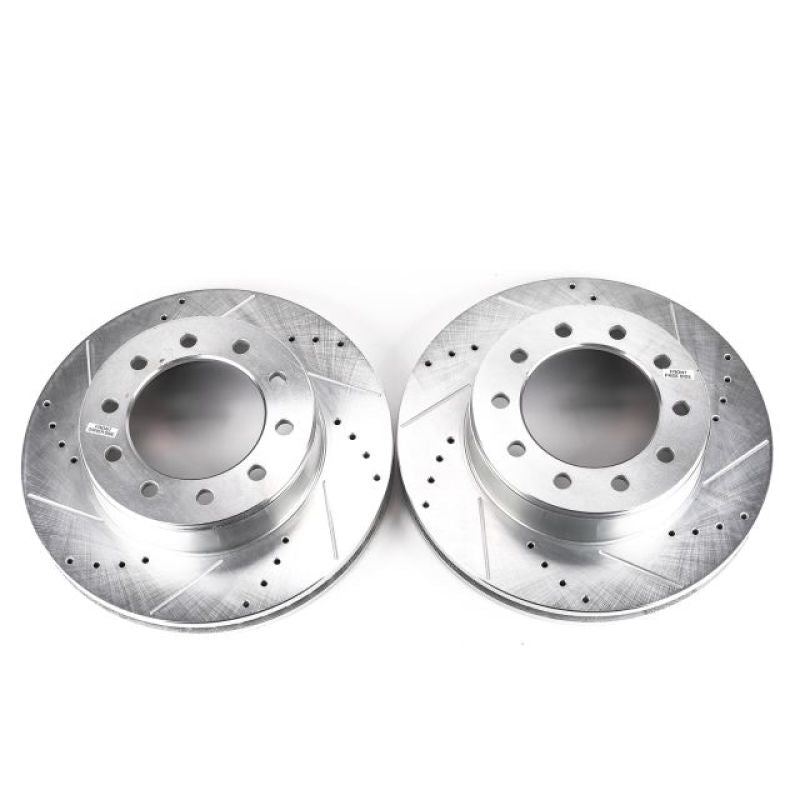

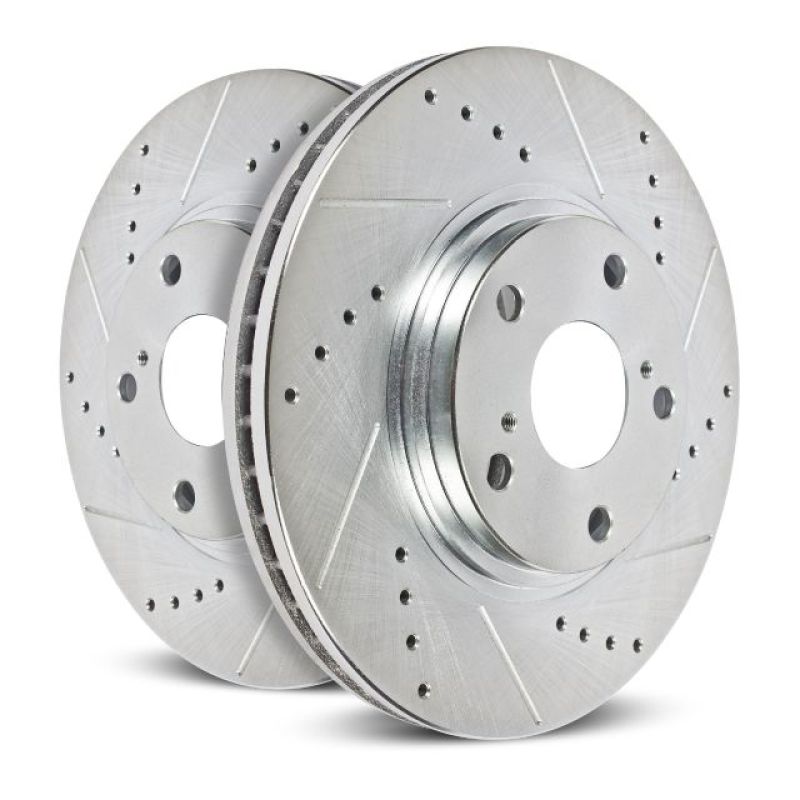

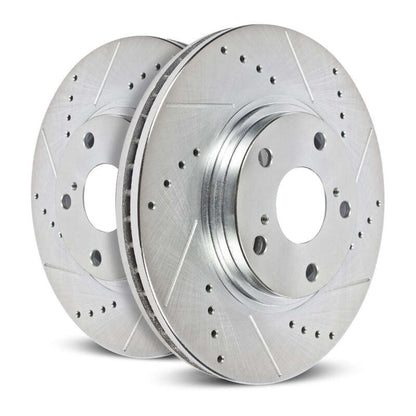

PowerStop AR85113XPR Drilled Slotted Front Rotors for 05-16 Ford F-450/F-550 SD

Vehicle Fitment

• 2005-2016 Ford F-450 Super Duty (All Trims, 6.0L V8 Diesel / 6.4L V8 Diesel / 6.7L V8 Diesel / 6.8L V10 Gas, 2WD/4WD) - Front
• 2005-2016 Ford F-550 Super Duty (All Trims, 6.0L V8 Diesel / 6.4L V8 Diesel / 6.7L V8 Diesel / 6.8L V10 Gas, 2WD/4WD) - Front

Fitment Notes

• This set includes both Front Left (Driver) and Front Right (Passenger) hub-and-rotor assemblies with bearing races. Wheel bearings are NOT included and must be transferred from the original units.
• Zinc dichromate plating covers all platable rotor surfaces. Hub areas with integral wheel bearings are not plated - this is standard for hub-style assemblies.
• Individual rotors are also available: AR85113XL (left) and AR85113XR (right).

Features

• Precision cross-drilled holes maximize heat dissipation under heavy towing, hauling, and commercial duty braking cycles
• Rounded slots continuously sweep away gas, debris, and moisture to maintain consistent pad-to-rotor friction
• Beveled drill holes and rounded slot edges minimize stress cracking under repeated hard stops
• Silver zinc dichromate plating protects all platable surfaces against rust and corrosion
• Manufactured with Tru-Cast technology for precision casting to exact OE dimensional specs
• OE vane count and rotor weight retained for balanced, vibration-free operation
• 100% mill balanced to eliminate NVH at all vehicle speeds
• Direct bolt-on fit - no modifications required; compatible with stock calipers

Specifications

• Part Number: AR85113XPR
• Position: Front Left and Front Right (Pair)
• Rotor Type: Vented Hub-and-Rotor Assembly
• Rotor Surface: Cross-Drilled and Slotted
• Rotor Material: G3000 Grade Cast Iron
• Finish: Silver Zinc Dichromate (plated surfaces; hub bearing area unplated)
• Bearing Races: Included; wheel bearings NOT included
• Lug Pattern: 8-lug
• Drivetrain: 2WD / 4WD

Included Components

• 1x Front Left Drilled & Slotted Hub-and-Rotor Assembly (AR85113XL) with bearing races
• 1x Front Right Drilled & Slotted Hub-and-Rotor Assembly (AR85113XR) with bearing races

Product Description

The PowerStop AR85113XPR is a matched front pair of cross-drilled and slotted hub-and-rotor assemblies designed for 2005-2016 Ford F-450 and F-550 Super Duty trucks. Built for the demands of heavy-duty commercial and towing use, these rotors deliver substantially improved brake cooling over solid-face OE units. The precision drill holes vent heat rapidly, while rounded slots clear gas and debris to keep the pad contact patch clean - reducing fade on long mountain descents or during repeated heavy stops with loaded trailers.

Constructed from G3000 grade cast iron using PowerStop's Tru-Cast technology, each rotor matches OE vane count and weight for a true bolt-on installation. Silver zinc dichromate plating guards against rust on all platable surfaces. Because these are hub-style assemblies, wheel bearings must be transferred from the original rotors during installation - bearing races are included. For balanced braking performance, both the left and right rotors in this set should always be installed together.
