Pedders PED-804010 SportsRyder FE2 Height Spring Kit for 2004-2006 Pontiac GTO

Vehicle Fitment

• 2004-2006 Pontiac GTO (5.7L V8 LS1, RWD)
• 2005-2006 Pontiac GTO (6.0L V8 LS2, RWD)

Fitment Notes

• Front and rear spring kit - sold as a complete set (4 springs total, 2 front and 2 rear).
• Designed for FE2 drag/performance height - raises the rear for improved weight transfer during hard launches while maintaining a performance front stance.
• Not a lowering kit - springs are tuned for drag strip and performance use at FE2 specification height.
• For individual rear FE2 drag spring only, see PED-2589 (sold individually, 2 required per vehicle).
• For X-Drag heavy-duty rear spring application, see PED-7843.

Features

• Complete front and rear FE2 drag height spring kit designed specifically for the Pontiac GTO platform
• Progressive spring rate design for improved weight transfer and rear squat during hard launches
• CNC-wound wire quenched in a moving oil bath for uniform hardness and spring consistency
• Shot-peened and scragged to permanently set ride height and eliminate post-install settling
• Built to ISO 9001 standards with a height tolerance of +/-2mm at loaded height
• Verified to be within +/-1mm of specified ride height at loaded specification
• Red powdercoated finish for corrosion resistance and a performance appearance
• Increased spring rate over stock for improved handling and reduced body roll

Specifications

• Part Number: PED-804010
• UPC: 9341150076424
• Spring Position: Front and Rear (complete kit)
• Spring Type: Coil
• Ride Height: FE2 Drag/Performance Height
• Spring Rate: Progressive
• Finish: Red powdercoated
• Height Tolerance: +/-2mm at loaded height (ISO 9001)
• Bushings Included: No
• Quantity: Sold as a kit (4 springs - 2 front, 2 rear)
• Brand: Pedders Suspension

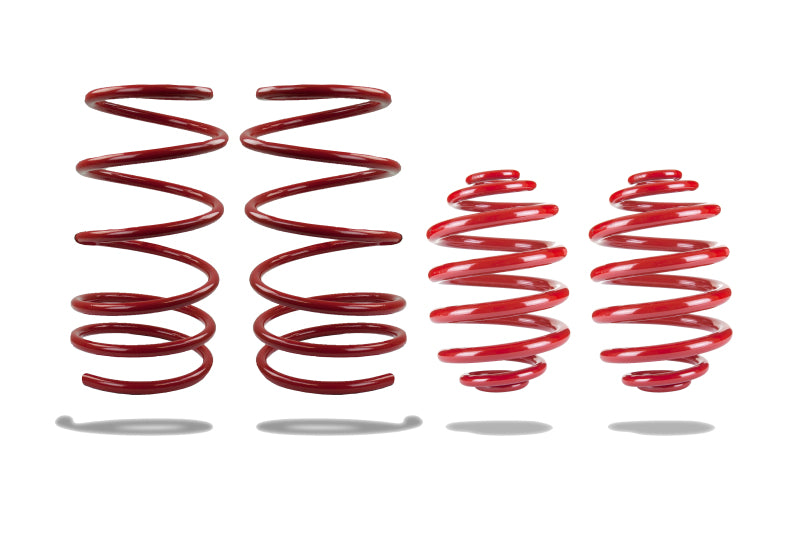

Included Components

• 2x Front SportsRyder FE2 Height Coil Springs
• 2x Rear SportsRyder FE2 Height Coil Springs

Product Description

The Pedders PED-804010 SportsRyder FE2 Height Spring Kit is a complete front and rear coil spring package engineered specifically for the 2004-2006 Pontiac GTO. Unlike lowering springs, the FE2 spec raises the rear ride height to promote rearward weight transfer and improved squat during hard drag launches, while the front springs are tuned to complement this stance for a balanced performance setup. The progressive spring rate stiffens progressively under load for maximum traction at launch.

Each spring is CNC-wound, oil-bath quenched, shot-peened, and scragged to permanently set ride height - eliminating post-install settling. Built to ISO 9001 standards with a height tolerance of +/-2mm at loaded specification, these are direct drop-in replacements requiring no modifications. Shocks and struts are sold separately.
