Ohlins BMS MI40S1 DFV Road & Track Coilovers for 07-13 BMW M3 E90/E91/E92/E93

Vehicle Fitment

• 2007-2013 BMW M3 Sedan (E90), RWD
• 2007-2013 BMW M3 Touring (E91), RWD
• 2007-2013 BMW M3 Coupe (E92), RWD
• 2007-2013 BMW M3 Convertible (E93), RWD

Fitment Notes

• Uses OEM top mounts -- original mounts must be reused
• EDC cancellation kit 35020-04 required separately for EDC-equipped vehicles
• TUV certified

Features

• DFV (Dual Flow Valve) patented damping technology
• Single-knob compression and rebound adjustment
• Inverted front strut (upside-down McPherson)
• Independent ride height and spring preload adjusters -- front and rear
• Divorced rear spring -- shock length independently adjustable
• Fully rebuildable
• ISO 9227 corrosion salt spray tested
• 2-year limited warranty

Specifications

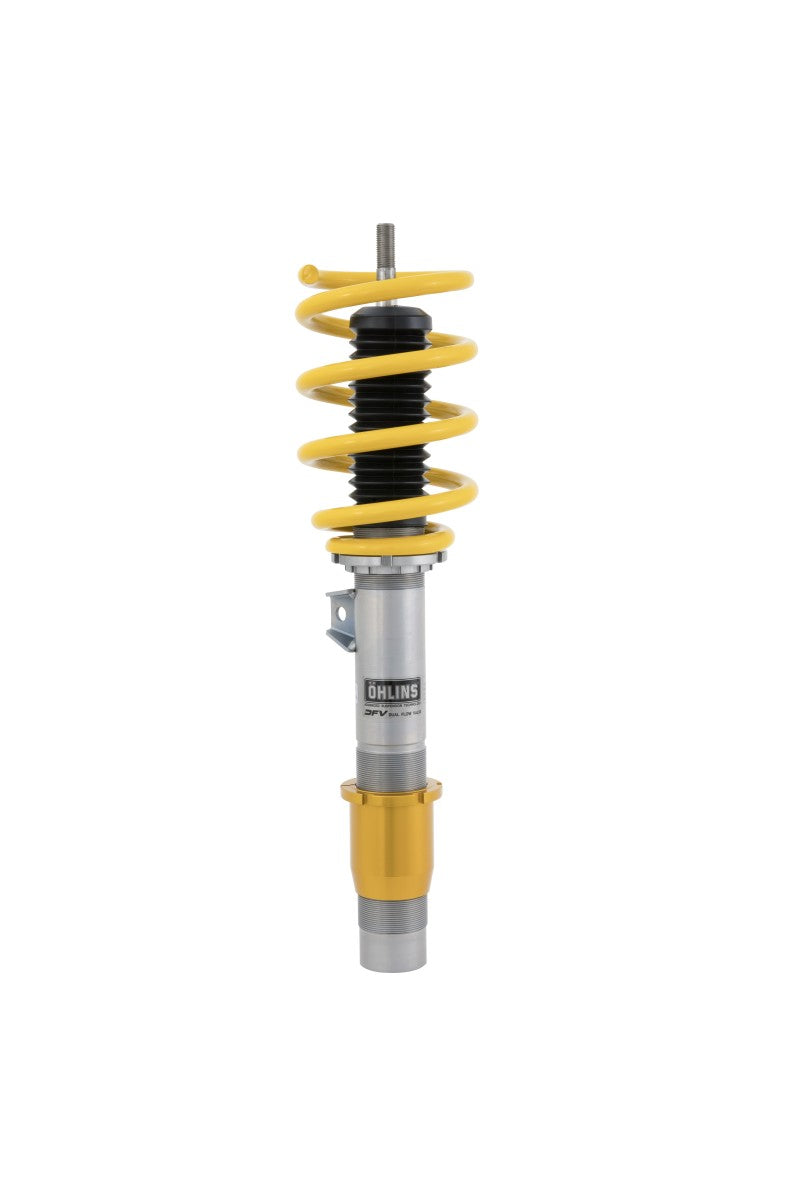

• Front type: Inverted McPherson strut
• Front spring rate: 60 N/mm
• Front ride height reduction: 5-35mm below OE

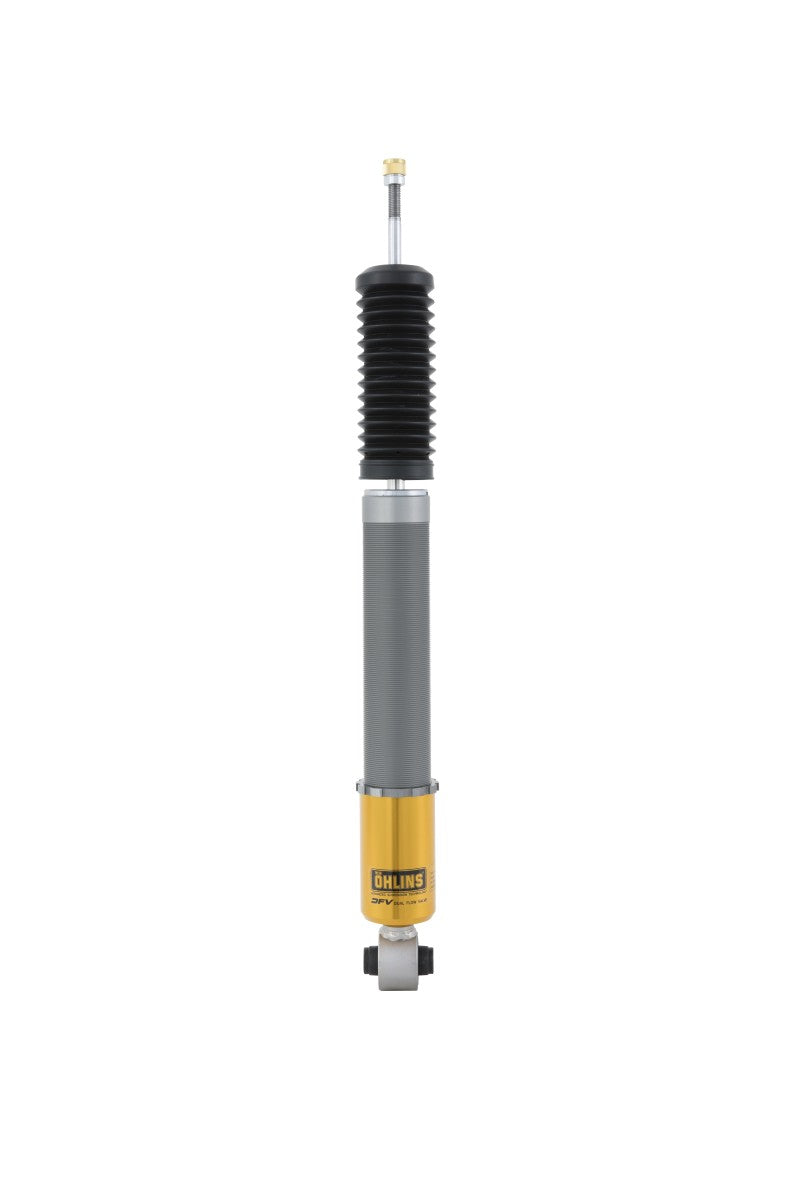

• Rear type: Conventional shock, divorced spring
• Rear spring rate: 120 N/mm
• Rear ride height reduction: 5-35mm below OE
• Damping adjustment: Single knob (compression + rebound)
• Top mounts: OEM mounts required

Included Components

• 2x Front inverted struts with springs and mounting hardware
• 2x Rear shock absorbers with springs and mounting hardware
• 1x C-Spanner (spring preload tool)
• 1x Owner's manual and mounting instruction
• 1x Sticker set

Product Description

The Ohlins BMS MI40S1 is a Road & Track coilover system built specifically for the 2007-2013 BMW M3 (E9x) across all body styles -- Sedan (E90), Touring (E91), Coupe (E92), and Convertible (E93). The front uses an inverted McPherson strut with independent ride height and spring preload adjusters and a 60 N/mm spring rate. The rear runs a conventional shock with a divorced spring setup allowing independent shock length and spring preload adjustment at 120 N/mm. Both axles use Ohlins' patented DFV single-knob adjuster for simultaneous compression and rebound control. OEM top mounts are retained at both ends, and ride height is adjustable 5-35mm below OE at both axles.

Vehicles equipped with optional factory EDC (Electronic Damper Control) require the separate Ohlins cancellation kit 35020-04 to suppress dash warning lights after installation. The kit is TUV certified, fully rebuildable, ISO 9227 corrosion tested, and backed by Ohlins' 2-year limited warranty.
