Ohlins MAS MI30S1 Road & Track DFV Monotube Coilover System 2006-2015 Mazda MX-5

Vehicle Fitment

• 2005-2015 Mazda Miata / MX-5 (NC generation, all trims)

Fitment Notes

• Ohlins spherical bearing front upper mounts are included - OE front top mounts are not used with this kit
• Rear upper mounts are not included - the original OE rear top mounts must be reused; confirm they are in serviceable condition before installation
• Target ride height is approximately 35mm lower than OE with the recommended setup; the adjustable range spans approximately 10-40mm lower than standard depending on spring preload and ride height collar position
• Dampers are fully rebuildable and can be revalved or supplied with alternative spring rates through an authorized Ohlins service center
• DOT and TUV certified - compliant with European and US road use homologation requirements
• Professional installation recommended; C-spanner, mounting instructions, and owner's manual are included
• Sold as a complete coilover kit - springs, spherical front mounts, mounting hardware, and accessories included

Features

• Patented Dual Flow Valve (DFV) technology - exclusive to Ohlins Road & Track; provides matched damping characteristics on both compression and rebound strokes, allowing the tire to return to the road surface faster after any input for improved grip, traction, and cornering response
• Single-knob damping adjustment simultaneously changes all four damping parameters - high-speed compression, low-speed compression, high-speed rebound, and low-speed rebound - allowing rapid mode switching between road comfort and track stiffness
• 20+ click individual damping adjustment range per damper for precise, corner-by-corner tuning of suspension response and handling balance
• Monotube damper architecture delivers faster thermal management, more consistent damping under repeated inputs, and greater sensitivity at low shaft speeds compared to twin-tube designs
• Ohlins spherical bearing front upper mounts - included with the kit - replace OE rubber mounts for sharper steering response, reduced compliance steer, and more consistent camber behavior under load
• Separate front spring preload and ride height adjusters allow independent setting of spring tension and ride height for more precise corner balancing
• Application-specific spring rates (70 N/mm front / 40 N/mm rear) tuned specifically for the NC Miata platform's weight distribution and suspension geometry - rear rate reflects the NC's longer wheelbase and softer rear compliance target versus the NA/NB
• Fully rebuildable design allows revalving and servicing at an Ohlins authorized service center to maintain performance or adapt damping characteristics for different applications
• DOT and TUV approved and corrosion-tested to ISO 9227 for long-term durability in road and track environments
• Backed by Ohlins' worldwide 2-year limited warranty

Specifications

• Part Number: MAS MI30S1
• Series: Ohlins Road & Track (R&T)
• Technology: Patented DFV (Dual Flow Valve)
• Damper Design: Monotube - Fully Rebuildable
• Damping Adjustment: 20+ Click, Individually Adjustable Per Corner
• Adjustment Type: Single-Knob - Adjusts All 4 Damping Parameters Simultaneously
• Front Ride Height Adjustment: Separate Spring Preload and Ride Height Adjusters
• Rear Ride Height Adjustment: Separate Spring Preload and Ride Height Adjusters; Shock Length Adjustable
• Target Ride Height: ~35mm Lower Than OE (Recommended Setup); Adjustable Range ~10-40mm Below Standard
• Front Spring Rate: 70 N/mm (7 kg/mm)
• Rear Spring Rate: 40 N/mm (4 kg/mm)
• Front Upper Mounts: Ohlins Spherical Bearing Mounts - Included
• Rear Upper Mounts: OE Mounts Required - not included
• Homologation: DOT and TUV Approved
• Corrosion Testing: ISO 9227
• Warranty: 2-Year Worldwide Limited
• Sold As: Complete coilover kit with springs, spherical front mounts, and mounting hardware

Included Components

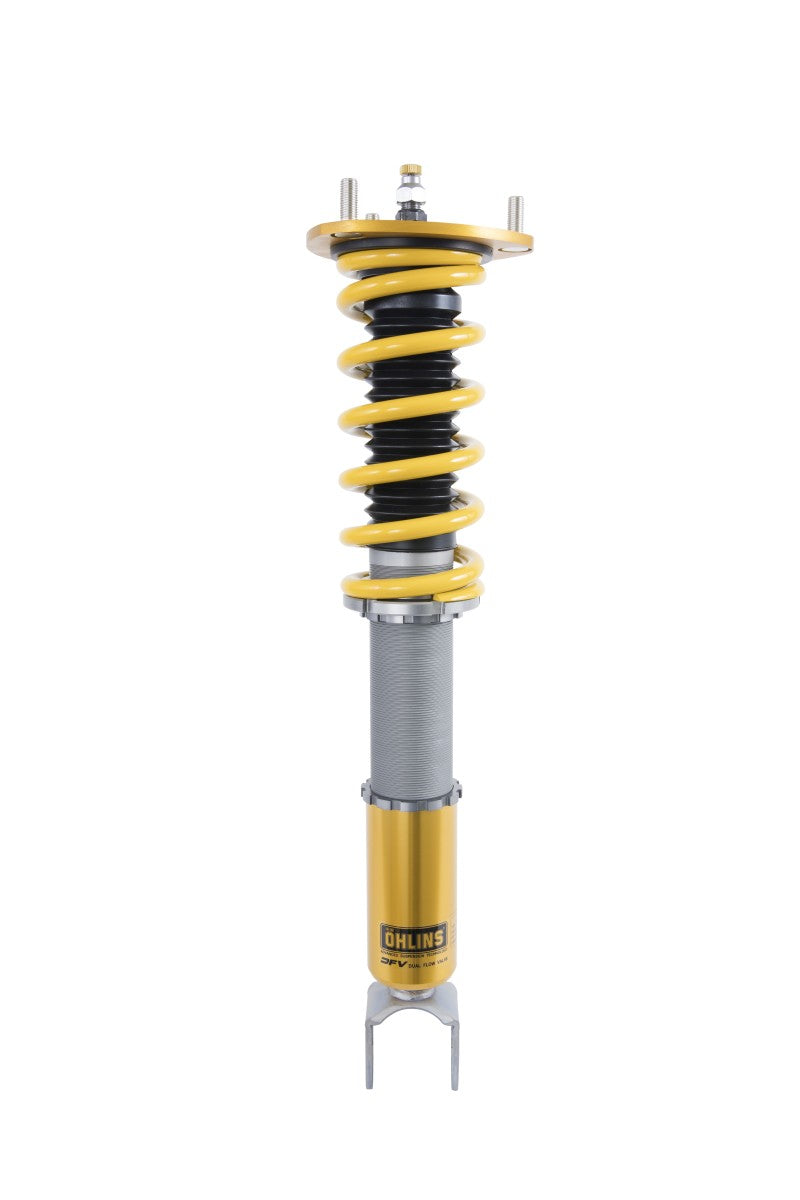

• 2x Front Monotube Strut Assemblies with Springs

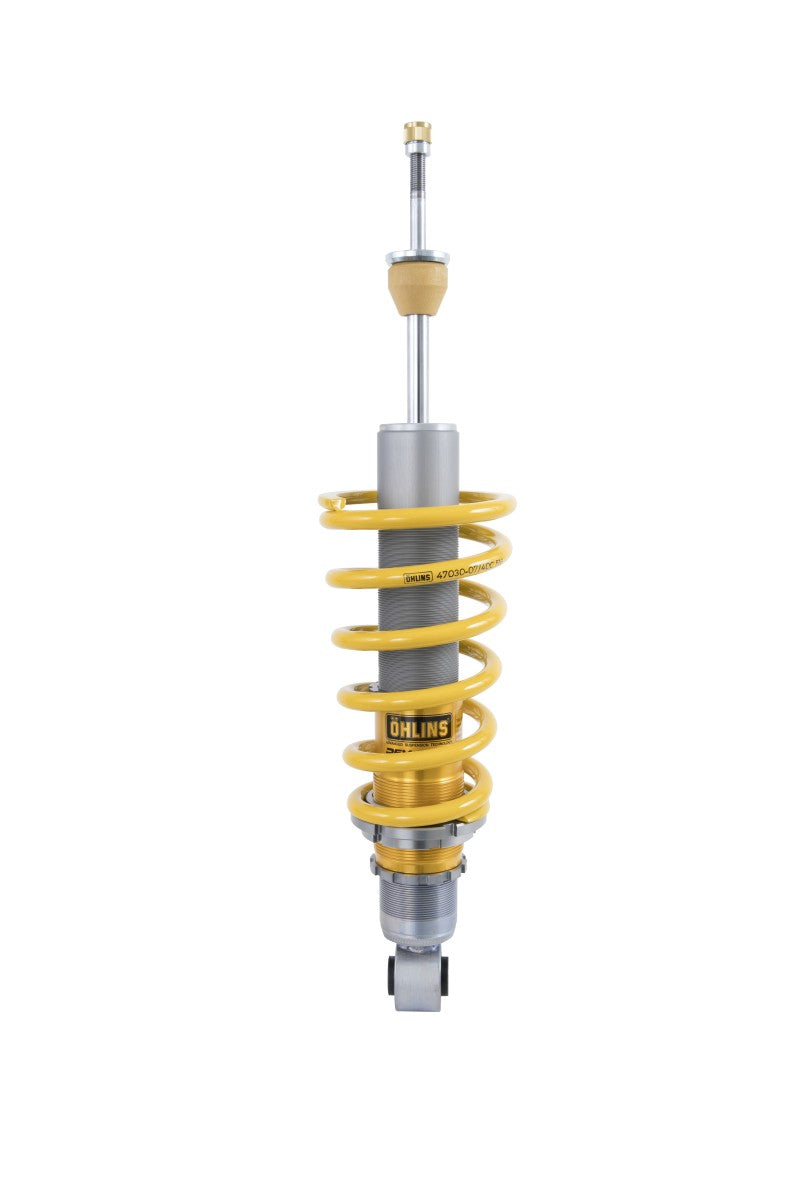

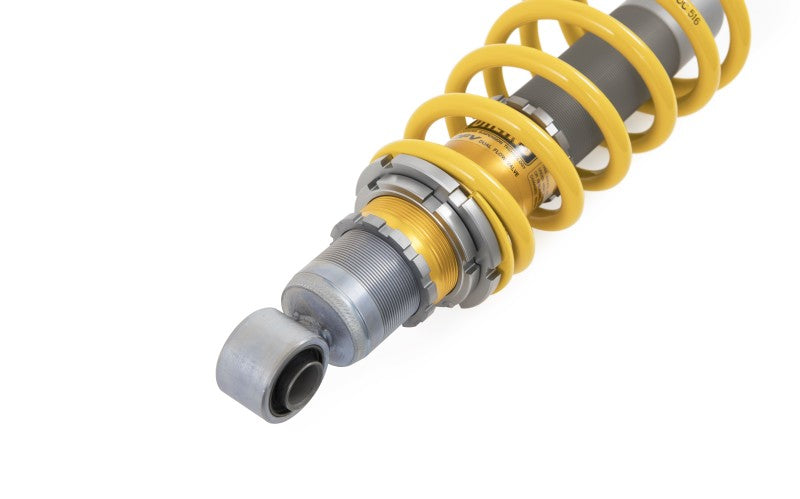

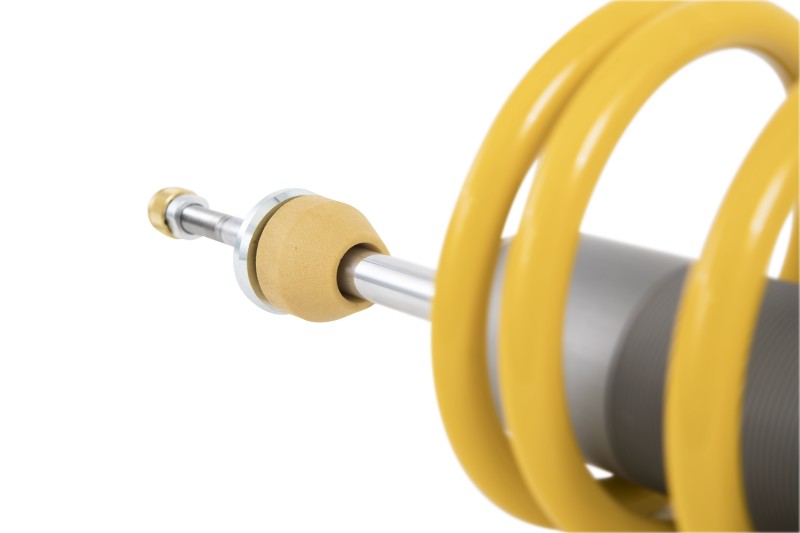

• 2x Rear Monotube Shock Assemblies with Springs

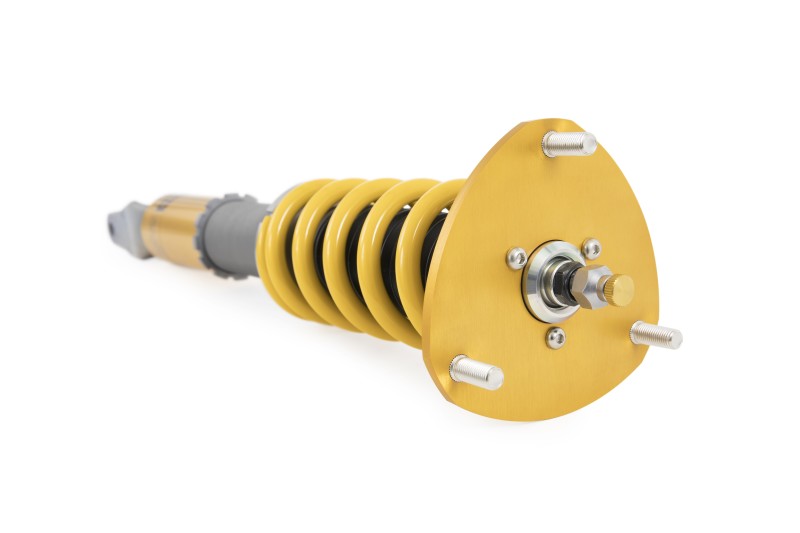

• 2x Front Ohlins Spherical Bearing Upper Mounts
• Mounting Hardware Kit
• C-Spanner (for spring preload adjustment)
• Owner's Manual
• Mounting Instructions
• Ohlins Sticker Set

Product Description

The Ohlins MAS MI30S1 is a complete Road & Track coilover suspension system engineered specifically for the 2005-2015 Mazda Miata / MX-5 NC generation. The system centers on Ohlins' patented Dual Flow Valve (DFV) technology, which provides matched damper fluid flow characteristics on both compression and rebound strokes - allowing the tire to return to the road surface faster after each input for sharper lateral grip, better cornering balance, and a more planted feel at the limit. Application-specific spring rates of 70 N/mm front and 40 N/mm rear are tuned to the NC Miata's geometry and weight distribution, with the softer rear rate reflecting the NC's longer wheelbase and suspension compliance targets.

The front struts include Ohlins spherical bearing upper mounts that replace the OE rubber mounts entirely, delivering sharper steering response and more consistent camber behavior under cornering load. The rear units use the vehicle's original OE top mounts. Both front and rear feature independent spring preload and ride height adjustment - with the rear also offering shock length adjustment - targeting approximately 35mm of lowering below OE with the recommended setup, across an adjustable range of roughly 10-40mm. Damping is adjustable across 20+ clicks per corner via a single gold knob that simultaneously sets all four damping parameters. The monotube dampers are fully rebuildable and can be revalved or fitted with alternative spring rates through an Ohlins authorized service center. DOT and TUV approved; backed by a 2-year worldwide limited warranty.
