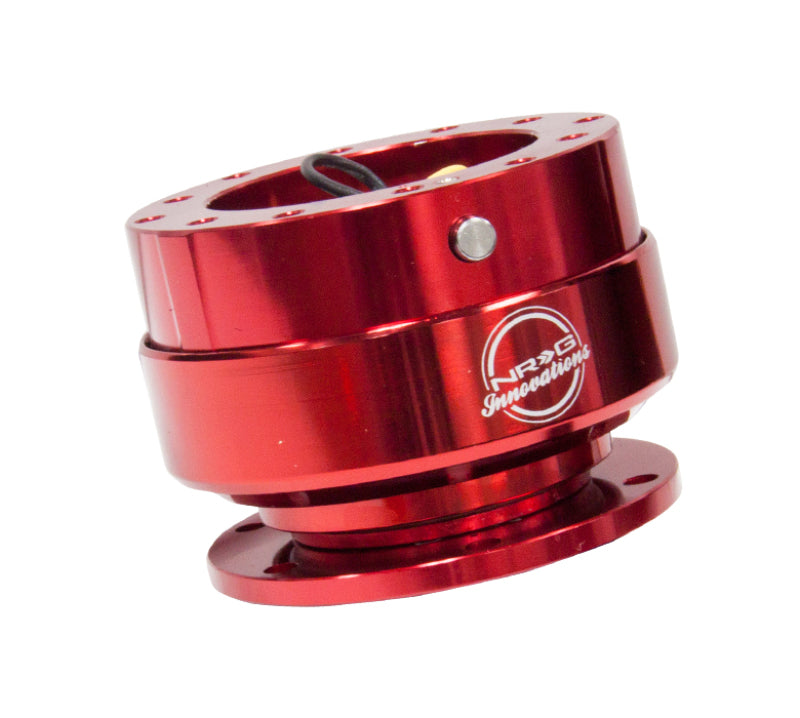

NRG SRK-200RD Gen 2.0 Steering Wheel Quick Release Red Body Red Ring Universal

Vehicle Fitment

• Universal Fitment - Compatible with any vehicle using a standard 6-bolt 70mm aftermarket steering wheel hub adapter and any 6-bolt aftermarket steering wheel (6x70mm or 6x74mm bolt pattern)

Fitment Notes

• This is a universal quick release - a vehicle-specific short hub adapter with a 6-bolt 70mm bolt pattern is required for installation and is sold separately
• Compatible with aftermarket steering wheels using the 6x70mm or 6x74mm bolt pattern, including wheels from NRG, Nardi, MOMO, Sparco, Vertex, and other brands using the standard 6-bolt pattern
• Not compatible with OEM steering columns without a vehicle-specific hub adapter
• Not compatible with the NRG Thin Quick Release system or NRG Quick Tilt system
• Horn wires are included and connect/disconnect automatically each time the steering wheel is installed or removed
• A separate horn button is required if using this quick release without a horn-wired aftermarket steering wheel
• Full aircraft-grade aluminum construction - no plastic harness inserts

Features

• Generation 2.0 ball-lock quick release mechanism - NRG's best-selling quick release series, engineered with capabilities not found in conventional ball-locking systems
• Raised contact sections on the hub interface prevent scratching and stretching of the hub adapter's anodized finish during repeated steering wheel swaps
• Self-locking safety mechanism engages automatically upon steering wheel installation, providing a critical secondary retention layer beyond the ball-lock to prevent accidental disengagement while driving
• Audible "ding" confirmation sound on full lock engagement delivers clear audio and tactile feedback confirming secure installation on every wheel swap
• Dual spring self-indexing design ensures the steering wheel returns to the same consistent, repeatable indexed position every time it is reinstalled
• CNC machined from aircraft-grade 6061 aluminum with no plastic inserts - full metal construction for maximum structural integrity under performance and racing loads
• Full red colorway - anodized red body matched with an anodized red pull ring - delivering an aggressive, high-contrast appearance that stands out against any interior
• Pinless pull-to-release mechanism - a single pull on the red ring disengages the ball-lock and frees the steering wheel cleanly and instantly
• Integrated 2.5 in. horn wiring connects and disconnects automatically with each steering wheel installation and removal - no manual reconnection required
• 6x70mm / 6x74mm dual bolt pattern on the steering wheel face covers the full range of standard aftermarket steering wheel brands
• All mounting hardware included - ready to install straight out of the box

Specifications

• Part Number: SRK-200RD
• Generation: 2.0
• Material: Aircraft-grade 6061 aluminum, anodized - no plastic inserts
• Body Finish: Red anodized
• Ring Finish: Red anodized
• Release Style: Pinless-type, pull to release
• Height: 2.5 in.
• Steering Wheel Bolt Pattern: 6 x 70mm / 6 x 74mm
• Hub Adapter Bolt Pattern: 6 x 70mm
• Shaft Attachment Style: Bolt-on
• Horn Wires: Included (2.5 in. leads)
• Audible Lock Confirmation: Yes ("ding" sound on engagement)
• Hardware: All mounting hardware included
• Quantity: Sold individually (1x unit)

Included Components

• 1x NRG Gen 2.0 Quick Release Hub (SRK-200RD) - Red Body / Red Ring
• 1x Horn wiring harness with connectors (2.5 in.)
• 1x Mounting hardware set

Product Description

The NRG SRK-200RD is the Red Body / Red Ring variant of NRG's Generation 2.0 quick release - the brand's best-selling quick release series and the core of the NRG aftermarket steering wheel system. The Gen 2.0 installs between the vehicle-specific short hub adapter and the aftermarket steering wheel, enabling tool-free steering wheel removal and reinstallation in a single motion. A pull of the red anodized release ring disengages the internal ball-lock and frees the wheel immediately. Raised sections machined into the hub contact surface protect the anodized finish of both the quick release body and the hub adapter from scratching during repeated wheel swaps - a precision engineering feature that significantly extends the service life of the entire steering wheel assembly.

The SRK-200RD is machined entirely from aircraft-grade 6061 aluminum with no plastic harness inserts, ensuring the structural integrity of the assembly holds up under the demands of performance driving and competitive motorsport. The self-locking mechanism engages the moment the wheel seats fully into position, adding automatic secondary retention. The audible "ding" confirms full lock engagement - a particularly valuable confirmation when wearing driving gloves or working in a race environment where tactile feedback matters. NRG's dual spring self-indexing system returns the wheel to the same repeatable position every time it is installed, maintaining consistent steering geometry across every driving session. Integrated 2.5 in. horn wiring connects and disconnects automatically with the steering wheel with no additional steps required.

The full-red colorway - matching anodized red body and red pull ring - makes the SRK-200RD one of the most visually striking options in the Gen 2.0 lineup. It pairs naturally with red-themed interiors, JDM sport builds, Italian-inspired cockpits, and track cars where aggressive interior styling is part of the build identity. The 6x70mm / 6x74mm steering wheel side bolt pattern covers the full range of standard aftermarket steering wheel brands including NRG, Nardi, MOMO, Sparco, and Vertex. A vehicle-specific short hub adapter (sold separately) is required for installation on any vehicle. This quick release is not compatible with the NRG Thin Quick Release system or NRG Quick Tilt system.
