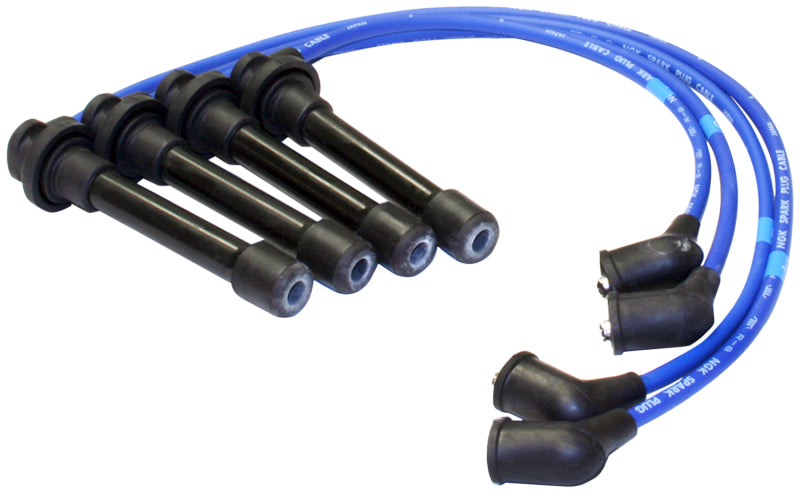

NGK 8034 RC-HE76 Spark Plug Wire Set Honda Civic/Del Sol Acura EL 1.5L/1.6L L4

Vehicle Fitment

• 1992-1995 Honda Civic (EX, Si, 1.6L I4 SOHC VTEC / D16Z6)
• 1992-1995 Honda Civic (VX, 1.5L I4 SOHC VTEC / D15Z1)
• 1996-2000 Honda Civic (CX, DX, EX, GX, HX, LX, VP, 1.6L I4 SOHC / D16B5, D16Y7, D16Y8)
• 1993-1995 Honda Civic del Sol (Si, 1.6L I4 SOHC VTEC / D16Z6)
• 1994-1995 Honda Civic del Sol (VTEC, 1.6L I4 DOHC VTEC / B16A3)
• 1997-2000 Acura EL (Base, 1.6L I4 SOHC / D16Y8)

Fitment Notes

• Fits all D-series and B16A3 distributor-based ignition systems listed above - does not fit coil-on-plug (COP) applications.
• Does not include a coil wire. For applications requiring a coil wire, verify separately before ordering.
• Set of 4 wires. Sold as a complete set.

Features

• 7mm variable pitch magnetic core (Mag Var. Pitch) for low resistance and effective RFI/EMI suppression
• High-temperature silicone outer jacket rated to 250°C for durability in tight, heat-intensive engine bays
• Premium fiberglass braided reinforcement over EPDM/silicone inner insulation for superior dielectric strength and tensile resistance
• Stainless steel terminals with silicone seal at spark plug boot for a corrosion-resistant, vibration-proof connection
• OE or OE-equivalent fit - designed to match Honda OEM wire routing and boot configuration precisely
• Backed by NGK's Lifetime Limited Warranty

Specifications

• Part Number: RC-HE76 | Stock Number: 8034
• Wire Diameter: 7.0mm | Wire Color: Blue
• Core Material: Magnetic (Variable Pitch Spiral Core)
• Jacket Material: Silicone | Inner Insulation: EPDM/Silicone
• Noise Suppression: Yes (RFI/EMI resistor type)
• Terminal Type: Stainless Steel, Corrosion-Resistant
• Fit Type: Vehicle-Specific (Not Universal)
• OEM Cross Reference: Honda 32722-P2F-A03 | 32722-P2T-000 | 32722-P07-000 | 32722-P2A-003

Included Components

• 4x NGK RC-HE76 Spark Plug Wires (Stock No. 8034) - complete set, no coil wire included

Product Description

The NGK 8034 (RC-HE76) is a vehicle-specific spark plug wire set engineered as an OE or OE-equivalent replacement for Honda Civic, Honda Civic del Sol, and Acura EL models equipped with D-series and B16A3 distributor-based ignition systems. The 7mm variable pitch magnetic core provides low resistance for strong spark delivery while effectively suppressing RFI and EMI interference, keeping the ignition signal clean and consistent. The silicone outer jacket and fiberglass-reinforced inner insulation withstand the thermal demands of Honda's compact engine bays, resisting heat, oil, and chemical exposure over the long term.

These wires are color-coded blue and designed to match Honda OEM wire routing, making installation straightforward. Stainless steel terminals with silicone boot seals ensure a tight, corrosion-resistant connection at both the spark plug and distributor cap ends. Backed by NGK's Lifetime Limited Warranty, this is the correct replacement for anyone servicing a 1992-2000 Honda Civic or 1997-2000 Acura EL with a distributor ignition setup.
