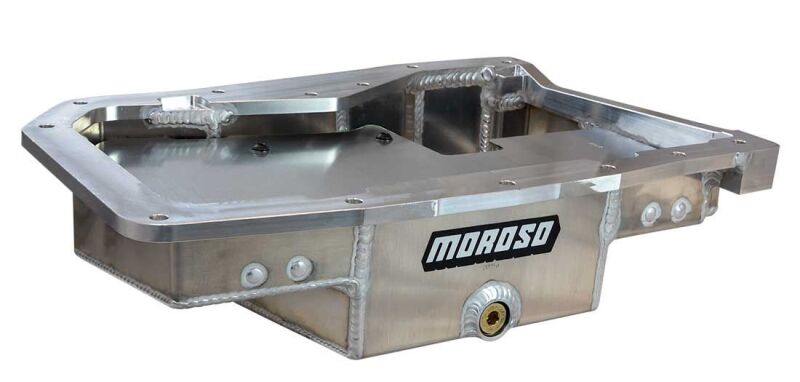

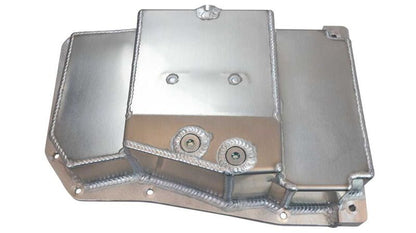

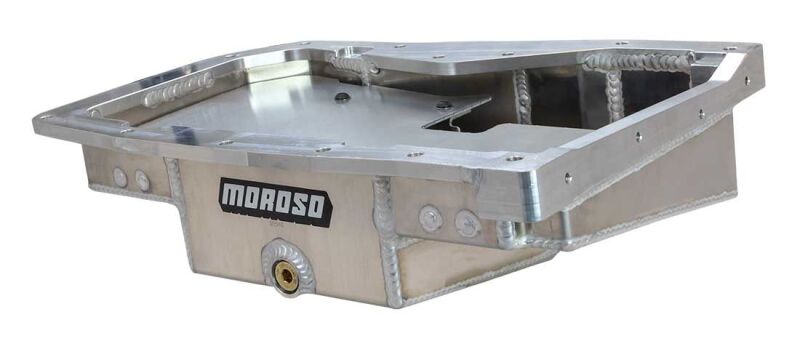

Moroso 20946 Road-Race Baffled Aluminum Oil Pan for 2006-15 Mazda MX-5 NC

Vehicle Fitment

• 2006-2015 Mazda MX-5 (NC platform, 2.0-litre/2.5-litre engine) - direct-fit performance oil pan.

Features

• Full-fabricated aluminum oil pan designed for road-race, track or high-performance use.

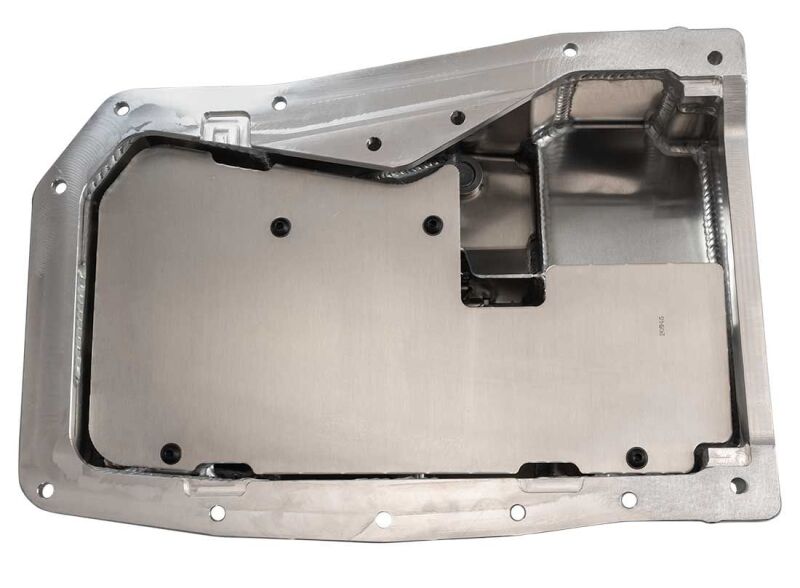

• Integrated windage tray with oil scrapers to reduce oil wind-up and foaming at high RPM.
• Trap-door baffles front-to-rear and side-to-side to maintain oil coverage during high-G cornering.
• Increased oil capacity over the stock pan to improve oil cooling and reduce starvation under load.
• Uses the factory oil pickup and mounting locations for simplified installation.
• Lightweight construction helps reduce overall engine weight and improves chassis balance in the NC MX-5 platform.

Specifications

• Part Number: 20946
• Construction: Fabricated aluminum, billet rail
• Sump Type: Wet-sump with baffling and trap-doors
• Capacity: Approximately 6 quarts plus filter (varies) for NC MX-5 application
• Fitment: 2006-2015 Mazda MX-5 (NC generation)

Included Components

• 1x Moroso 20946 aluminum oil pan (baffled for high-performance use)
• Drain plug installed
• Installation instructions (pan only; pickup tube and hardware may reuse stock or require optional kit)

Product Description

The Moroso 20946 Road-Race Baffled Aluminum Oil Pan is specifically engineered for the NC-generation Mazda MX-5 (2006-2015). It replaces the stock cast pan with a durable, lightweight aluminum unit featuring internal windage control and trap-doors that keep the oil pickup submerged under high-G cornering or spirited driving.

With its superior oil control design, this pan helps reduce oil starvation and improve reliability in performance driving conditions. The increased oil capacity and optimized sump geometry assist in keeping oil temperatures down and maintaining consistent oil pressure when the chassis is under load.

Although designed to fit the NC Mazda MX-5 generation, verify your engine setup, sump clearance, pickup tube compatibility and ensure that the rest of your installation supports the upgrade. Ideal for track use, autocross, high-RPM builds or simply upgrading the reliability of your Mazda's lubrication system.
