McLeod 75223 Super Street Pro Clutch Kit for 97-04 Chevy Corvette LS1/LS6

Vehicle Fitment

• 1997-2004 Chevrolet Corvette (5.7L LS1, LS6)
• 1998-2002 Chevrolet Camaro Z28 / SS (5.7L LS1)
• 1998-2002 Pontiac Firebird Formula / Trans Am (5.7L LS1)

Fitment Notes

• Designed for GM LS1/LS6 engines with T56 6-speed manual transmission
• Input shaft spline: 1-1/8" x 26
• 168-tooth flywheel -- verify ring gear tooth count before ordering
• Throwout bearing NOT included -- order separately
• Larger bore master cylinder or slave cylinder may be required with hydraulic throwout bearing
• Heavier pedal effort than stock

Features

• Dual-faced organic and ceramic disc for smooth engagement and high holding power
• High clamp load diaphragm pressure plate
• SFI approved assembly
• Rated for up to 550 hp
• Billet steel SFI flywheel included
• Street and track capable design

Specifications

• Part Number: 75223
• Brand: McLeod Racing
• Product Line: Super Street Pro
• Disc Diameter: 12" (305mm)
• Disc Material: Organic/Ceramic (dual-faced)
• Disc Style: Full face, sprung hub
• Pressure Plate Style: Diaphragm
• Input Shaft Diameter: 1-1/8" (28.575mm)
• Input Spline Count: 26
• Flywheel Material: Billet steel
• Flywheel Tooth Count: 168
• Horsepower Rating: 550 hp
• UPC: 887753010612

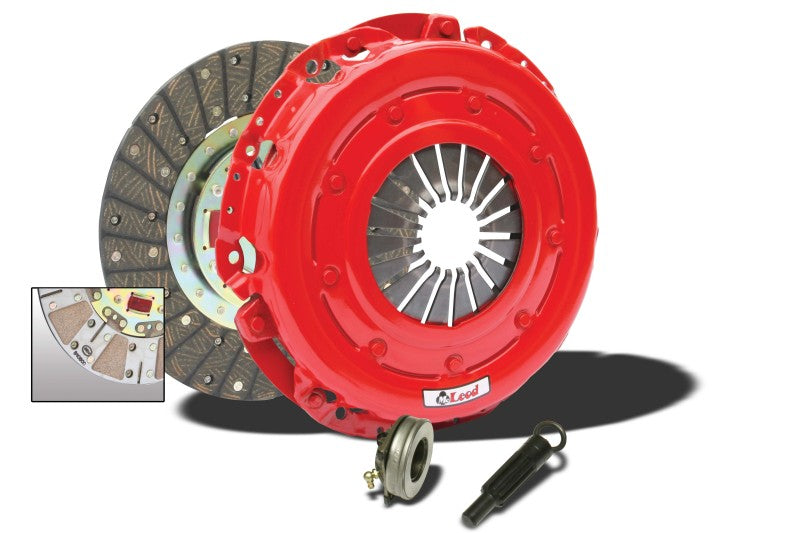

Included Components

• (1) 12" diaphragm pressure plate
• (1) 12" dual-faced organic/ceramic clutch disc (1-1/8" x 26 spline)
• (1) Billet steel SFI flywheel (168-tooth)
• (1) Alignment/pilot tool

Product Description

The McLeod 75223 Super Street Pro is a complete clutch kit engineered for GM LS1 and LS6 powered vehicles with the T56 manual transmission. Rated for up to 550 hp, the kit features a 12-inch dual-faced organic and ceramic disc that delivers smooth street engagement with the holding power needed for track use. A high clamp load diaphragm pressure plate and SFI-approved billet steel flywheel complete the package. The Super Street Pro is designed for moderate to aggressive engine modifications including intake, exhaust, camshaft, and tuning upgrades while maintaining a street-friendly pedal feel with improved holding capacity over stock.
