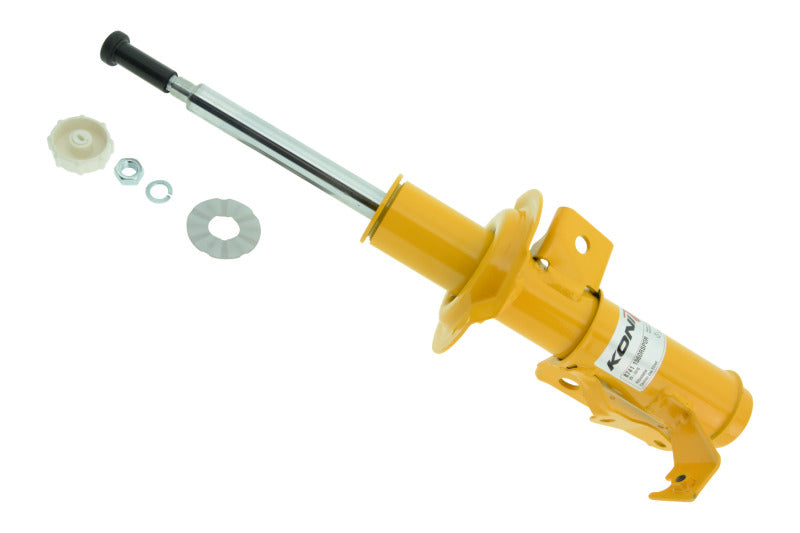

KONI 8741 1560RSPOR Sport Yellow Front Right Strut Scion FR-S Subaru BRZ Toyota

Vehicle Fitment

• 2013-2016 Scion FR-S (ZN6), All Trims, RWD - Front Right
• 2013-2020 Subaru BRZ (ZC6), All Trims (Premium, Limited, Series-Blue, Series-HyperBlue), RWD - Front Right
• 2021-2025 Subaru BRZ (ZD8), All Trims, RWD - Front Right
• 2017-2020 Toyota 86 / GT86 (ZN6), All Trims, RWD - Front Right
• 2022-2024 Toyota GR86 (ZN8), All Trims, RWD - Front Right

Fitment Notes

• Front Right (Passenger Side) only - must be paired with matching Front Left (KONI 8741 1560LSPOR) for a complete front axle set
• Sold individually - order 1 Right and 1 Left for a complete front pair
• This is a complete front strut assembly - direct bolt-in replacement; no housing reuse required
• Externally rebound adjustable - damping can be tuned without removing the strut from the vehicle
• Compatible with aftermarket lowering springs - supports up to 35mm of lowering
• Note for SCCA Street category autocross: contact KONI for camber spacer information

Features

• KONI Sport (Yellow) 8741 Series - externally rebound adjustable complete front strut for on-the-fly damping tuning without removal
• 100% adjustment range - up to three times the range of competing adjustable shocks
• Twin-tube low pressure gas-charged construction for consistent, responsive damping on street and track
• Specifically tuned for the Toyota/Subaru ZN6/ZC6/ZD8/ZN8 FR platform - both Mk1 and Mk2 generations
• Reduces body roll, sharpens steering response, and improves cornering stability over OEM struts
• Compatible with aftermarket lowering springs - supports up to 35mm of drop
• Rebuildable for long-term service life
• KONI Limited Lifetime Warranty

Specifications

• Part Number: 8741 1560RSPOR
• Position: Front Right (Passenger Side)
• Type: Complete Strut Assembly
• Series: KONI Sport (Yellow) 8741
• Internal Design: Twin-Tube
• Gas Charged: Yes (Low Pressure)
• Valving Adjustment: External rebound adjustable (top knob, no removal required)
• Max Compatible Lowering: 35mm (approx. 1.4 in.)
• Ride Height: Stock or lowered (up to 35mm)
• Finish: Yellow
• Boot Included: No
• Warranty: KONI Limited Lifetime

Included Components

• 1x KONI Sport Front Right Strut Assembly (8741 1560RSPOR)
• Note: Sold individually - matching Front Left (8741 1560LSPOR) must be purchased separately
• Note: Bump stops and dust boots are NOT included - reuse OEM components

Product Description

The KONI 8741 1560RSPOR is a Sport (Yellow) series front right strut purpose-built for the Toyota/Subaru FR platform - covering the Scion FR-S (2013-2016), Subaru BRZ (2013-2025, both ZC6 and ZD8 generations), Toyota 86/GT86 (2017-2020), and Toyota GR86 (2022-2024). As a complete strut assembly, it bolts directly into the factory right front location without modification, delivering improved body control, reduced roll, and sharper cornering over OEM units. The external rebound adjustment knob lets the driver dial in damping stiffness on the car without removal - ideal for switching between a street-comfortable setup and a firmer track configuration.

Supporting up to 35mm of lowering with compatible aftermarket springs, this strut is a strong choice for FR-S, BRZ, 86, and GR86 enthusiasts building for daily driving, autocross, or track days. The matching left front strut is KONI 8741 1560LSPOR. Install both in pairs on the front axle and reuse OEM bump stops and dust boots. Drivers competing in SCCA Street category autocross should contact KONI regarding camber spacer fitment prior to installation.
