JBA 1683S Cat4Ward Shorty Headers 1-3/4in for 2015-2022 Ford F-150 5.0L Coyote

Vehicle Fitment

• 2015-2022 Ford F-150 (All Trims, 5.0L Coyote V8)

Fitment Notes

• Fits standard (non-raised port) cylinder heads only -- raised port heads will cause installation issues
• CARB EO D-57-40 / D-57-45 -- 50-state legal for 2015-2018 F-150 5.0L only
• 2019-2022 F-150 5.0L: NOT CA legal for emissions-controlled vehicles
• Silver ceramic version: JBA 1683SJS
• Titanium ceramic version: JBA 1683SJT

Features

• Cat4Ward design -- factory-style emission connections for easier installation
• Mandrel-bent 409 stainless steel primary tubes -- maximum flow and durability
• Proprietary JBA Firecone collector -- race-proven technology for maximum HP/TQ gains
• 3/8" machined flanges -- resists warping, prevents leaks
• Extra thick collector domes -- will not distort, no leaks
• Oversized exhaust ports -- increased flow, accommodates cylinder head porting
• Direct bolt-on replacement -- no cutting or welding required
• 1-year warranty

Specifications

• Style: Cat4Ward shorty headers
• Material: 409 stainless steel
• Finish: Natural stainless
• Primary tube diameter: 1-3/4" (1.75")
• Collector diameter: 2-1/2"
• Flange thickness: 3/8"
• Weight: 20 lbs
• CARB EO: D-57-40 / D-57-45 (2015-2018 only)
• Warranty: 1 year

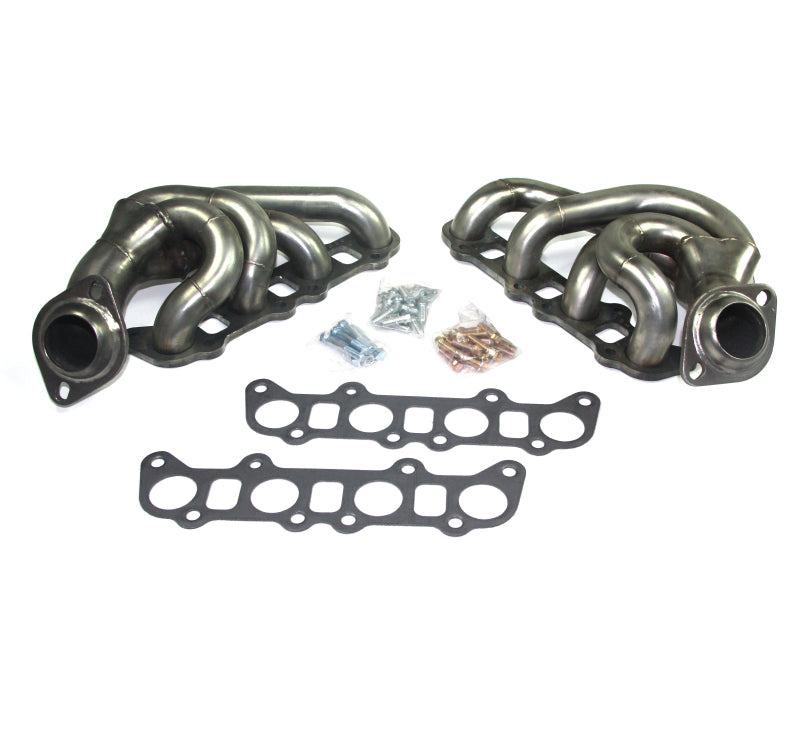

Included Components

• 2x Cat4Ward shorty headers (driver and passenger side)
• High-quality installation hardware
• Installation instructions

Product Description

The JBA 1683S is a pair of Cat4Ward shorty headers for the 2015-2022 Ford F-150 with the 5.0L Coyote V8. Built from mandrel-bent 409 stainless steel with 1-3/4" primary tubes and 2-1/2" collectors, these headers replace the restrictive factory exhaust manifolds for meaningful gains in horsepower and torque across the RPM range. JBA's proprietary Firecone collector smooths the transition from primary tubes into the collector, maintaining exhaust velocity and maximizing scavenging efficiency.

The 3/8" machined flanges resist warping and deliver a leak-free seal, while the Cat4Ward design retains factory-style emission connections for a straightforward installation. CARB Executive Order D-57-40 / D-57-45 makes these headers 50-state legal for 2015-2018 F-150 5.0L applications. The 2019-2022 F-150 5.0L fitment is not CARB approved and is not legal for use on emissions-controlled vehicles in California. Available in silver ceramic (1683SJS) and titanium ceramic (1683SJT) coatings for increased corrosion protection and underhood thermal management.
