ICON 91825 2.5-Series Front Coilover Kit for 2021-24 Ford F-150 4WD (2.75-3.5")

Vehicle Fitment

• 2021-2024 Ford F-150 4WD (all trims eligible, excluding F-150 Tremor & Raptor; avoid models with factory CCD or BlueCruise)

Features

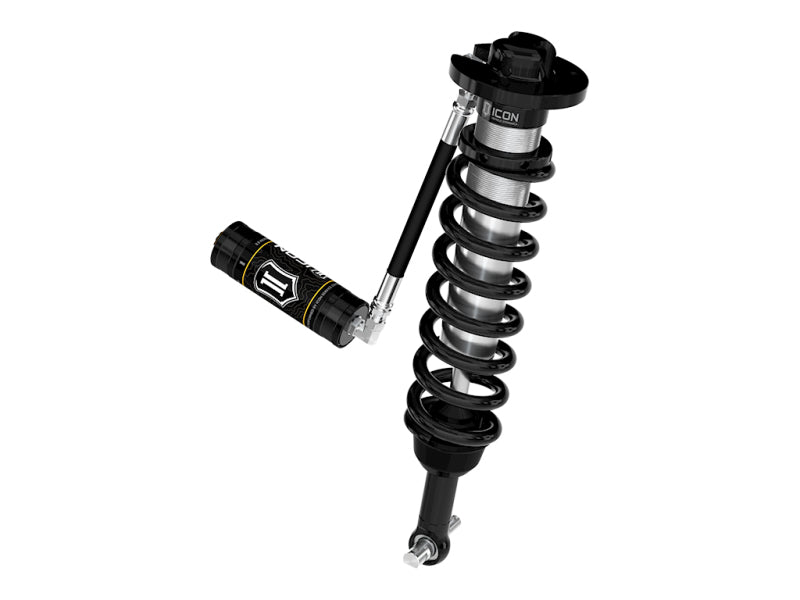

• V.S. Series 2.5" front coilovers with remote-reservoir shocks tuned for Ford F-150 chassis
• Adjustable front ride height: 2.75-3.5" lift over stock - allows clearance for larger wheels/tires
• Vehicle-specific valving for balanced on-road comfort and off-road control
• Heavy-duty 2.5" shock body with increased piston area for improved damping over stock shocks
• Remote reservoirs for better heat dissipation and consistent performance under heavy loads or extended off-road use
• CNC-machined aluminum components, corrosion-resistant CAD-plated body and 7/8" hardened steel shaft for durability
• Includes ICON-engineered coil springs matched to lift height and application
• 100% bolt-on installation - no cutting or welding required (though compatible upper control arms recommended for full suspension geometry preservation)

Specifications

• Part Number: 91825
• Position: Front coilover shock kit (driver + passenger side)
• Shock Type: Remote-reservoir monotube with 2.5" body and 7/8" shaft
• Lift Range: 2.75-3.5" front lift over stock (varies by engine and trim) :contentReference[oaicite:1]{index=1}
• Compatibility: 2021-2024 Ford F-150 4WD (non-Tremor/Raptor; no CCD or BlueCruise) :contentReference[oaicite:2]{index=2}
• Mount Type: Upper plate & lower bar-pin / bar-pin mount configuration for F-150 front suspension :contentReference[oaicite:3]{index=3}
• Material: CNC-machined aluminum components, CAD-plated shock body, steel coil springs and hardened shaft :contentReference[oaicite:4]{index=4}
• Installation: Bolt-on (hardware included), no welding or frame modification required :contentReference[oaicite:5]{index=5}

Included Components

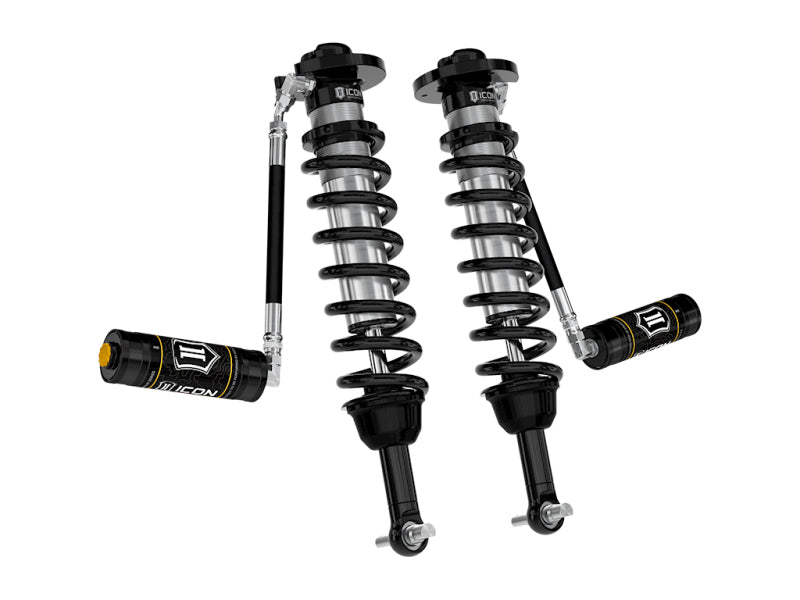

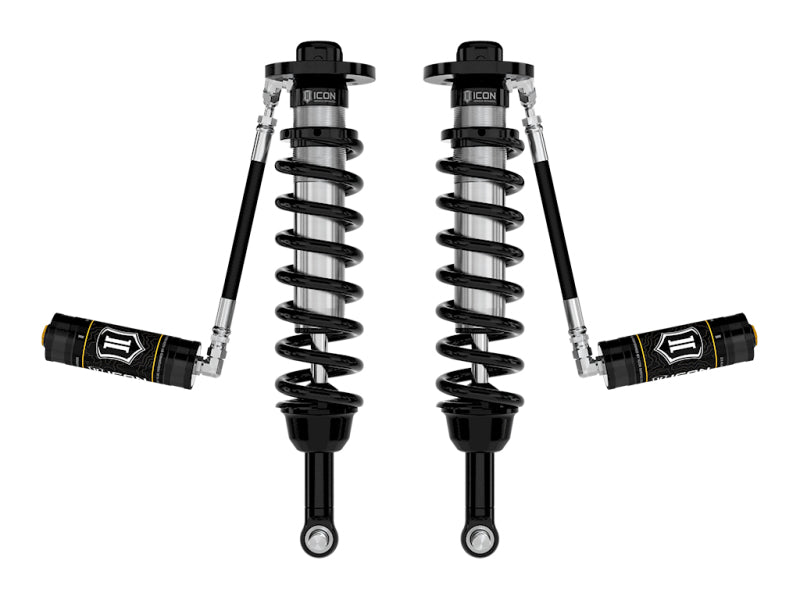

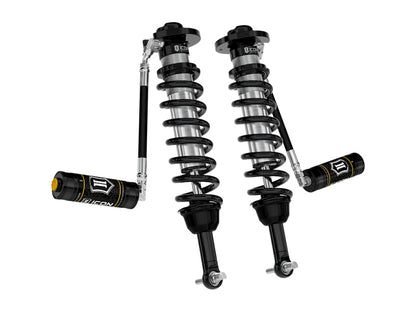

• 2x Front Coilover Assemblies (driver & passenger, ICON 91825)
• Coil Springs (matched to lift spec)
• Mounting hardware (bar-pins, brackets, bolts, washers, etc.)
• Installation instructions

Product Description

The ICON 91825 2.5-Series Front Coilover Kit is engineered specifically for 2021-2024 Ford F-150 4WD trucks needing a robust suspension upgrade. With adjustable lift between 2.75" and 3.5" over stock, this kit allows F-150 owners to install larger wheel/tire combinations and achieve improved ground clearance for off-road or rugged driving. The remote-reservoir monotube shocks with vehicle-specific valving deliver a balance between on-road comfort and off-road compliance - ideal for drivers who split time between daily driving and performance/off-road use.

Construction uses high-quality CNC-machined aluminum hardware, a 2.5" shock body for improved damping, and corrosion-resistant finishing for long-term durability. The included springs are matched to lift height, preserving ride quality while adding suspension travel and load capacity. Installation is 100% bolt-on without cutting or welding - though ICON recommends compatible upper control arms for best suspension geometry retention if you're lifting the front. For F-150 owners seeking reliable lift, more suspension travel, and a confident ride on- and off-road, ICON 91825 is a top-level solution.
