ICON 58780 V.S. 2.5 RR Front Coilover Kit 1.25-3in Lift 2024-2025 Toyota Tacoma

Vehicle Fitment

• 2024-2025 Toyota Tacoma SR (4WD/2WD, coil spring equipped)
• 2024-2025 Toyota Tacoma SR5 (4WD/2WD, coil spring equipped)
• 2024-2025 Toyota Tacoma TRD Sport (4WD/2WD, coil spring equipped)
• 2024-2025 Toyota Tacoma TRD Off-Road (4WD/2WD, coil spring equipped)
• 2024 Toyota Tacoma Limited (4WD/2WD, coil spring equipped)

Fitment Notes

• Front coilover pair - both left and right sides included
• 4WD models require ICON Front Differential Drop Kit (Part #55160), sold separately, to maximize suspension travel and prevent CV joint bind
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• Advanced Driver Assistance Systems (ADAS) recalibration required after installation
• ICON Delta Joint Pro upper control arms (sold separately) strongly recommended above 2 inches of lift to maintain proper wheel alignment
• Lift heights are for stock-equipped vehicles - adding accessories will alter lift range
• Standard remote reservoir with fixed compression damping - upgradeable to CDCV (58780C) for 10-position manual compression adjustment

Features

• Height-adjustable from 1.25 to 3 inches of front lift over stock - allows fitment of larger wheels and tires
• Vehicle-specific shock length and valving engineered for the 4th gen Tacoma platform for unsurpassed on- and off-road performance
• Remote reservoir design significantly increases shock oil volume and heat dissipation to prevent fade during sustained hard use
• 2.5-inch diameter aluminum shock body with increased piston surface area over OEM for superior damping ability
• 6061 aircraft grade aluminum CNC machined components with corrosion-resistant CAD plated shock body
• 7/8-inch shock shaft for maximum durability; 100% rebuildable and revalveable

Specifications

• Series: V.S. 2.5 Aluminum Series
• Type: Front Coilover Kit - Remote Reservoir (RR), standard fixed damping
• Position: Front
• Lift Range: 1.25-3 inches (height-adjustable)
• Compression Adjustment: None (fixed tune); upgradeable to CDCV
• Shock Shaft Diameter: 7/8 inch
• Shock Body Diameter: 2.5 inches
• Body Material: 6061 Aircraft Grade Aluminum (CNC machined, CAD plated)
• Compatible Platform: 2024-2025 Toyota Tacoma (4th Gen, coil spring)
• Recommended Aftermarket Tires: 33x11.50" (larger may require trimming)
• Warranty: 1 Year (against manufacturer defects)
• Sold as: Pair (2 front coilovers)

Included Components

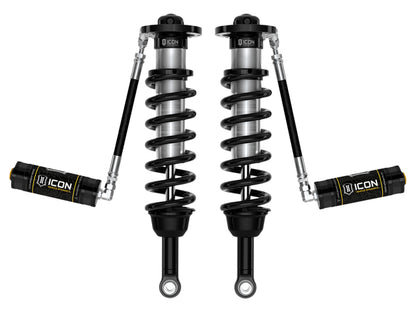

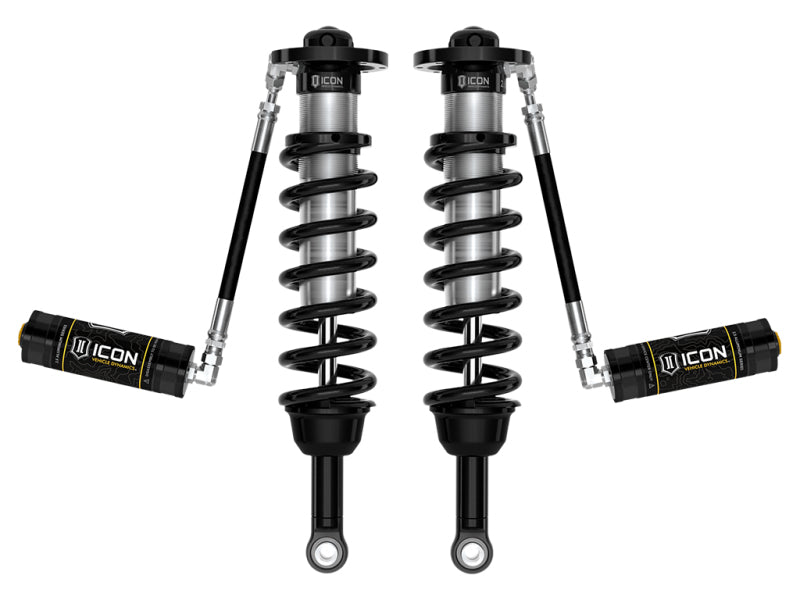

• 2x ICON V.S. 2.5 Series Front Coilover Shocks with Remote Reservoir
• ICON-engineered coil springs
• All required mounting hardware

Product Description

The ICON 58780 is a pair of V.S. 2.5 Series front coilover shocks with remote reservoirs engineered specifically for the 2024-2025 Toyota Tacoma. Height-adjustable from 1.25 to 3 inches over stock, these coilovers allow owners to dial in their preferred front lift height while supporting larger tire fitment for a more aggressive stance and off-road capability. The 2.5-inch aluminum shock body provides significantly more piston surface area and shock oil volume than the factory struts, delivering superior damping ability and heat dissipation during extended hard use on trail.

Vehicle-specific valving by ICON engineers ensures the coilovers are tuned for the Tacoma's suspension geometry, weight, and expected use - delivering a balanced ride quality both on-road and off. The remote reservoir further increases shock oil volume and heat dissipation surface area, nearly eliminating shock fade under sustained high-speed off-road conditions. Note: 4WD models require ICON's front differential drop kit (#55160) for maximum travel and CV protection; ADAS recalibration is required after installation. Owners wanting manual compression damping adjustment should consider the 58780C (CDCV) version. 100% rebuildable and revalveable.
