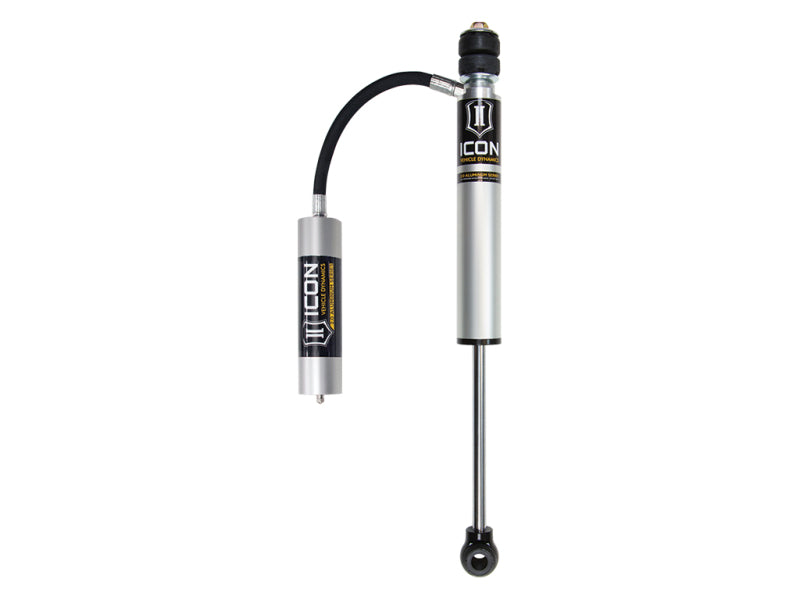

ICON 56520R Rear Remote Reservoir Shock for 2024 Toyota Land Cruiser 4WD 0-3"

Vehicle Fitment

• 2024 Toyota Land Cruiser 4WD (all trims, 3.5L V6)

Features

• Designed for 0-3" rear lift applications
• 2.0" aluminum shock body for improved heat dissipation
• Remote reservoir design reduces shock fade
• Vehicle-specific valving for balanced ride and performance
• 5/8" chrome-plated steel shock shaft for durability
• Polyurethane bushings and zinc-plated sleeves for corrosion resistance
• Monotube nitrogen-charged design for consistent damping
• Fully rebuildable and revalveable for long-term use

Specifications

• Part Number: ICON 56520R
• Shock Body Diameter: 2.0" aluminum
• Reservoir Type: Remote
• Shock Shaft Diameter: 5/8" chrome-plated steel
• Mounting: Upper stem, lower eyelet
• Compressed Length: 15.00"
• Extended Length: 25.00"
• Shock Travel: 10.00"
• Weight: Approx. 20 lbs
• Made in USA

Included Components

• 1x ICON 56520R rear remote reservoir shock (driver side)
• 1x Rubber dust boot
• Mounting hardware specific to application
• Installation instructions

Product Description

The ICON 56520R Rear Remote Reservoir Shock is engineered specifically for the 2024 Toyota Land Cruiser 4WD with a 0-3" rear lift. Featuring a 2.0" aluminum body, this shock delivers superior heat dissipation and corrosion resistance, ensuring consistent damping performance in both on- and off-road conditions.

Its remote reservoir design increases oil capacity, minimizing shock fade during extended use. The vehicle-specific valving provides a balanced ride with enhanced control and comfort. Built with a durable 5/8" chrome-plated steel shaft and corrosion-resistant polyurethane bushings, this shock is fully rebuildable and revalveable for extended service life. Installation is made easy with included hardware and instructions, making it an ideal upgrade for Land Cruiser owners seeking improved rear suspension performance.
