ICON K53367T Stage 7 Lift Kit Tubular UCA for 2024-2025 Toyota Land Cruiser 250

Vehicle Fitment

• 2024-2025 Toyota Land Cruiser 250 Series (4WD, 2.4L Turbocharged I4 Hybrid)

Fitment Notes

• Designed specifically for the 2024-2025 Toyota Land Cruiser 250 Series platform only; does not fit Land Cruiser 200 Series or 300 Series.
• Advanced Driver Assistance Systems (ADAS) recalibration is required after installation.
• Advertised lift height ranges are based on a stock-equipped vehicle; added accessories or weight may alter lift range.
• OEM wheels and tires fitment is retained.

Features

• 2.5 Series front coilovers with remote reservoirs deliver superior damping, increased shock oil volume, and enhanced heat dissipation to prevent fade under sustained hard use.
• Front lift is height adjustable from 1.25-3" over stock, accommodating larger and more aggressive wheel and tire combinations.
• Tubular upper control arms with patented Delta Joint PRO (U.S. Pat. 10,731,700) provide full bump and droop travel with zero bind and 90° of total articulation.
• Front differential drop kit maximizes available wheel travel and prevents CV bind at lifted heights, paired with polyurethane differential mounting bushings to limit movement under load.
• Billet aluminum adjustable rear track bar re-centers the rear axle with easy on-vehicle length adjustment without removal or disassembly.
• Tubular rear lower links feature dual-durometer greaseless bushings and FK rod ends for free articulation with excellent noise and vibration isolation.
• Dual-rate rear coil springs deliver 2" of rear lift with a progressive rate that balances everyday comfort and off-road bottoming resistance.

Specifications

• Position: Full Front and Rear Suspension System
• Front Lift Range: 1.25-3" over stock (adjustable)
• Rear Lift Height: 2" over stock
• Front Coilovers: 2.5 Series, Remote Reservoir, 7/8" Shaft, CAD Plated Body
• Rear Shocks: 2.5 Aluminum Series, Remote Reservoir, 7/8" Shaft, with Integrated Bump Zone
• Upper Control Arms: Tubular Steel with Delta Joint PRO
• Rear Springs: Dual-Rate Coil, 2" Lift
• Rear Track Bar: Billet Aluminum, On-Vehicle Adjustable
• Rear Lower Links: Tubular with FK Rod Ends and Dual-Durometer Greaseless Bushings
• Recommended Aftermarket Tires: 33x11.50" (larger tires may require fender trimming)
• Recommended Aftermarket Wheels: 17x8.5 with 6.32" Backspace / 40mm Offset; 18x9 with 6.6" Backspace / 40mm Offset
• Shipping Weight: 220 lbs

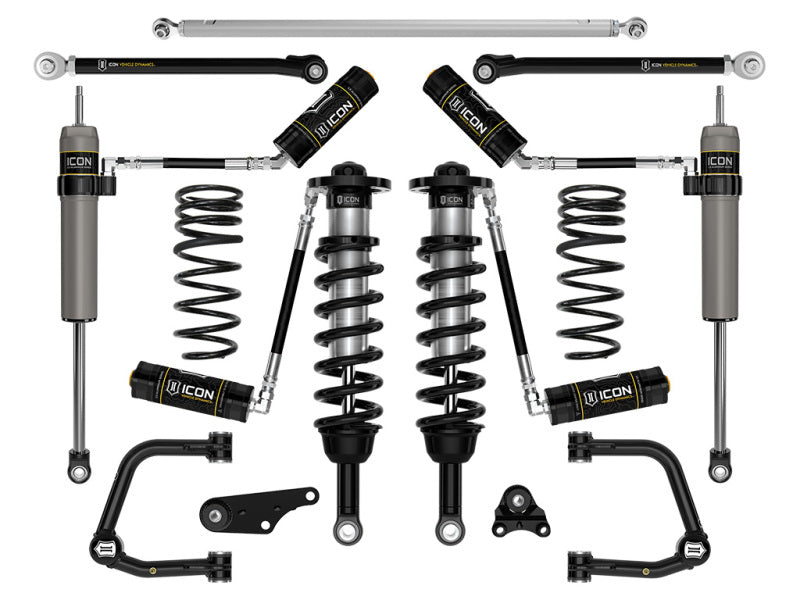

Included Components

• 1x 2024-2025 Land Cruiser 250 Series Front 2.5 VS Remote Reservoir Coilover Kit (58791)
• 1x 2024-2025 Tacoma / LC250 / GX550 / 4Runner Tubular UCA Delta Joint PRO Kit (58452DJ)
• 1x Front Differential Drop Kit (55160)
• 1x 2024-2025 Land Cruiser 250 / GX550 Rear 2.5 VS Remote Reservoir Shock Pair (57870P)
• 1x 2024-2025 Land Cruiser 250 / GX550 2" Dual-Rate Rear Coil Spring Kit (52752)
• 1x Billet Adjustable Rear Track Bar - Tundra / Sequoia / Tacoma / LC250 / GX550 / 4Runner (54202)
• 1x 2024-2025 Land Cruiser 250 / GX550 / 4Runner Tubular Rear Lower Link Kit (54003T)
• 1x Complete hardware kit for full installation

Product Description

The ICON K53367T Stage 7 Suspension System is ICON's most comprehensive lift and performance package for the 2024-2025 Toyota Land Cruiser 250 Series. Building on the Stage 5 foundation, this system adds a billet adjustable rear track bar and tubular rear lower links to deliver complete control over rear suspension geometry and articulation. The 2.5 Series remote reservoir front coilovers offer 1.25-3" of adjustable front lift with improved damping and heat resistance, while tubular upper control arms with the Delta Joint PRO eliminate front suspension bind across the full range of travel.

At the rear, dual-rate coil springs provide 2" of lift with a progressive rate for both daily comfort and off-road capability. The 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones deliver vehicle-matched valving that balances front-to-rear damping performance. The included billet adjustable track bar and tubular lower links allow on-vehicle fine-tuning of rear axle centering and pinion angle - making this system ideal for Land Cruiser 250 owners who demand maximum setup flexibility for demanding overland or off-road use. ADAS recalibration is required after installation.
