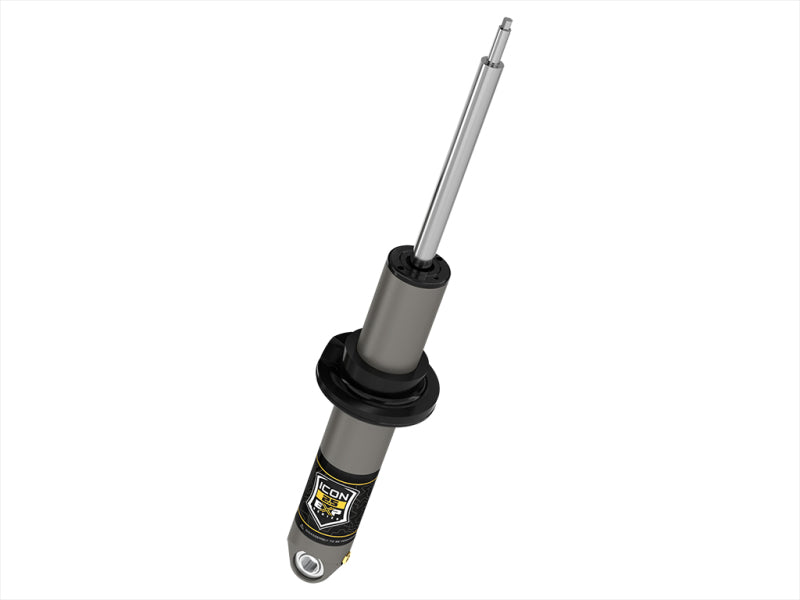

ICON 48611 2.5 EXP Rear Coilover for 21-24 Ford Bronco HOSS 1.0 1.5-2.25in Lift

Vehicle Fitment

• 2021-2024 Ford Bronco (HOSS 1.0 Suspension Package, 4WD) - Rear

Features

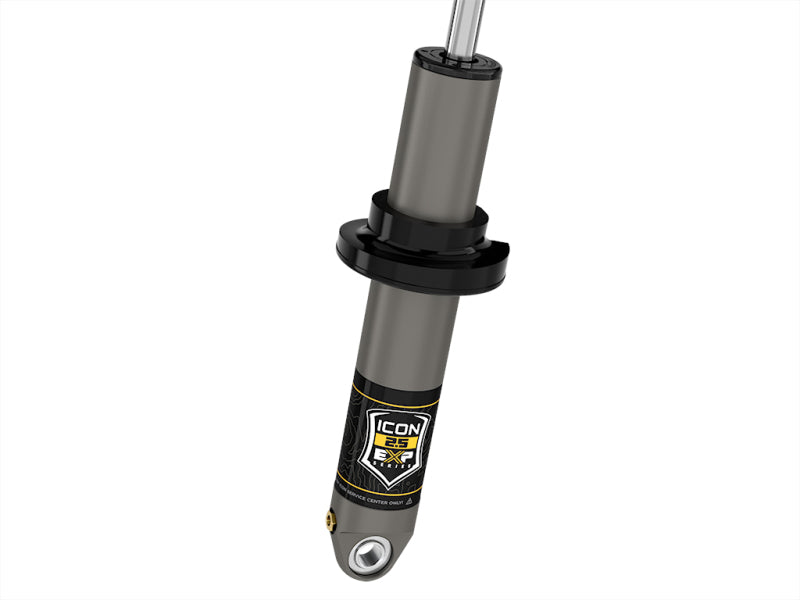

• Factory-specific EXP Series rear coilover shock by ICON Vehicle Dynamics
• 2.5" aluminum shock body with internal reservoir for improved heat dissipation
• Adjustable rear lift from approximately 1.5" to 2.25" over stock using snap ring

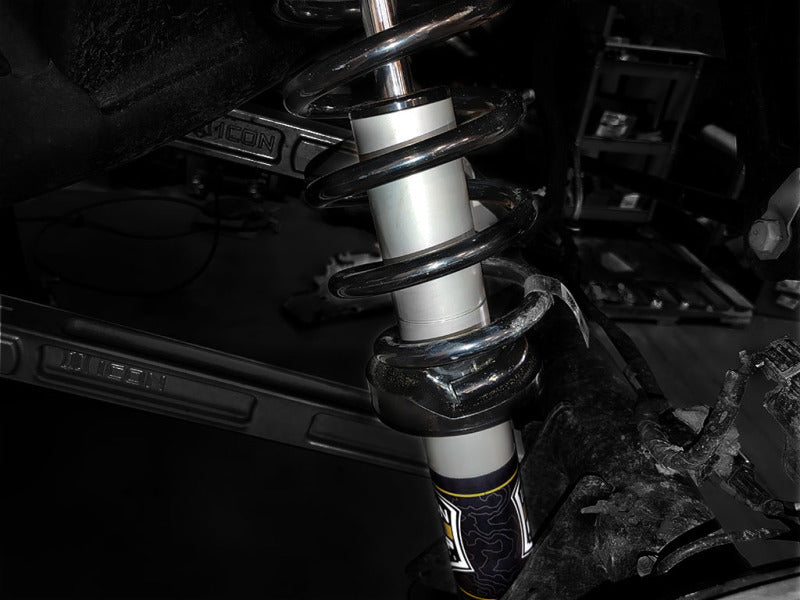

• Utilizes OEM coil spring and upper shock mount hardware
• Inverted shaft-up design for enhanced off-road durability
• 7/8" induction hardened, chrome plated piston shaft
• CNC machined 6061 aluminum components with hard anodized finish
• PTFE lined spherical bearing for reduced deflection and extended service life
• 100% bolt-on installation - no cutting or welding required
• Fully rebuildable and re-tunable by qualified technicians

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: 48611
• Position: Rear Coilover Shock
• Body Diameter: 2.5 inches
• Material: Aluminum shock body, steel internal components
• Lift Range: ~1.5"-2.25" over stock rear height
• Upper Mount Type: Stem

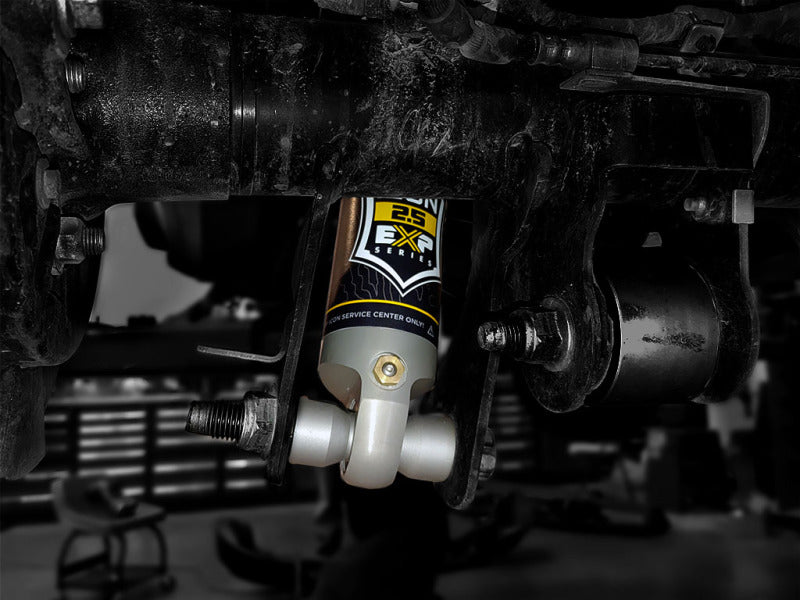

• Lower Mount Type: Eyelet
• Sold Individually - 2 required per vehicle
• Compatible Only with Broncos Equipped with HOSS 1.0 Suspension Package

Included Components

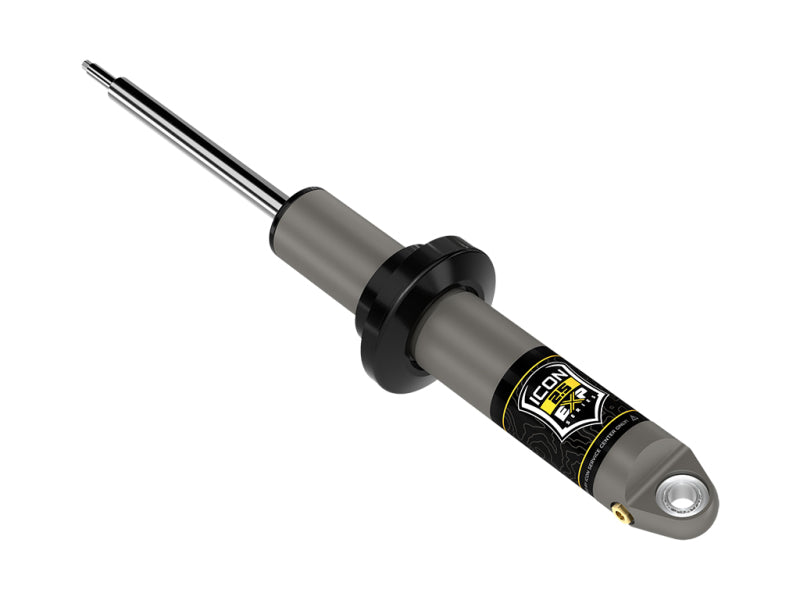

• 1x ICON 2.5 EXP Rear Coilover Shock (Part 48611)
• Hardware as required for coilover mounting

Product Description

The ICON 48611 2.5 EXP Rear Coilover is engineered for 2021-2024 Ford Broncos with the HOSS 1.0 suspension package, offering superior rear damping and off-road performance. Its 2.5" aluminum shock body and internal reservoir improve heat dissipation while maintaining consistent ride quality over rough terrain.

This coilover allows adjustable rear lift between 1.5" and 2.25", accommodating larger tires and providing additional ground clearance. Installation is fully bolt-on using factory coil springs and upper mounts, eliminating the need for cutting or welding.

Designed for durability and long-term service, the ICON 48611 rear coilover features a hardened piston shaft, CNC-machined aluminum components, and PTFE-lined spherical bearings. It is fully rebuildable and re-tunable, making it ideal for Bronco owners seeking enhanced suspension performance and customization.
