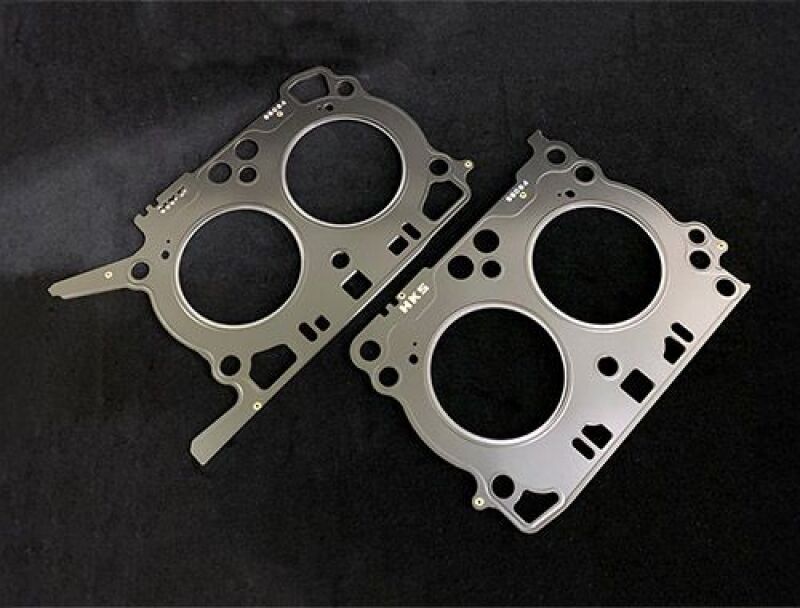

HKS 23002-AT005 Grommet Type Head Gasket for 2022-2026 Subaru WRX, GR86 & BRZ

Vehicle Fitment

• 2022-2026 Subaru WRX (FA24 2.4L Turbocharged I4)
• 2022-2026 Toyota GR86 (FA24 2.4L Turbocharged I4)
• 2022-2026 Subaru BRZ (FA24 2.4L Turbocharged I4)

Fitment Notes

• Designed for FA24 2.4L turbocharged engines; not compatible with naturally aspirated variants.
• Intended for high-performance applications, including turbocharging and supercharging setups.

Features

• 1.2mm thickness to lower compression ratio to 11.3:1, ideal for high-boost applications.
• Grommet-type design enhances sealing capabilities under increased pressure.
• Precision-engineered for optimal bore sealing and durability.
• Compatible with HKS Piston Full Kit FA24 2.5L High Comp Step 1 or 2 to achieve desired compression ratio.
• Manufactured to OEM specifications for reliable fitment and performance.
• Supports tuning of vehicles with turbochargers, ensuring engine integrity under high performance.
• Reduces the risk of head gasket failure in high-stress environments.
• Tested for compatibility with 2022-2026 Subaru WRX, Toyota GR86, and Subaru BRZ models.

Specifications

• Thickness: 1.2mm
• Compression Ratio: 11.3:1 (when used with HKS Piston Full Kit FA24 2.5L High Comp Step 1 or 2)
• Bore Diameter: 95mm
• Material: Multi-layer steel with grommet-type construction
• Weight: 0.7 kg
• Dimensions: 260mm x 200mm

Included Components

• 1x HKS 23002-AT005 Grommet Type Head Gasket

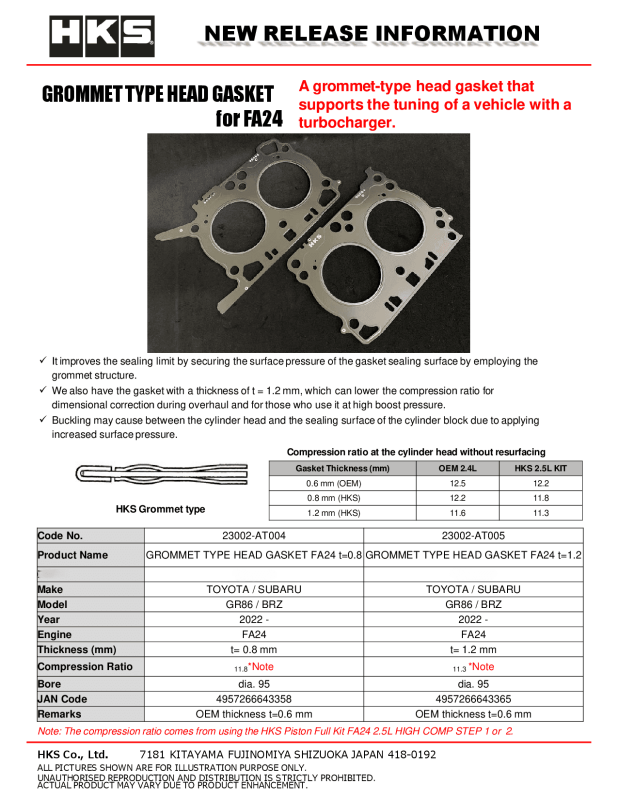

Product Description

The HKS 23002-AT005 Grommet Type Head Gasket is engineered for high-performance applications in the 2022-2026 Subaru WRX, Toyota GR86, and Subaru BRZ equipped with the FA24 2.4L turbocharged engine. With a 1.2mm thickness, this gasket lowers the compression ratio to 11.3:1, making it ideal for setups involving turbocharging or supercharging.

The grommet-type design enhances sealing capabilities, ensuring engine integrity under high boost pressures. When paired with the HKS Piston Full Kit FA24 2.5L High Comp Step 1 or 2, it achieves the desired compression ratio for optimal performance. This gasket is manufactured to OEM specifications, ensuring reliable fitment and durability.

Whether you're upgrading your engine or performing routine maintenance, the HKS 23002-AT005 Head Gasket provides the performance and durability needed to support your high-performance goals.
