HKS 11004-AN017 GTIII-RS Sports Turbine Kit 1998-2001 Nissan Skyline ER34 RWD

Vehicle Fitment

• 1998-2001 Nissan Skyline (ER34), RB25DET, RWD (GT-T)

Fitment Notes

• Fits Nissan Skyline ER34 (chassis code: ER34) with RB25DET engine, May 1998 - May 2001 production only
• RWD (GT-T) models only - does not apply to AWD variants
• Compatibility with early RB25DET models (e.g., ECR33) is under ongoing verification by HKS - do not assume fitment without confirming
• Engine internal reinforcement is strongly recommended when running boost pressure above 100 kPa (1.01 kgf/cm²) - stock internals are rated to the 330 ps target output level
• Injector, fuel pump, and head gasket upgrades may be required depending on target boost level - see HKS product notes for guidance
• Running without a catalytic converter may increase boost by approximately 20 kPa (0.2 kgf/cm²) - factor this into tuning
• Not CARB legal - not for sale or use in California

Features

• GTIII-RS turbine sizing targets 243 kW (330 ps) on a stock-internal RB25DET engine, scaling to 331 kW (450 ps) with engine internals reinforced - a single turbo supporting a wide power range without changing hardware
• OEM-matching turbine housing geometry allows direct bolt-on installation with minimal modifications, maintaining the stock engine bay layout and appearance
• Reinforced actuator preset at 88.3 kPa (0.9 kgf/cm²) provides both boost rise at low RPM and boost stability at high RPM - overcoming the characteristic limitations of the OEM actuator and wastegate system
• Enlarged swing valve port in the turbine housing combined with the large reinforced actuator delivers improved low-RPM boost response alongside high-RPM boost holding capability
• Exclusive turbine inlet pipe with larger bend radii and smooth cross-sectional transitions significantly reduces inlet pressure loss compared to the OEM piping layout
• Dedicated heat shield engineered specifically for the GTIII-RS turbine blocks radiant heat from the turbine housing, protecting adjacent components and reducing engine bay thermal load
• Flange-connected intercooler inlet pipe (cast rather than welded) eliminates weld seam restrictions and provides large bend radius geometry to maximize flow and reduce pressure drop
• HKS GTIII turbine core uses a high-efficiency CHRA delivering strong boost at low airflow ranges while minimizing compressor surge - a direct result of HKS's adaptation of OEM turbo technology advancements to the performance aftermarket
• Dyno-verified on test vehicle: 271 kW (369.5 ps) at 6,500 rpm and 439.5 Nm at 5,260 rpm - a gain of +98.8 kW (+135.4 ps) and +132.6 Nm over the stock baseline on the same vehicle

Specifications

• Part Number: 11004-AN017
• UPC: 4957266625422
• Turbine Series: GTIII-RS Sports Turbine Kit
• Compatible Engine: Nissan RB25DET
• Compressor Inducer: 55.3mm
• Compressor Exducer: 65mm
• Compressor Blades: 6+6 (split blade)
• Turbine Inducer: 56mm
• Turbine Exducer: 49.1mm
• Turbine Blades: 12
• Turbine A/R: 0.70
• Oil Line Inlet: M12x1.25
• Oil Outlet / Water Lines: Exclusive fittings (included)
• Preset Boost Pressure: 88.3 kPa (0.9 kgf/cm²)
• Target Output (stock internals): 243 kW (330 ps)
• Target Output (reinforced internals): 331 kW (450 ps)
• Dyno Max Power (test vehicle): 271 kW (369.5 ps) at 6,500 rpm
• Dyno Max Torque (test vehicle): 439.5 Nm at 5,260 rpm
• CARB Legal: No - not for sale in California
• Quantity: Sold as a complete kit

Included Components

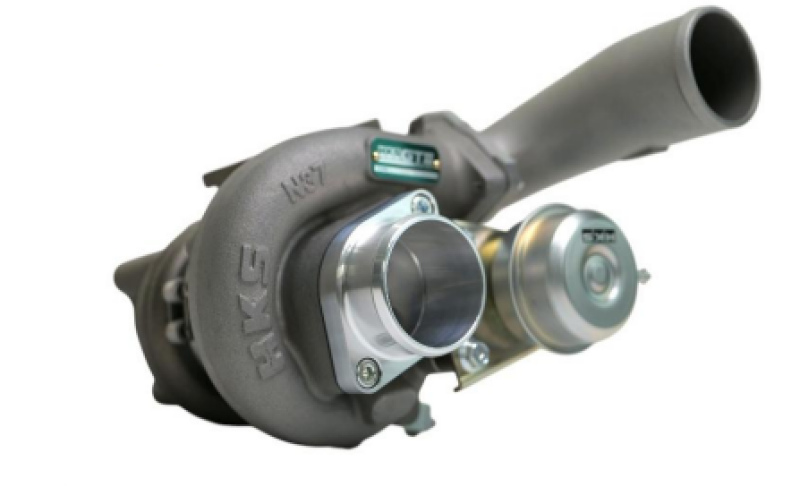

• 1x GTIII-RS Turbocharger Assembly (with reinforced actuator pre-installed)
• 1x Exclusive outlet pipe
• 1x Exclusive heat shield (turbine-specific)
• 1x Adapter pipe
• Complete water and oil lines (inlet and outlet)
• All required gaskets
• All required hardware (bolts, nuts, fittings)

Product Description

The HKS 11004-AN017 is the GTIII-RS Sports Turbine Kit developed specifically for the Nissan Skyline ER34 fitted with the RB25DET engine - covering the May 1998 through May 2001 production window of this iconic single-turbo Skyline variant. The engineering brief for this kit balances two objectives that are rarely achieved together: producing significant power gains over the OEM turbocharger while retaining the stock turbine's exterior geometry so the installation maintains the original engine bay appearance and requires minimal hardware modification. The GTIII-RS achieves this by using HKS's high-efficiency CHRA with a 55.3mm compressor and 56mm turbine, fitted to housing designs that match the OEM bolt pattern and plumbing layout exactly. On a stock-internal RB25DET, the target output is 243 kW (330 ps). With reinforced engine internals, the same turbo supports 331 kW (450 ps) - eliminating the need to change turbos as the build progresses.

A central development focus for the 11004-AN017 was the actuator and wastegate system. The OEM actuator is a known limiting factor on the RB25DET, struggling to maintain consistent boost at high RPM. HKS replaced it with a reinforced large actuator, preset at 88.3 kPa (0.9 kgf/cm²), combined with an enlarged swing valve port in the turbine housing. This combination addresses both ends of the RPM range simultaneously - improving boost rise at low RPM and holding boost stability at high RPM. The exclusive turbine inlet pipe features larger bend radii and smooth cross-section transitions to minimize pressure loss at the turbo inlet, while the cast (not welded) intercooler outlet pipe uses flange connections to eliminate restriction at that joint. A purpose-designed heat shield is also included to block turbine radiant heat from surrounding engine bay components.

HKS's own test vehicle dyno data - a modified ER34 running an F-CON V Pro 3.4 ECU, 550cc injectors, 195L/h fuel pump, HKS front-mount intercooler, and HKS exhaust - produced 271 kW (369.5 ps) at 6,500 rpm and 439.5 Nm at 5,260 rpm. HKS notes that engine internal reinforcement is required when operating above 100 kPa boost, and that fuel system components (injectors, fuel pump, head gasket) should be upgraded depending on the target power level. The kit is not CARB legal and is not available for sale in California. Compatibility with earlier RB25DET platforms such as the ECR33 is under ongoing verification by HKS.
