HKS 31021-AF026 Legamax Sport Quad Titanium Exhaust for 22-25 Subaru WRX

Vehicle Fitment

• 2022-2025 Subaru WRX (VBH chassis) - FA24 Turbo

Fitment Notes

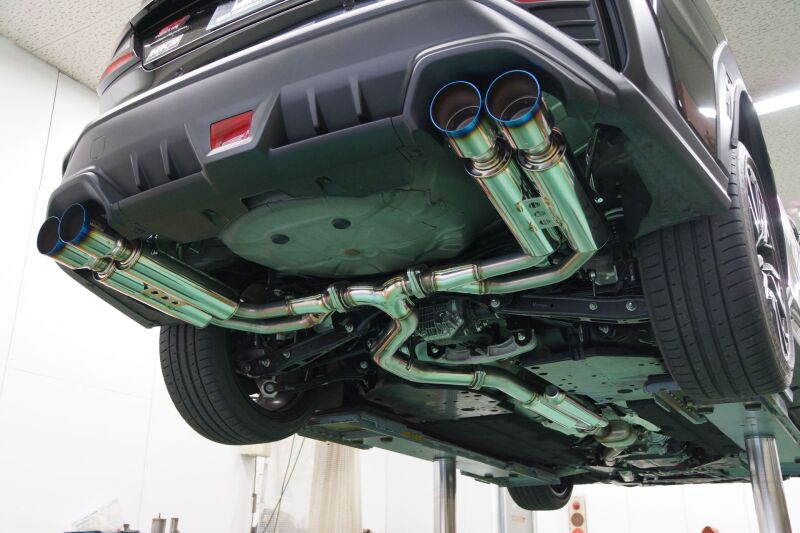

• Front pipe height matches stock (130mm); no change to minimum ground clearance
• Designed around the stock suspension setup; clearance may vary with lowering springs or adjustable ride height

Features

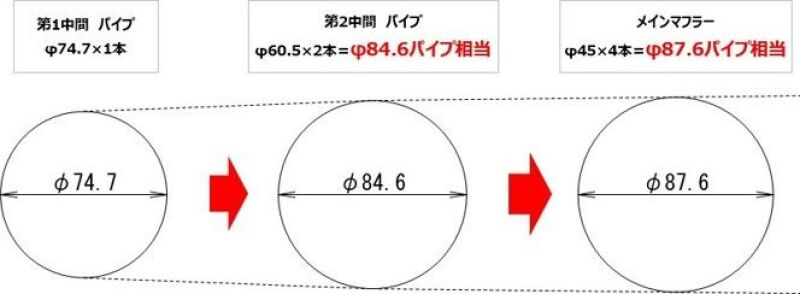

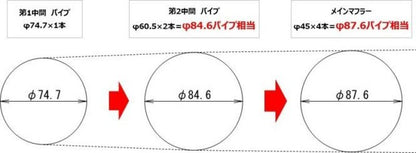

• Pipe diameter reduced from a single 74.7mm section to 60.5mm x2 and 45mm x4, lowering exhaust pressure while tuning sound

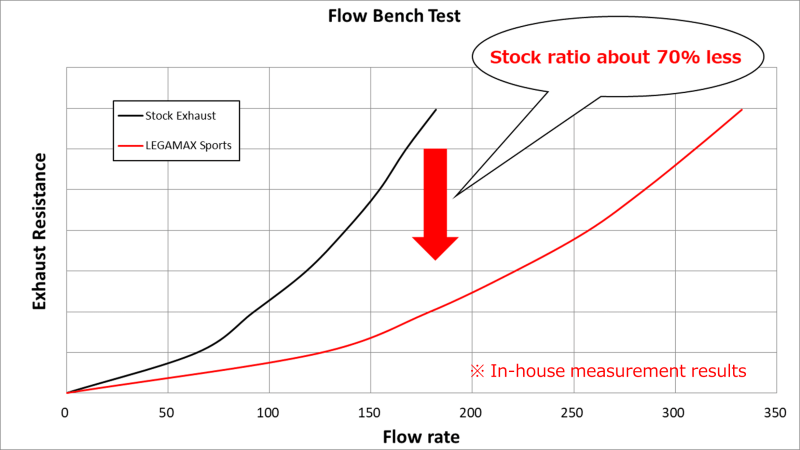

• Approximately 70% reduction in exhaust resistance versus the stock muffler on flow-bench testing

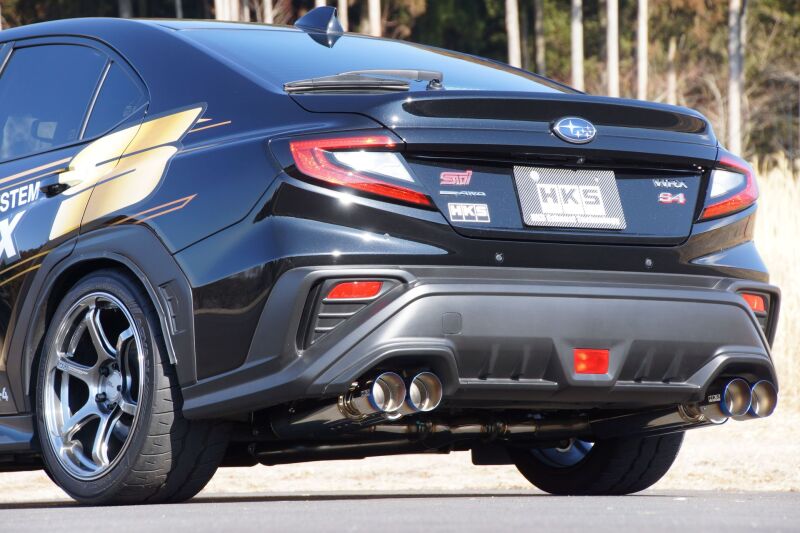

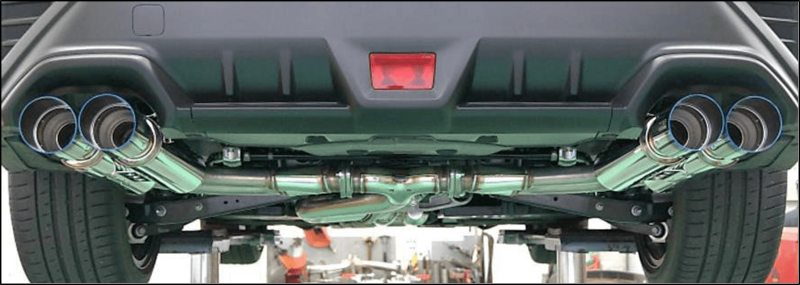

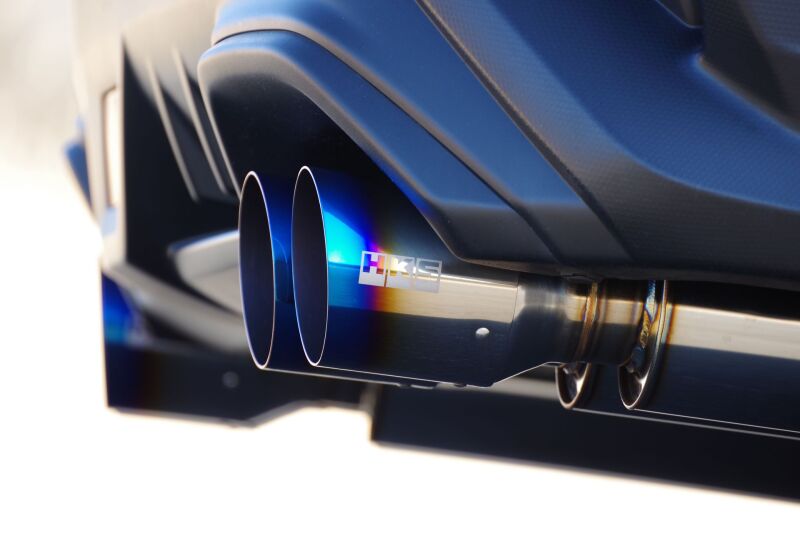

• Symmetrical quad-pipe layout with a 98mm titanium tail, hand-finished with a heat-bake gradation effect

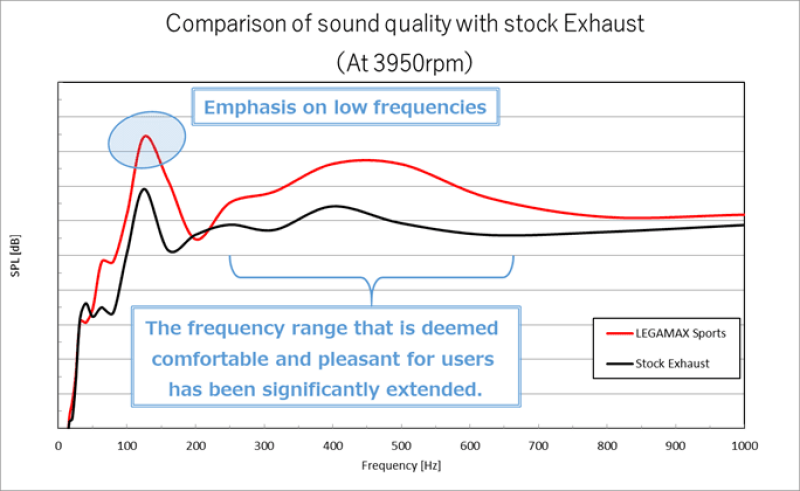

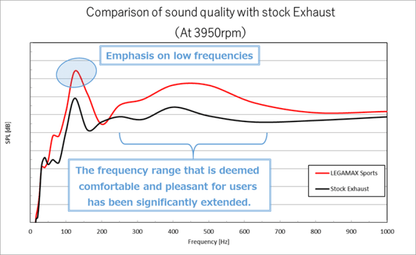

• Extended pipe length accentuates a sporty high-frequency tone around 500Hz while minimizing muffled sound
• TIG-welded S304 stainless main silencer construction for durability

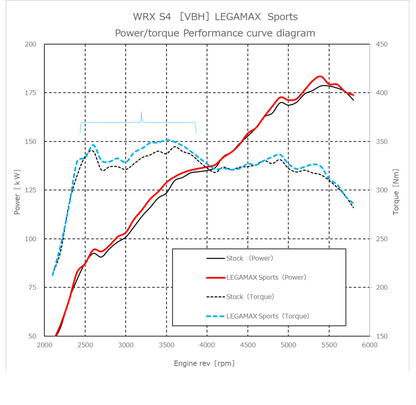

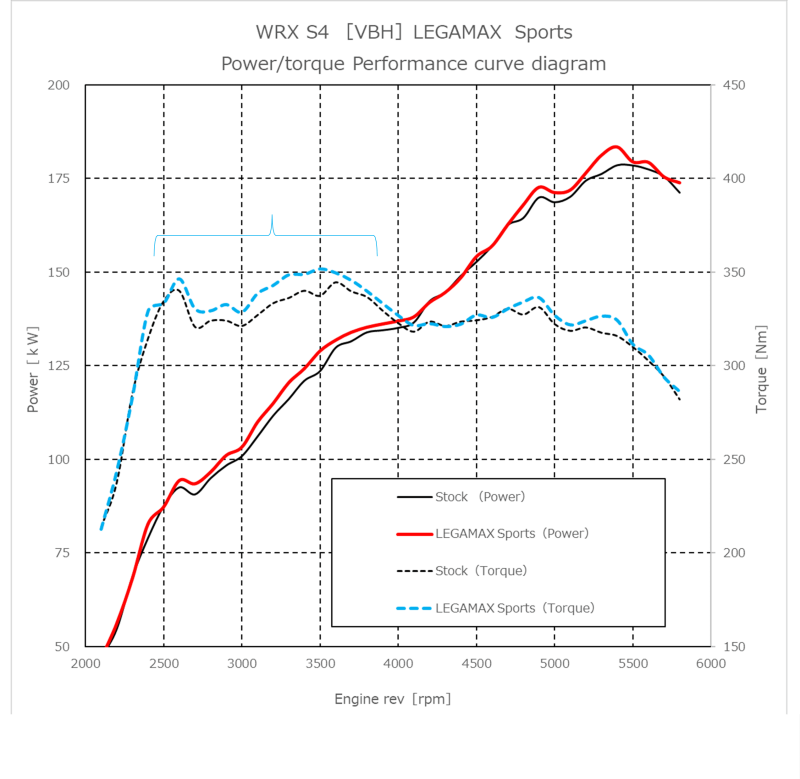

• Confirmed dyno gains of 4.8kW and 7.2Nm peak torque over stock (exhaust-only, per HKS testing)

Specifications

• Muffler Shape: Ti-1 (Titanium), Legamax Sports
• Main Material: S304 Stainless Steel
• Tip Diameter: 98mm x 4
• Center Pipe Diameter: 74.7mm → 60.5mm x2 → 45mm x4
• Idle Noise Level: 90dB (stock: 79dB)
• Minimum Road Clearance: 130mm (front pipe, stock suspension)
• Product Weight: 24.14kg
• Certification: JQR60244002

Included Components

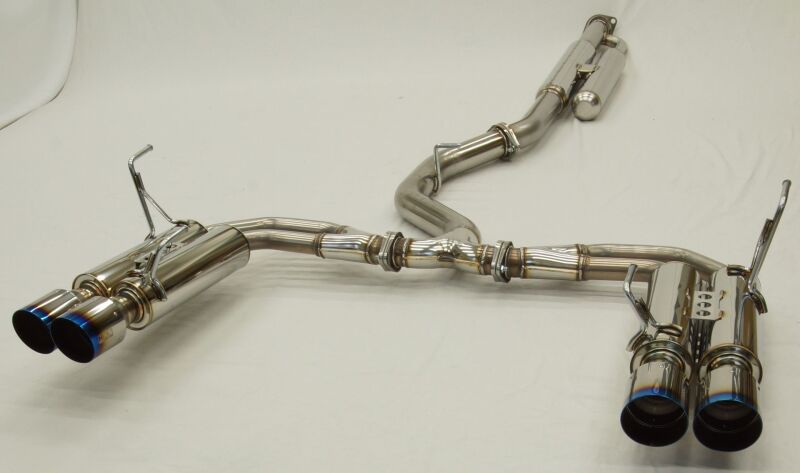

• 1x HKS Legamax Sport quad-tip titanium catback exhaust system

Product Description

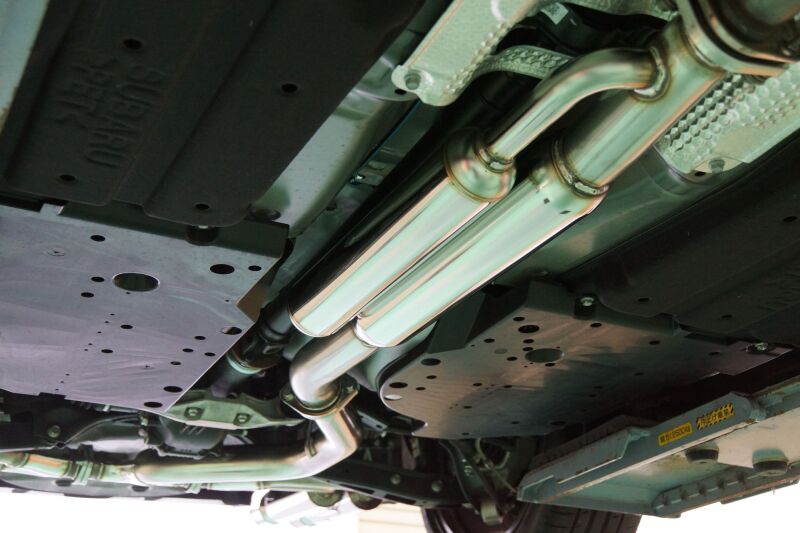

The HKS 31021-AF026 Legamax Sport is a quad-tip catback exhaust built for the FA24-Turbo Subaru WRX, engineered around three priorities: performance, sound, and appearance. By stepping the pipe diameter down from a single 74.7mm section to a 60.5mm x2 / 45mm x4 configuration, HKS achieves roughly a 70% reduction in exhaust resistance over stock on flow-bench testing, translating to measured dyno gains of 4.8kW and 7.2Nm peak torque in exhaust-only configuration.

Tuned expansion and resonance pipes bring out the boxer engine's character, delivering a rich low tone at cruise that opens into a sportier high-frequency note around 500Hz under acceleration - idle noise rises to 90dB from a stock 79dB. The symmetrical quad-pipe rear features hand-finished 98mm titanium tips with a heat-bake gradation finish, built on a TIG-welded S304 stainless main silencer. Front pipe height matches the stock 130mm clearance, so there's no change to minimum ground clearance with the factory suspension.
