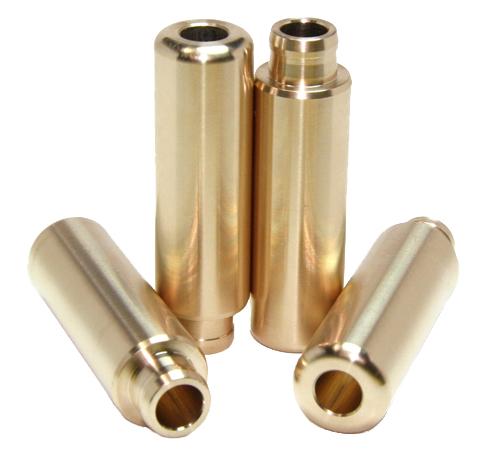

GSC Power Division 3011-8 Manganese Bronze Exhaust Valve Guides 4B11T Evo X

Vehicle Fitment

• 2008-2015 Mitsubishi Lancer Evolution X (4B11T, AWD)

Fitment Notes

• Traditional smooth-style guide (no stopper) - the stopper-style exhaust equivalent for the 4B11T is GSC 3013-8.
• Not compatible with 4G63-based Evo I-IX or DSM platforms - the 4B11T uses a smaller 5.5mm valve stem diameter vs. 6.6mm on the 4G63.
• Standard OD sizing; light honing of the guide boss may be required depending on head condition and target clearance specification.
• Oversized OD options (+0.001" and +0.003") are available individually for heads requiring bore service.

Features

• Manufactured from true C67410 Manganese Bronze for superior lubricity, heat dissipation, and wear resistance over OEM cast iron guides.
• CNC-turned on dedicated precision turning centers to maintain the tightest OD-to-ID concentricity tolerances in the segment.
• Traditional smooth profile for direct compatibility with standard 4B11T head configurations.
• True-to-size OD minimizes guide boss honing on heads that don't require bore service, reducing installation time.
• Engineered to maintain consistent valve-to-guide clearances across all eight exhaust positions for uniform valvetrain performance.
• Compatible with GSC 4B11T exhaust valves, valve stem seals, and spring kits for a complete matched valvetrain rebuild.

Specifications

• Position: Exhaust
• Style: Traditional Smooth (no stopper)
• Material: Manganese Bronze (proprietary C67410 blend)
• Total Length: 1.735" / 44.07mm
• Outer Diameter: 0.4351" / 11.05mm
• Valve Stem Diameter: 5.5mm
• Application: Mitsubishi 4B11T (Lancer Evolution X)

Included Components

• 8x GSC Power Division Manganese Bronze Traditional Exhaust Valve Guides (Standard OD)

Product Description

The GSC Power Division 3011-8 is a set of eight traditional smooth-style Manganese Bronze exhaust valve guides engineered specifically for the Mitsubishi 4B11T engine found in the 2008-2015 Lancer Evolution X. Unlike the 4G63-based DSM and Evo I-IX guides, the 4B11T requires a smaller 5.5mm valve stem diameter and a distinct OD (0.4351" / 11.05mm), making it incompatible with any previous-generation guide. Made from true C67410 Manganese Bronze rather than OEM cast iron, these guides deliver improved lubricity, better thermal conductivity, and greater long-term wear resistance on the exhaust side where heat loads are highest.

Precision CNC-turned to the tightest concentricity tolerances in the aftermarket, the 3011-8 requires minimal honing on undamaged guide bosses, reducing head build time and ensuring consistent valve-to-guide clearance across all eight exhaust positions. For heads requiring bore service, individually sold +0.001" and +0.003" oversized options are available. Builders who prefer a stopper-style guide for depth-controlled installation should reference GSC 3013-8 instead.

A reliable foundation for any 4B11T head rebuild, the 3011-8 pairs directly with GSC's Evo X exhaust valves, valve stem seals, and beehive or conical spring kits for a fully matched, high-performance valvetrain on the Lancer Evolution X platform.
