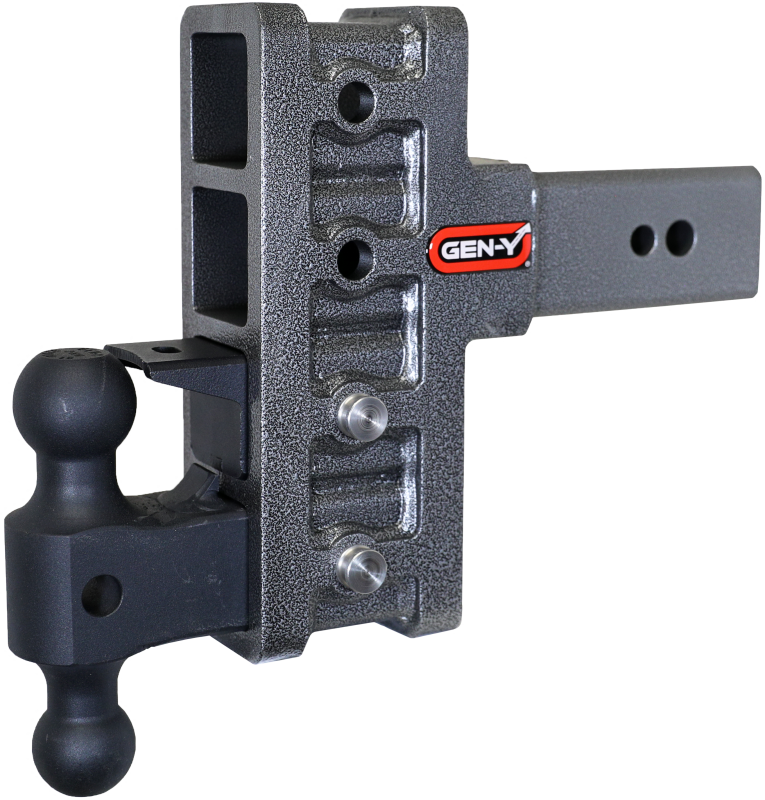

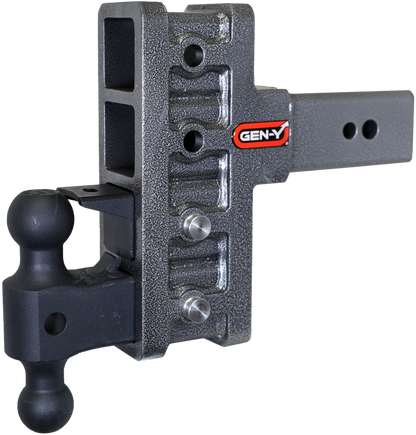

GEN-Y GH-2024 MEGA-DUTY 6" Offset Drop Hitch 32K LB 3" Receiver Dual Ball Lock

Vehicle Fitment

• Universal Fit - Designed for any vehicle equipped with a Class V 3" x 3" receiver hitch

Fitment Notes

• Fits Class V 3" x 3" receiver hitches only - does not fit 2" or 2.5" receivers
• Offset shank design provides simultaneous rise and drop positions - 3" rise on top, 6" drop below
• Designed for use with 1.5" or smaller lunette rings when using the pintle lock attachment
• A stabilizer kit is recommended for drops exceeding 12.5 inches
• Not recommended for use with non-GEN-Y towing attachments
• Towing capacity is always limited by the lowest-rated component in the towing system (vehicle, hitch, trailer coupler)
• Verify your vehicle's receiver size and required drop height before ordering

Features

• MEGA-DUTY Series with 32,000 lb gross trailer weight rating - among the highest capacity adjustable drop hitches available for 3" receivers
• Offset shank design delivers both a 3" rise and 6" drop simultaneously across 4 adjustable positions, allowing multi-purpose use in a single setup
• Stacked receiver tube design permits multiple attachments to be mounted at the same time - such as a cargo rack in an upper position and a trailer ball in a lower position
• One-pin quick-adjust system with precision anti-wear pin holes for fast, secure, rattle-free repositioning
• Designed and tested for use in both drop and rise positions, providing versatility across a wide range of trailer heights
• Compatible with bumper-style trailers, pintle-style couplings, bike racks, cargo carriers, and motorcycle carriers
• Compatible with the GEN-Y Weight Distribution Shank for enhanced towing load management
• Exceeds SAE-J684 weight testing requirements - independently tested and certified
• Made in the USA (Bremen, Indiana) and backed by a limited lifetime warranty against manufacturing and workmanship defects
• Sand-blasted and finished with a durable silver-vein powder coat for long-lasting corrosion and weather resistance

Specifications

• Part Number: GH-2024
• Series: MEGA-DUTY
• Receiver Shank Size: 3" x 3" (Class V)
• Hitch Class: Class V
• Drop Configuration: Offset - 3" Rise / 6" Drop
• Maximum Drop: 6 inches (offset)
• Maximum Rise: 3 inches (offset)
• Adjustment Positions: 4 stacked positions
• Gross Trailer Weight (GTW) Rating: 32,000 lb
• Tongue Weight Capacity: 3,500 lb
• Dual-Ball Sizes: 2" and 2-5/16"
• Lunette Ring Compatibility: Designed for 1.5" or smaller lunette rings
• Finish: Silver-vein epoxy powder coat
• Construction: Heavy-duty steel, sand-blasted prior to coating
• Compliance: Exceeds SAE-J684 weight testing requirements
• Country of Origin: USA (Bremen, Indiana)
• Warranty: Limited lifetime against defects in manufacturing and workmanship

Included Components

• 1x GH-2024 MEGA-DUTY Offset Shank (3" receiver, 3" rise / 6" drop, 4 positions)
• 1x GH-0161 Dual-Ball Mount (includes 2" and 2-5/16" hitch balls)
• 1x GH-0162 Pintle Lock Attachment
• 2x Hitch Pins

Product Description

The GEN-Y Hitch GH-2024 MEGA-DUTY Offset Drop Hitch is purpose-built for Class V 3" receiver-equipped heavy-duty trucks, large commercial vehicles, and high-capacity RVs that demand the absolute maximum in towing strength and multi-application flexibility. With a 32,000 lb gross trailer weight rating and a 3,500 lb tongue weight capacity, the GH-2024 sits at the top of the GEN-Y Mega-Duty lineup for 3" receiver applications. Its unique offset shank design provides a 3" rise above the receiver centerline and a 6" drop below it simultaneously - giving you 4 adjustable stacked positions to achieve a perfectly level tow regardless of your trailer coupler height or vehicle lift.

The stacked receiver tube architecture is one of the defining advantages of the GH-2024. Rather than offering a single towing position, this hitch allows multiple accessories to be run at the same time. A cargo carrier, spare tire mount, or bike rack can occupy the top receiver position while a ball mount or pintle lock handles trailer towing from a lower position - eliminating the need to swap equipment between jobs. The one-pin adjustment system uses precision-machined anti-wear pin holes to lock in the selected height quickly and securely, with no slop or hitch rattle under load. The included GH-0161 Dual-Ball Mount provides instant access to both 2" and 2-5/16" ball sizes, while the GH-0162 Pintle Lock expands compatibility to include pintle-ring and lunette-ring trailers up to 1.5" ring size.

Built entirely in Bremen, Indiana from heavy-duty steel that is sand-blasted and finished in a durable silver-vein powder coat, the GH-2024 is designed to withstand the harshest towing environments over a lifetime of service. Every unit is rigorously tested to exceed SAE-J684 weight testing standards, and the entire product line is backed by GEN-Y's limited lifetime warranty. Whether you're hauling heavy equipment, managing livestock trailers, or pulling an RV across thousands of miles, the GH-2024 delivers the capacity, adjustability, and build quality to handle the job - and many jobs simultaneously.
