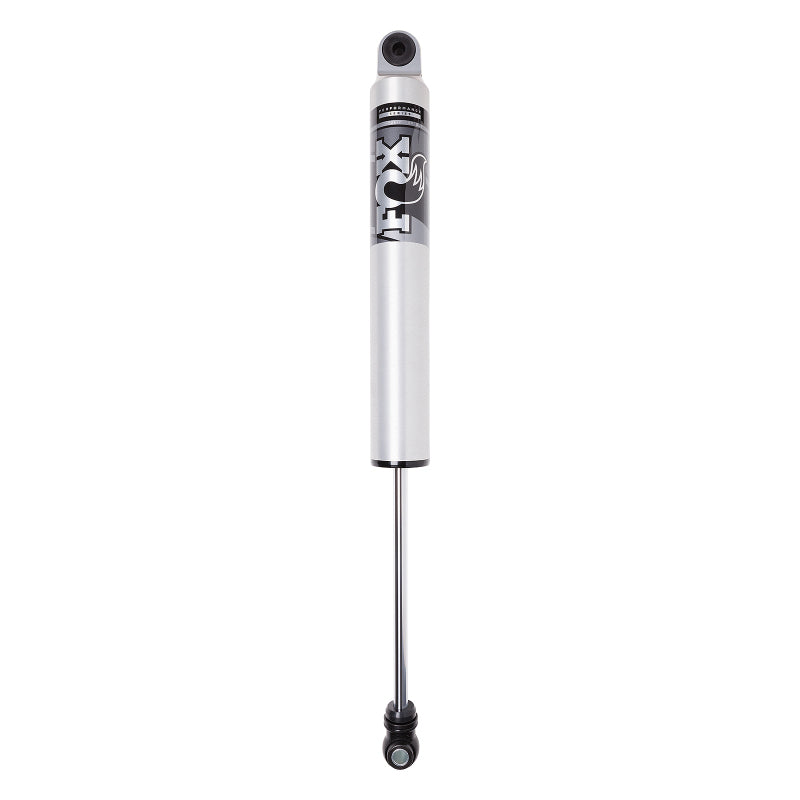

FOX 987-24-016 2.5 Performance Series HTO Front Shock for 20-25 Jeep Gladiator

Vehicle Fitment

• 2020-2025 Jeep Gladiator JT 4WD (front suspension; fits 2-3" lift)

Features

• FOX Performance Series 2.5" smooth body shock with advanced damping
• Hydraulic Top Out (HTO) technology reduces harsh top-outs and improves comfort
• Internal Floating Piston (IFP) separates shock oil from nitrogen for consistent damping
• High-flow, velocity-sensitive valving tuned for on-road and off-road performance
• Impact-extruded 6061-T6 aluminum body with Type II clear-anodized finish
• 5/8" hard chrome shaft for durability and smooth operation
• Application-specific tune for lifted Gladiator front suspension
• Eyelet top and bottom mounts for direct bolt-on installation

Specifications

• Part Number: 987-24-016
• Series: FOX Performance Series 2.5 Smooth Body IFP HTO
• Position: Front shock absorber
• Extended Length: ~26.82"
• Compressed Length: ~17.54"
• Travel: ~9.29"
• Body Diameter: 2.5"
• Mount Type: Eyelet top and bottom
• Recommended Lift: 2-3" front suspension lift

Included Components

• 1x FOX 987-24-016 Performance Series 2.5 HTO front shock

Product Description

The FOX 987-24-016 Performance Series 2.5 HTO front shock is engineered for lifted Jeep Gladiator JT models from 2020 through 2025 with a front suspension lift of about 2-3 inches. Built with a robust 2.5-inch impact-extruded aluminum body and advanced FOX technologies, this shock delivers a smooth and controlled ride across a wide range of driving conditions. The Hydraulic Top Out (HTO) system reduces harsh rebound top-outs while enhancing comfort and handling, especially useful when running aggressive tires or aftermarket suspension lifts.

Featuring an Internal Floating Piston (IFP) to maintain consistent damping and high-flow velocity-sensitive valving tuned for Jeep Gladiator applications, the 987-24-016 offers reliable performance both on-road and off-road. The eyelet mounts provide a simple bolt-on installation, and its built-in valving and durable construction make it an excellent upgrade for improved front suspension control and comfort on lifted Gladiator rigs.
