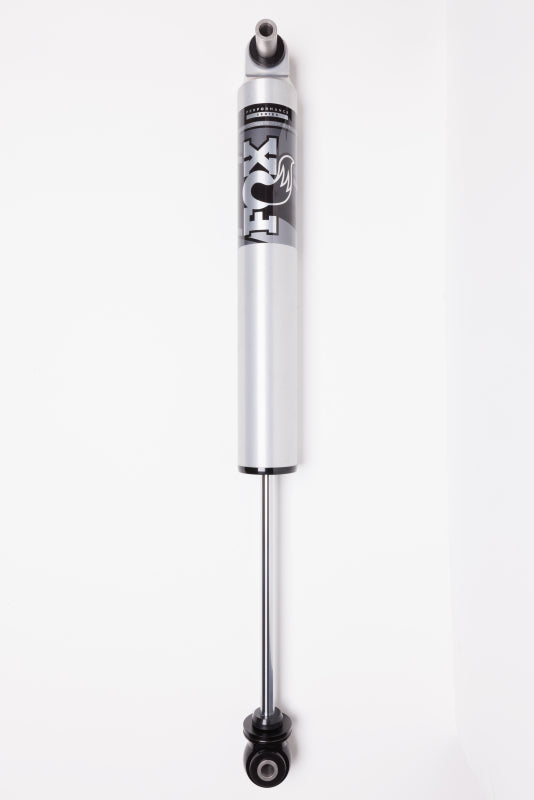

FOX 987-24-013 2.5 Performance Series HTO Rear Shock for 18-25 Jeep Wrangler JL

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL 4WD (with 2-3" rear suspension lift)

Features

• FOX Performance Series 2.5" shock with position-sensitive damping
• Impact-extruded 6061-T6 aluminum body with Type II anodized finish
• Hydraulic Top Out (HTO) technology reduces harsh top-outs
• Internal Floating Piston (IFP) separates oil and nitrogen for consistent damping
• High-flow velocity-sensitive valving for balanced on-road and off-road performance
• 5/8" hard chrome shock shaft for durability
• Application-specific valving tuned for lifted Wrangler JL suspension
• Eyelet top and bottom mounts for direct bolt-on fitment

Specifications

• Manufacturer Part Number: 987-24-013
• Series: Performance Series 2.5" Smooth Body HTO
• Position: Rear shock absorber
• Lift Compatibility: 2-3" rear suspension lift
• Extended Length: ~29.72"
• Compressed Length: ~19.04"
• Travel: ~10.69"
• Body Diameter: 2.5"
• Mount Type: Eyelet top and bottom

Included Components

• 1x FOX 987-24-013 Performance Series 2.5 HTO Rear Shock

Product Description

The FOX 987-24-013 Performance Series 2.5 HTO Rear Shock is engineered to enhance the ride quality and control of lifted Jeep Wrangler JL models from 2018 through 2025 that have a rear suspension lift of approximately 2-3 inches. With a large-diameter aluminum shock body that efficiently dissipates heat and resists corrosion, this shock delivers balanced damping performance both on paved roads and off-road terrain. The Hydraulic Top Out (HTO) technology reduces harsh top-out events while improving rebound control for a more comfortable ride over rough surfaces.

Featuring an Internal Floating Piston (IFP) design to separate high-pressure nitrogen from shock oil, the 987-24-013 provides consistent damping and performance during extended travel. High-flow velocity-sensitive valving and application-specific tuning help maintain stability and control, especially when paired with aggressive tires or lifted suspension setups. The direct-bolt eyelet mounts make installation straightforward, and the robust construction ensures dependable performance for both daily driving and demanding off-road use.
