FOX 883-02-059 2.5 Factory Series Coilover Kit 4-6.5 in. for Silverado/Sierra

Vehicle Fitment

• 2007-2018 Chevrolet Silverado 1500 (Front, 2WD & 4WD, All Trims)
• 2007-2014 Chevrolet Suburban 1500 (Front, 2WD & 4WD, All Trims)
• 2007-2015 Chevrolet Tahoe (Front, 2WD & 4WD, All Trims)
• 2007-2018 GMC Sierra 1500 (Front, 2WD & 4WD, All Trims)
• 2007-2014 GMC Yukon (Front, 2WD & 4WD, All Trims)

Fitment Notes

• Does NOT fit vehicles equipped with Magnetic Ride Control (MRC) / Magnetic Suspension - the Magnetic Ride Control system uses electromagnetic dampers that are incompatible with this coilover assembly. Verify your vehicle's suspension type before ordering.
• Requires aftermarket upper control arms (UCAs) - the factory upper control arms are not long enough to accommodate the increased suspension travel at the 4-6.5 inch lift range this kit is designed for. Extended UCAs must be installed alongside this kit for proper geometry and alignment.
• Designed specifically for 4 to 6.5 inches of front lift - this is a specific-travel kit for vehicles already running or planning to run a substantial lift. For stock-to-3" lift applications, FOX offers different part numbers with shorter travel lengths.
• Coilovers are pre-set to maximum lift height out of the box - spring preload can be adjusted down from there by threading the lower spring perch collar to reduce lift height within the 4-6.5" range.
• Front position only - this kit replaces the factory front strut and spring assembly only. Rear shocks are sold separately.
• Sold as a pair - 2 complete front coilover assemblies (left and right).

Features

• 2.5" smooth bore seamless alloy steel body - the 2.5" diameter body is larger than standard 2.0" truck shocks, providing substantially increased piston surface area for more precise damping force control, more oil and nitrogen capacity, and greater heat tolerance under sustained off-road use compared to smaller-diameter OEM or entry-level aftermarket shocks.
• External remote reservoir - the separate reservoir canister connects to the main shock body via a hose, dramatically increasing total oil and nitrogen volume beyond what a body-only shock can hold. This additional capacity delays shock fade under hard consecutive hits and sustained high-speed trail running, maintaining consistent damping performance throughout extended off-road use.
• Application-specific valving - the compression and rebound valving is tuned specifically for the weight, geometry, and lift configuration of the Silverado/Sierra/Tahoe/Suburban/Yukon 1500 platform at the 4-6.5" lift range, delivering the correct balance of low-speed body control and high-speed impact compliance for this specific application rather than using a generic tune.
• 3.0" Eibach application-specific racing springs - co-developed with Eibach's motorsport spring engineering team, the coil springs installed on these units are rate-matched to the shock valving and vehicle weight distribution for this application. The 3.0" inner diameter spring mounts directly to the coilover's threaded lower perch.
• 7/8" hardened NitroSteel carbon steel shaft - the larger 7/8" shaft diameter provides significantly greater bending load resistance compared to smaller OEM shafts, and the NitroSteel (nitrogen-treated) surface hardening process creates a harder outer layer that resists scoring, pitting, and seal wear for extended service life.
• Zinc-plated and double-clear coated body - the zinc electroplating plus dual clear coat finish provides layered corrosion protection against mud, water, road salt, and trail debris, maintaining the shock body's integrity and appearance in all operating environments.
• Black anodized CNC machined billet aluminum components - all aluminum hardware including the spring perch collar, reservoir end cap, and mounting hardware are machined from billet aluminum and hard anodized for lightweight strength and corrosion resistance.
• Adjustable spring preload - the threaded lower spring perch collar allows ride height adjustment within the kit's 4-6.5" lift range without tools beyond the included spanner wrench, allowing fine-tuning of front stance, leveling, or accommodation of added front-end weight from accessories.
• Race-derived technology in a bolt-on format - FOX's Factory Series brings the damping technology and construction standards developed through FOX's professional off-road racing programs (Baja, trophy trucks, short course) to a direct-fit bolt-on kit that installs without fabrication.
• Made in the USA - designed and manufactured by FOX Factory, Inc.

Specifications

• Part Number: 883-02-059
• Series: FOX 2.5 Factory Series Coilover with Remote Reservoir
• Position: Front (Left and Right)
• Application: 2007-2018 Chevy Silverado 1500, 2007-2014 Suburban 1500, 2007-2015 Tahoe, 2007-2018 GMC Sierra 1500, 2007-2014 Yukon
• Lift Range: 4-6.5 inches (front)
• Body Diameter: 2.5 inches
• Body Material: Smooth Bore Seamless Alloy Steel
• Body Finish: Zinc-Plated, Double-Clear Coated (Black/Zinc)
• Reservoir: External Remote Reservoir (2.5" smooth bore seamless alloy)
• Shaft Diameter: 7/8 inch
• Shaft Material: Hardened NitroSteel Carbon Steel
• Hardware Finish: Black Anodized CNC Machined Billet Aluminum
• Springs Included: Yes - 3.0" Eibach Application-Specific Racing Springs
• Valving: Application-Specific (non-adjustable compression/rebound)
• Extended Length: 24.290 inches
• Collapsed Length: 18.350 inches
• Travel: 5.940 inches
• Pre-Set Height: Maximum lift height (adjustable downward via threaded perch)
• Magnetic Suspension Compatibility: NOT compatible - excludes vehicles with Magnetic Ride Control
• Required Additional Parts: Aftermarket Upper Control Arms (not included)
• Quantity: Sold as a pair (2 coilover assemblies)
• Hardware Included: Yes (washers, bushings, nuts)
• Country of Origin: USA
• Warranty: 1-year limited warranty (original retail purchaser)

Included Components

• 2x FOX 2.5 Factory Series Coilover Assemblies - Front Left and Front Right (Zinc/Black, complete with remote reservoir, Eibach springs, and pre-set to maximum lift height)
• 1x Hardware Kit (washers, bushings, nuts)

Product Description

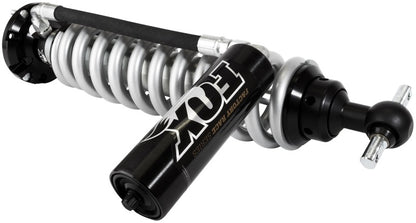

The FOX 883-02-059 is a pair of front 2.5 Factory Series coilover assemblies with external remote reservoirs, purpose-built for 2007-2018 Chevrolet Silverado 1500, 2007-2014 Suburban 1500, 2007-2015 Tahoe, 2007-2018 GMC Sierra 1500, and 2007-2014 Yukon trucks and SUVs running 4 to 6.5 inches of front lift. These coilovers replace the factory front strut and spring assembly entirely, providing a single integrated unit that handles both vehicle support (via the 3.0" Eibach racing coil spring) and damping (via the FOX 2.5 monotube with external reservoir) in one bolt-on assembly. The 2.5" smooth bore seamless alloy body is substantially larger than standard OEM struts and entry-level 2.0" aftermarket shocks, providing increased piston surface area for more precise damping force control and greater thermal capacity. The external remote reservoir extends oil and nitrogen volume beyond the main body's limits, ensuring consistent damping performance under sustained off-road heat loading where body-only shocks begin to fade.

Application-specific valve tuning is a defining feature of this kit - the compression and rebound valving was developed specifically for the weight, center of gravity, and suspension geometry of the K2XX GMT900 platform at this lift range, rather than adapted from a universal tune. The 7/8" NitroSteel carbon steel shaft provides the bending load resistance needed for the forces generated at this lift height under heavy off-road use, and the billet aluminum spring perch collar threads to adjust ride height within the 4-6.5" range without tools. The coilovers ship pre-set to maximum height and can be adjusted down to the minimum 4" range by threading the collar upward.

Two critical installation requirements: this kit requires aftermarket upper control arms (UCAs) - the factory arms cannot accommodate the geometry change at this lift range - and it is not compatible with vehicles equipped with Magnetic Ride Control (MRC) suspension. These exclusions apply to all Silverado/Sierra/Tahoe/Suburban/Yukon 1500 models in the fitment range equipped with the factory Magnetic Ride Control option. Backed by FOX's 1-year limited warranty and made in the USA, the 883-02-059 brings the same damping technology used in FOX's professional off-road racing programs to a direct bolt-on truck application.
