FOX 983-02-085 Front Coilovers for 12-16 Ford Ranger T6 0-2in Lift

Vehicle Fitment

• 2012-2016 Ford Ranger T6 (Front, 0-2in lift, 4WD)
• 2012-2016 Ford Ranger T6 Hi-Rider (Front, 0-2in lift, 2WD)
• Fitment confirmed through 2016 from multiple trusted sources.
• Some retailer data suggests 2017-2018 coverage, but that was not consistently cross-validated across trusted sources to the same T6/Hi-Rider standard, so it is excluded here.

Features

• FOX 2.0 Performance Series front coilover IFP shock
• Internal Floating Piston separates shock oil from high-pressure nitrogen
• Vehicle-specific performance tuning for Ranger T6 applications
• Threaded preload adjustment supports front ride-height leveling
• 0-2in front lift capability
• Impact-extruded aluminum body helps dissipate heat faster than steel
• Monotube design improves damping consistency on- and off-road
• Black anodized CNC-machined aluminum components
• Direct-fit front coilover configuration with stock-style upper mount
• Built to improve front-end control, stability, and ride quality

Specifications

• Position: Front
• Shock type: 2.0 Performance Series coilover IFP shock
• Body diameter: 2.0in
• Lift range: 0-2in front
• Extended length: 44.15in
• Collapsed length: 38.97in
• Stroke: 5.18in
• Upper mount: Stock
• Lower mount: Eyelet
• Coilover type: Non-adjustable damping, threaded preload adjustment
• Quantity: 1x shock sold individually

Included Components

• 1x Front coilover IFP shock
• 1x Coil spring assembly
• 1x Installation hardware set

Product Description

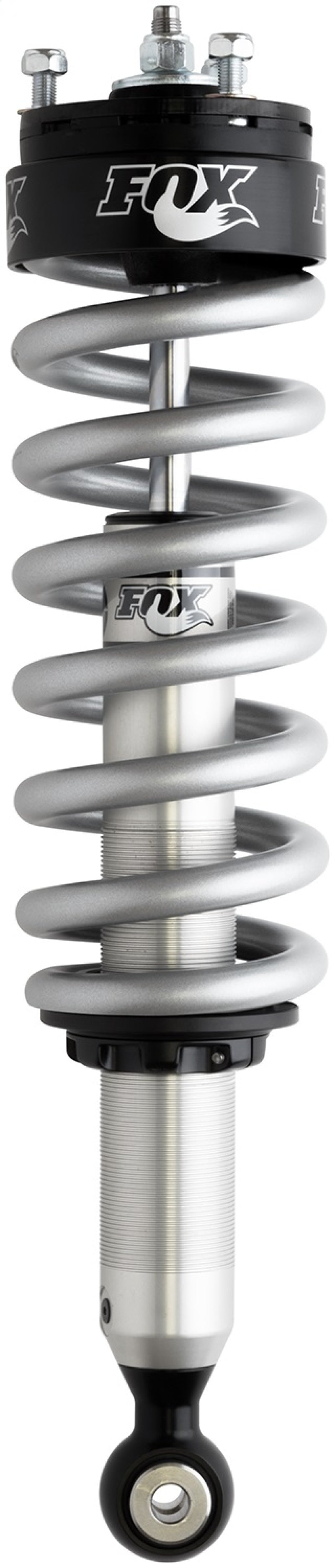

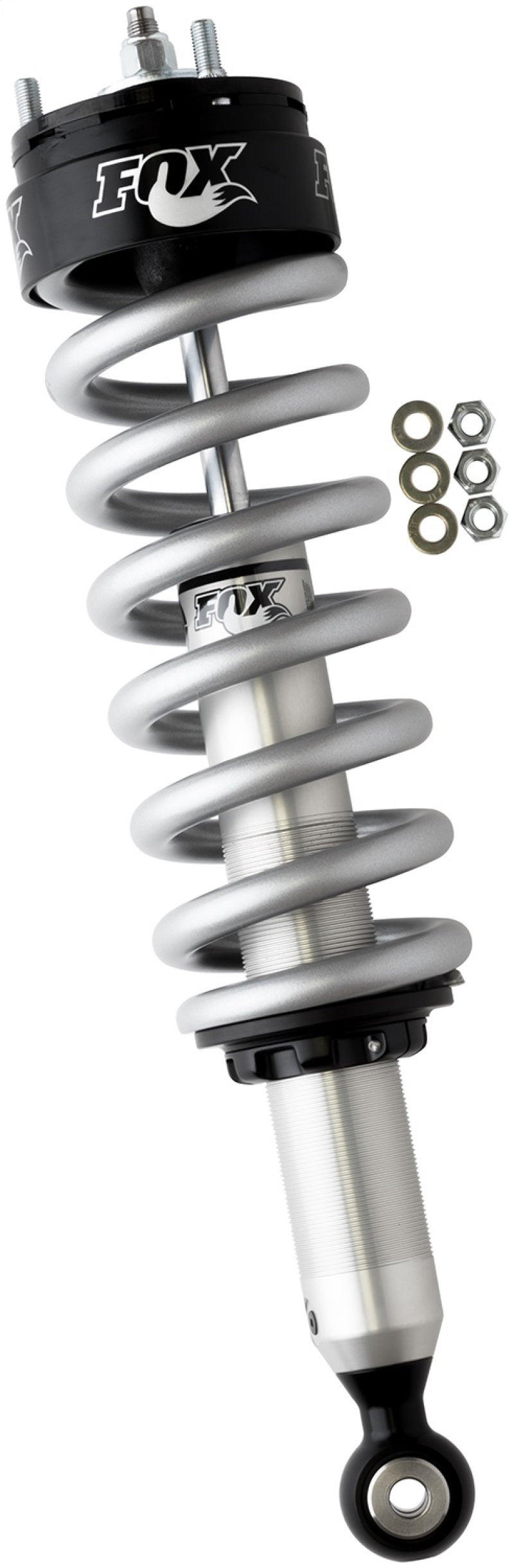

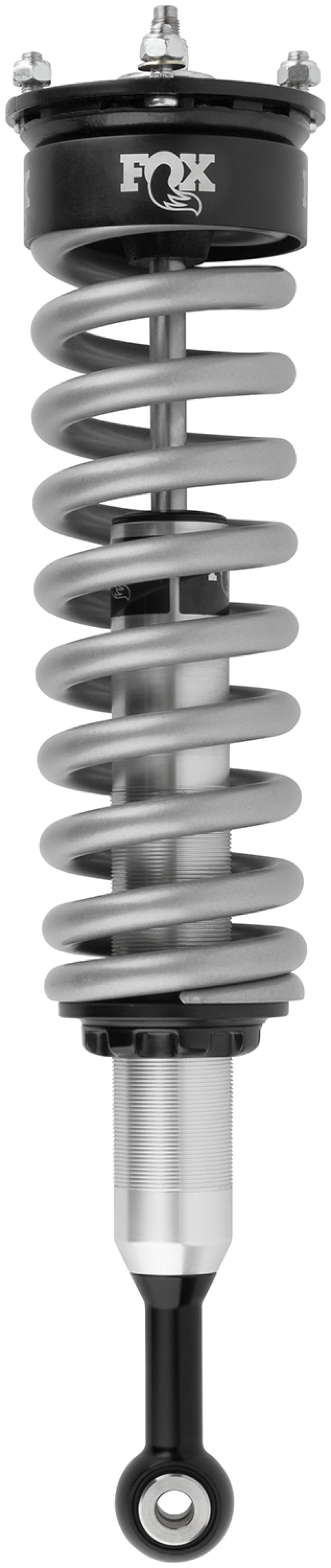

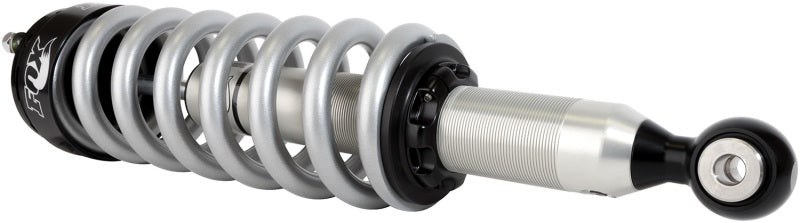

The FOX 983-02-085 is a 2.0 Performance Series front coilover IFP shock for the 2012-2016 Ford Ranger T6 platform. It is designed to improve front suspension control, ride quality, and damping consistency compared with stock suspension, while also allowing up to 2 inches of front lift for a leveled stance and additional clearance. The 0-2 inch figure applies to the front only; rear lift is not provided by this part number.

Verified fitment supports 2012-2016 Ford Ranger T6 4WD models and 2012-2016 Ranger T6 Hi-Rider 2WD models. Confirmed specifications include a 44.15-inch extended length, 38.97-inch collapsed length, 5.18-inch stroke, stock-style upper mount, and eyelet lower mount. This is a vehicle-specific front application and should not be assigned to non-T6 Ranger platforms or unrelated North American Ranger applications without separate confirmation.

This coilover is best suited for daily-driven and off-road-oriented Ranger builds that need improved front-end damping and mild lift without moving to a remote-reservoir setup. Fitment beyond the applications listed above was not consistently validated across trusted sources, so it is not included here.
