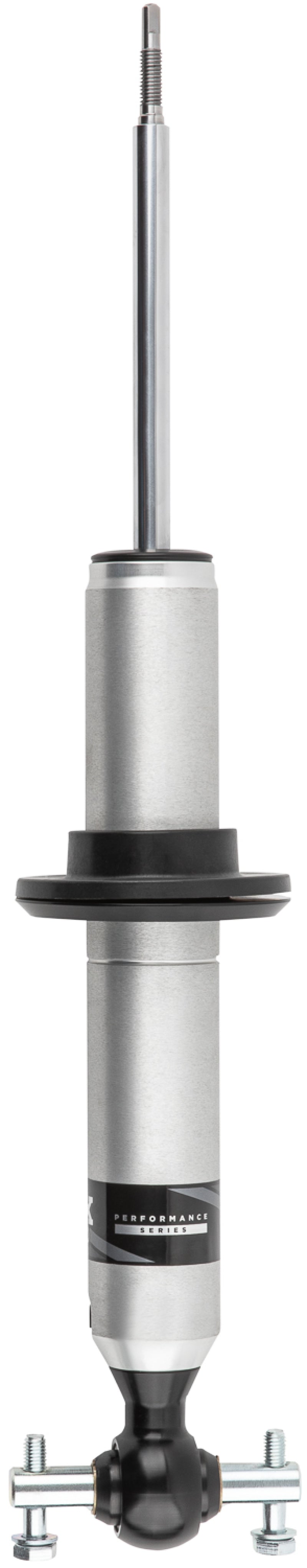

Fox 985-62-004 2.0 Front Snap Ring Coilover for 07-13 Silverado/Sierra 1500

Vehicle Fitment

• 2007-2013 Chevrolet Silverado 1500 (2WD/4WD, V6 & V8)
• 2007-2013 GMC Sierra 1500 (2WD/4WD, V6 & V8)

Features

• Fox Performance Series 2.0 Snap Ring Internal Floating Piston (IFP) front shock
• 0"-2" adjustable front lift via preload settings (0", 1", 2")
• Impact-extruded clear-anodized 6061-T6 aluminum body resists corrosion
• Internal floating piston separates nitrogen gas from oil for consistent damping
• Race-developed high-flow piston design for improved control
• Large diameter spherical bearing for durability
• Custom spring seat reuses stock coil springs and hardware
• Direct replacement for OE front shocks

Specifications

• Part Number: 985-62-004
• Position: Front
• Series: 2.0 Performance
• Reservoir Type: Internal Floating Piston (IFP)
• Extended Length: ~20.12"
• Compressed Length: ~15.71"
• Shock Travel: ~4.40"
• Body Diameter: 2.0"
• Mounts: Upper stud, lower eyelet/bar pin
• Sold individually (1x shock)
• Spring: Not included (reuses factory coil spring)

Included Components

• 1x Fox 2.0 Performance Series Front Snap Ring Coilover Shock (985-62-004)
• Preload adjustment rings

Product Description

The Fox 985-62-004 Performance Series 2.0 Front Snap Ring Coilover is a direct-fit suspension upgrade for 2007-2013 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It replaces the factory front shocks with a performance-oriented monotube design that separates oil from nitrogen gas using an Internal Floating Piston (IFP), giving you more consistent damping and improved handling both on-road and off-road. The 2.0" aluminum body is lightweight yet durable, resisting corrosion and heat build-up during demanding use.

With preload adjustment settings for 0", 1", or 2" of front lift, these shocks can help level the truck or provide extra ground clearance without changing your factory coil springs. The custom spring seat allows reuse of existing springs and mounting hardware, making installation straightforward. Sold individually, it's recommended to replace both front shocks together for balanced performance.
