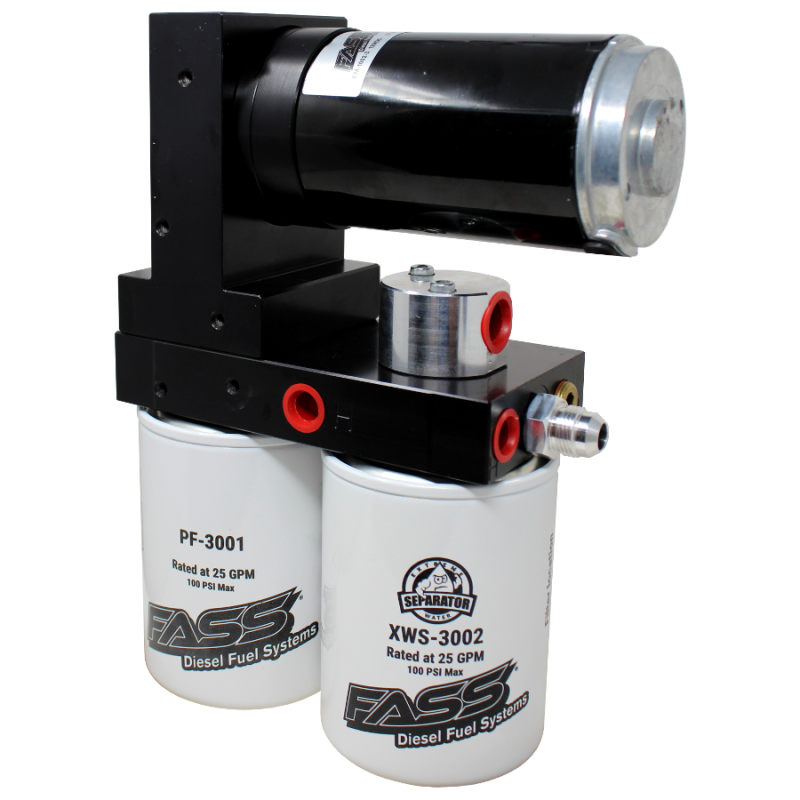

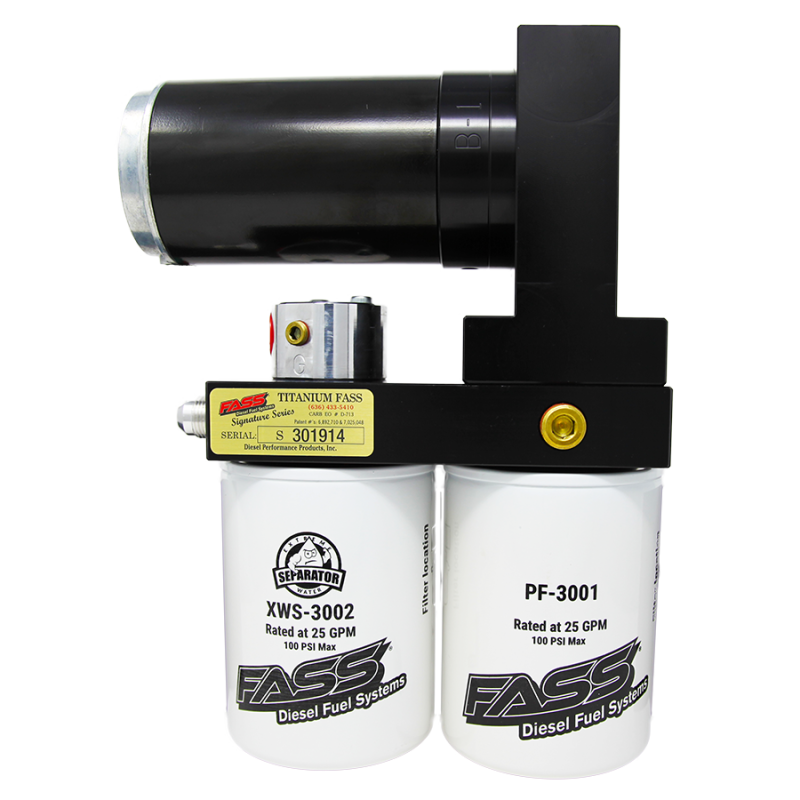

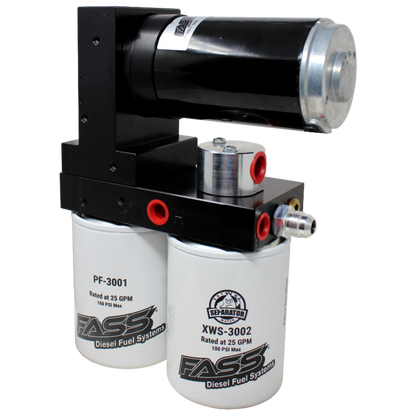

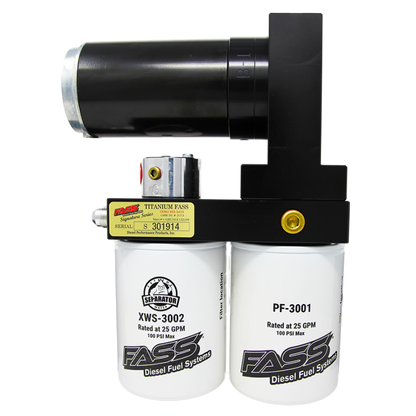

FASS TSN16140F110G 110gph Fuel Lift Pump System for 16-19 Nissan Titan XD Diesel

Vehicle Fitment

• 2016-2019 Nissan Titan XD 5.0L Cummins Diesel

Fitment Notes

• Supports stock engines up to 700 horsepower
• Installation on cab and chassis configurations may require modifications
• Complete bolt-on installation - no drilling or welding required
• Fuel sump kit recommended for simplified installation (FASS SK5501, sold separately)
• Professional installation recommended

Features

• FASS Whisper Technology (FWT) drastically reduces operating noise to a whisper while increasing fuel flow rates
• Performance Radius Cuts (PRC) create smooth flowing passages to prevent air/vapor reintroduction
• Mass Flow Return (MFR) technology continuously polishes fuel for maximum cleanliness
• Patented air/vapor removal process eliminates harmful contaminants
• Removes water, air, and debris from diesel fuel before reaching injection system
• 2 micron filtration rating for superior injector protection
• Protects and extends the life of injection pump and injectors
• Improved cold weather starting performance
• Smoother engine idle and improved throttle response
• Fuel mileage improvement through cleaner, more efficient combustion
• Decreases carbon monoxide and carbon dioxide emissions
• 1/2 inch fuel lines and ports for maximum flow capacity
• Optional electric heater ports for extreme cold weather operation
• Optional fuel pressure gauge port for monitoring
• Bolt-on mounting brackets made from machined steel for superior strength
• 1,000,000 mile motor design with less than 2% failure rate
• 30,000 mile filter life expectancy
• Quietest aftermarket diesel fuel system motor on the market

Specifications

• Part Number: TSN16140F110G
• Supersedes Part Number: TS N16 110G
• Brand: FASS Diesel Fuel Systems
• Series: Titanium Signature Series
• Type: Diesel Fuel Air Separation System / Lift Pump
• Flow Rate: 110 GPH (Gallons Per Hour)
• Flow Rate at 80 PSI: 125 GPH
• Fuel Pressure: 78 PSI
• Horsepower Support: Stock to 700 HP
• Filtration Rating: 2 Micron
• Filter Life Expectancy: 30,000 Miles
• Fuel Line Size: 1/2 Inch
• Mounting Style: Bolt-On Brackets
• Bracket Material: Machined Steel
• Motor Rating: 1,000,000 Miles
• Country of Origin: USA
• Warranty: FASS Limited Lifetime

Included Components

• (1) FASS TSN16140F110G Titanium Signature Series Fuel System
• (1) Fuel Filter Set (XWS-3002 Water Separator / PF-3001 Particulate Filter)
• (1) Bolt-On Mounting Bracket Assembly
• (1) Wiring Harness
• (1) Fuel Line Kit
• Complete Installation Hardware
• Installation Instructions

Product Description

The FASS TSN16140F110G Titanium Signature Series Diesel Fuel System delivers 110 gallons per hour of clean, air-free fuel to your 2016-2019 Nissan Titan XD 5.0L Cummins diesel engine, supporting power levels from stock up to 700 horsepower. Engineered by FASS Diesel Fuel Systems to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry, this Titanium Signature Series unit represents the pinnacle of fuel air separation technology. The system features FASS Whisper Technology (FWT), developed over two and a half years of testing to meet the demands of today's quiet diesel engines while actually increasing fuel flow rates compared to noisier competitors. Performance Radius Cuts (PRC) throughout the aluminum housing create smooth flowing passages that prevent the reintroduction of air and vapor, unlike competitors who use restrictive T-bone and square 90-degree fittings. Mass Flow Return (MFR) technology continuously polishes your fuel by maintaining positive pressure to prevent cavitation while returning unused fuel through the filtration process, ensuring your Titan XD always has the cleanest fuel possible.

The 2-micron filtration rating captures harmful particulates before they can damage expensive injectors and injection pumps, effectively extending component life and reducing maintenance costs. Optional electric heater ports enable extreme cold weather operation when combined with FASS fuel heater accessories. The bolt-on mounting bracket system eliminates the drilling and welding required by older designs, making installation straightforward with machined steel brackets for superior strength and support. Backed by FASS's Limited Lifetime Warranty and featuring a 1,000,000-mile motor with less than 2% failure rate industry-wide, this fuel system delivers improved throttle response, smoother idle, better fuel economy, and the peace of mind that comes from protecting your Cummins investment.
