Eaton 14244-1 Electronic ELocker Differential for 2018-25 Jeep Wrangler JL Dana

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL / JL Unlimited (rear axle, Dana 35 M200, 2-Door & 4-Door, 3.6L V6 / 2.0L Turbo I4 / 4xe / all trim levels except Rubicon full-float heavy axle versions)

Fitment Notes

• Does **not** replace factory OEM electronic locker
• Does **not** fit vehicles with full-float Dana 44 HD rear axle
• Stator must be removed for clearance prior to installing the ring gear; reinstall in order: (1) Ring Gear, (2) Stator Assembly, (3) Bearing

Features

• Selectable electronic "ELocker" differential: open-mode for street; locked-mode for maximum traction
• Works in forward and reverse when locked
• 29 spline axle shaft design for rear Dana 35 (M200) application
• Accepts all gear ratios (no need to match ring & pinion before installation)
• Net-forged internal gears for strength and durability in off-road conditions
• Electromagnetic locking mechanism with dash switch activation (wiring harness included)
• Designed for rear axle use, with sealed, rugged design built for off-road, towing, trail use
• Durable steel carrier material, eight cover bolts, compatible with all ring gear ratios

Specifications

• Rear position (axle: Dana 35 / M200)
• 29 spline count on axle shafts
• Axle shaft diameter approx. 1.24-1.25 in (≈ 31.5-31.75 mm)
• Carrier material: steel
• Number of cover bolts: 8
• Ring gear ratio: all (compatible with all OEM and aftermarket ring & pinion ratios)
• Product weight: ~21.37 lb
• Rear axle flange standard for 2018-2025 JL Wrangler; works with both 2-door & 4-door body styles (Unlimited) with the Dana 35 rear axle; all drivetrains (4WD)

Included Components

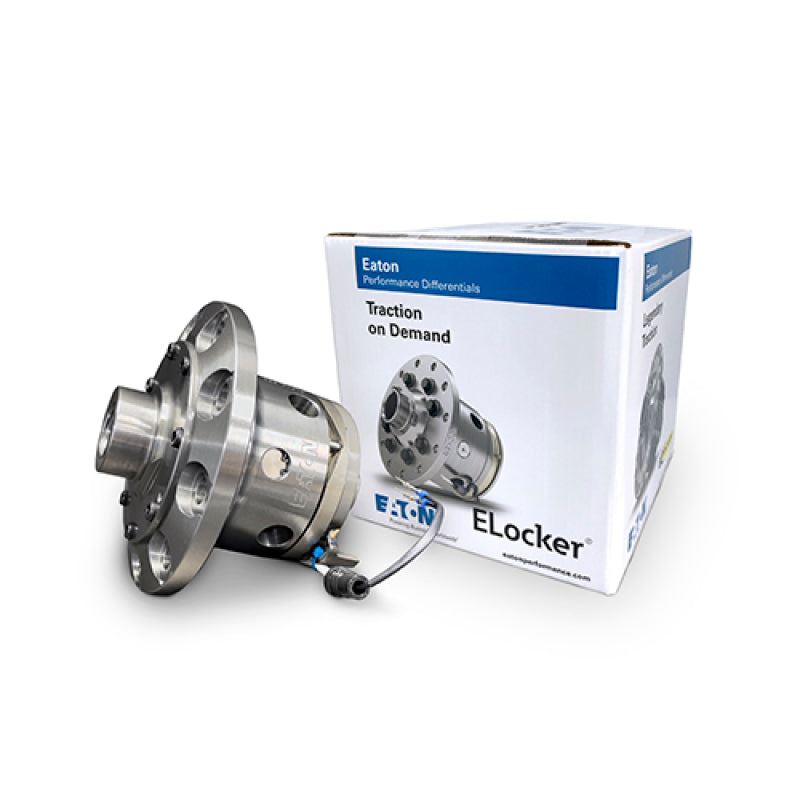

• 1x Eaton 14244-1 ELocker Differential Carrier Assembly
• 1x Wiring Harness with Toggle / Rocker Switch

Product Description

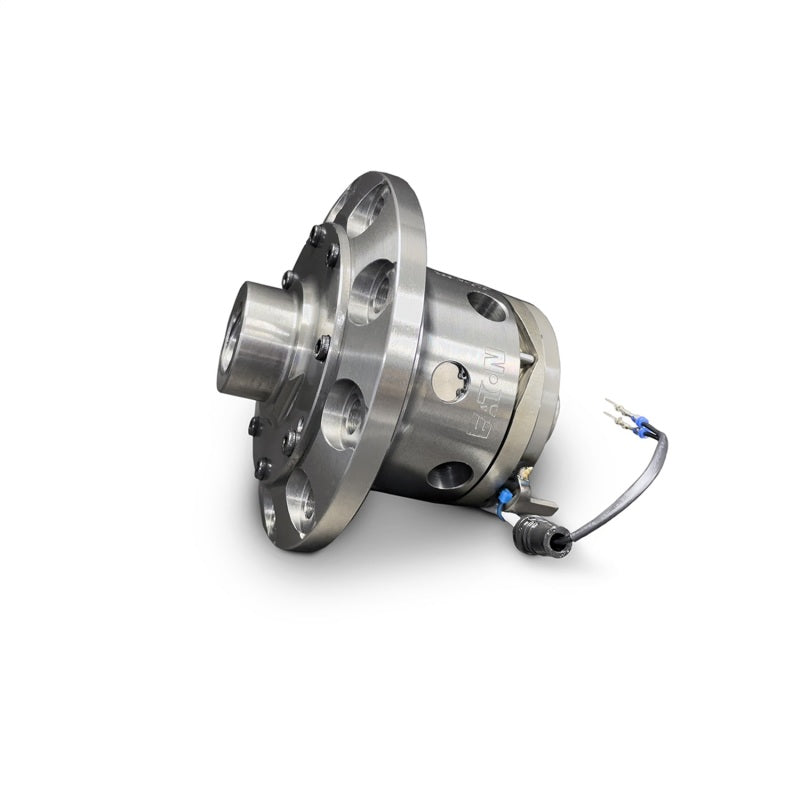

The Eaton 14244-1 ELocker is a premium aftermarket electronic locking differential designed to upgrade the rear Dana 35 (M200) axle of Jeep Wranglers JL and JL Unlimited (2018 through 2025). It allows the driver to switch between an open differential for smooth, quiet driving and a fully locked state when extra traction is needed. This makes it ideal for off-road trails, towing, sand, snow, or any situation where the stock axle begins to slip. The internal gears are net-forged and the case is built with heavy-duty steel for long life. Fitment supports all OEM and aftermarket ring and pinion ratios, making it versatile for geared setups without needing additional modifications.

Installation requires removal of the stator for clearance before seating the ring gear and must be reinstalled in a specific sequence: ring gear first, then stator assembly, then bearing. Vehicles already equipped with the factory electronic locker are not replaced by this unit. Also, the Eaton 14244-1 does not support full-float Dana 44 rear axles or the Rubicon's heavy duty rear axle unless that axle matches the Dana 35 specifications (which it does not). Fitment is confirmed through 2025.
