Diode Dynamics DD8039 SSC1 Type G3M SAE Fog Light Kit GM Trucks SUVs 2020-2026

Vehicle Fitment

• 2020-2023 Buick Encore GX (All Trims)
• 2023-2026 Chevrolet Colorado (All Trims)
• 2024-2026 Chevrolet Silverado 2500HD/3500HD ZR2 Bison (All Engines)
• 2021-2023 Chevrolet Trailblazer (All Trims)
• 2025-2026 Chevrolet Suburban (All Trims)
• 2025-2026 Chevrolet Tahoe (All Trims)
• 2023-2026 GMC Canyon (All Trims)
• 2022-2026 GMC Sierra 1500 AT4X (AT4X Trim Only)
• 2024-2026 GMC Sierra 2500HD/3500HD (All Trims, All Engines)
• 2025-2026 GMC Terrain (All Trims)
• 2025-2026 GMC Yukon (All Trims)
• 2025-2026 GMC Yukon XL (All Trims)

Fitment Notes

• This kit is a direct bolt-on replacement for OEM factory fog lamps - existing factory fog light assemblies are removed and this kit installs into the same location using factory mounting points. No cutting or drilling required.
• Bracket fitment applies to vehicles equipped with factory fog light openings in the bumper. Not compatible with vehicles that did not come equipped from the factory with fog lights.
• The custom 3D-printed brackets are designed and produced by Foxbeam Lighting, an authorized Diode Dynamics bracket partner. Brackets are manufactured from high-quality glass-filled plastic for superior weather resistance and long-term durability.
• Two DT-to-H11 adapter wires are included, allowing plug-and-play connection to the factory fog light harness - no additional wiring or modification required.
• A backlight tap T-harness is included to connect the SSC1 pod's amber backlight to OEM DRL or marker light circuits for an integrated accent light effect.
• Available in White (6000K) or Yellow (3000K) output, and in Sport (10W) or Pro (20W) power levels - select the desired configuration when ordering.
• Snap-on covers (sold separately) are available for jurisdictions requiring fog light covers when not in use.

Features

• SSC1 ultra-compact single-LED pod design delivers significantly higher output than factory halogen fog lamps - SAE J583 fog beam pattern provides a wide 98°+ spread for full-width illumination of the roadway in front of the vehicle.
• Custom-engineered TIR optic collects all light from the LED and directs it only where needed - drastically reducing glare and improving total efficiency compared to reflector-based or simple-lens fog light designs.
• Available in Sport (10W) and Pro (20W) power levels - both use the same high-quality TIR optic and produce road-legal SAE J583-compliant output; the Pro level delivers approximately double the raw power of Sport.
• Available in White 6000K (cool white, matches factory LED lighting) and Yellow 3000K (selective yellow, reduces glare in fog, rain, and snow for enhanced contrast).
• Integrated amber backlight fully illuminates the TIR optic for a distinctive accent lighting effect - can be wired to OEM DRLs or marker lights using the included T-tap harness.
• One-piece custom bracket and bezel assembly provides a clean, factory-style finished appearance in the fog light opening - no visible gaps or misfit common with generic aftermarket brackets.
• 3D-printed Foxbeam brackets are manufactured from glass-filled plastic for superior weather resistance, dimensional stability, and long-term durability in all climates.
• Plug-and-play installation using included DT-to-H11 adapter wires - connects directly to the factory fog light harness connector with no wire cutting or splicing.
• SAE J583 compliant when installed as a pair and aimed in accordance with state regulations - fully road-legal for on-road use as fog lights.
• Engineered and assembled in the USA, backed by Diode Dynamics' 8-Year Limited Warranty.

Specifications

• Part Number: DD8039
• Product Name: SSC1 Type G3M SAE Fog Light Kit
• Pod Type: SSC1 (Stage Series C1) - 1-inch ultra-compact single-LED format
• Bracket Type: G3M (Foxbeam 3D-printed glass-filled plastic, vehicle-specific)
• Beam Pattern: SAE J583 Fog (98°+ wide horizontal spread, sharp cutoff)
• Output Colors Available: White (6000K) or Yellow (3000K)
• Power Levels Available: Sport (10W) or Pro (20W)
• Backlight Color: Amber (integrated, always amber regardless of main beam color)
• LED Emitter: Osram Boost HX (Pro); high-intensity single-chip (Sport)
• Optics: Custom-engineered TIR (Total Internal Reflection)
• Connector: Deutsch DT Input (with included DT-to-H11 adapter wires)
• Operating Voltage: 9-16V DC
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: SAE J583 (Fog), SAE J575 Durability Test
• Housing Material: Powdercoated aluminum (pod); glass-filled plastic (bracket)
• Cooling: Passive pin-fin heatsink
• Modification Required: None - direct bolt-on replacement
• Installation Time: ~1 hour
• Warranty: 8-Year Limited
• Country of Assembly: United States (pods); Foxbeam brackets produced to Diode Dynamics specification

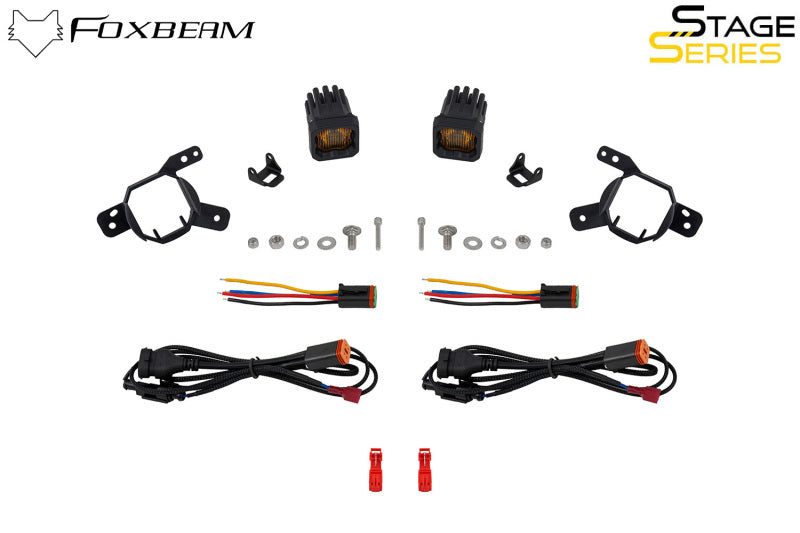

Included Components

• 2x SSC1 Stage Series C1 LED Pods (in selected color and power level)
• 2x Foxbeam Type G3M custom 3D-printed bezels/brackets (left and right, vehicle-specific)
• 2x DT-to-H11 adapter wires (plug-and-play factory fog harness connection)
• 2x Backlight tap T-harness wires (for connecting amber backlight to DRL or marker circuit)
• Mounting hardware

Product Description

The Diode Dynamics DD8039 SSC1 Type G3M Fog Light Kit delivers a direct bolt-on LED fog light upgrade for a broad range of GM trucks and SUVs spanning the 2020-2026 model years, including the Chevrolet Colorado, Silverado HD ZR2 Bison, Trailblazer, Suburban, and Tahoe, as well as the GMC Canyon, Sierra 1500 AT4X, Sierra 2500HD/3500HD, Terrain, Yukon, and Yukon XL - plus the Buick Encore GX. At the center of the kit are SSC1 Stage Series C1 LED pods, Diode Dynamics' ultra-compact single-LED format built around a custom-engineered TIR optic that delivers an SAE J583-compliant fog beam with a wide 98°+ horizontal spread and a sharp upper cutoff that prevents glare to oncoming drivers. Output is road-legal and significantly brighter than factory halogen fog lamps in both the Sport (10W) and Pro (20W) power levels.

The bracket and bezel assembly for this kit is produced by Foxbeam Lighting, an authorized Diode Dynamics bracket partner. The custom Type G3M brackets are 3D-printed from glass-filled plastic - a material chosen for its dimensional stability, weather resistance, and long-term durability across the full temperature range of outdoor automotive use. The one-piece bracket integrates the bezel, creating a factory-finished appearance in the fog light opening with no visible gaps or misfit. Installation is plug-and-play: two DT-to-H11 adapter wires allow direct connection to the factory fog harness connector, and a T-tap backlight harness connects the SSC1's integrated amber backlight to the OEM DRL or marker light circuit for an ambient accent effect when the main beam is off.

The kit is available in White (6000K, matching most factory LED lighting) or Yellow (3000K selective yellow, providing enhanced contrast and reduced backscatter in fog, rain, and snow conditions), and in Sport or Pro power levels to match the buyer's output and budget priorities. When installed as a pair and aimed in accordance with state regulations, the fog beam pattern meets the SAE J583 standard for full on-road legal use as fog lights. Engineered and assembled in the USA and backed by Diode Dynamics' 8-Year Limited Warranty, the DD8039 is one of the most comprehensive factory-replacement LED fog light solutions available for modern GM truck and SUV platforms.
