DeatschWerks 16MX-07-1200-4 1200cc Injectors for '02-'14 WRX/'

Vehicle Fitment

• 2002-2014 Subaru WRX (GD/GG/GV/GR 2.0L Turbo H4; AWD)
• 2007-2021 Subaru WRX STI (GD/GG/GV/GR 2.5L Turbo H4; AWD)
• 2007-2012 Subaru Legacy GT (BL/BP 2.5L Turbo H4; AWD)
• 2007-2009 Subaru Outback XT (BP 2.5L Turbo H4; AWD)

Features

• Flow-matched Bosch EV14 DV2 injectors delivering 1200 cc/min
• High-impedance design compatible with OEM ECU
• Top-feed Minitimer extended nozzle connectors
• Supports gasoline, E85, methanol, and racing fuels
• Dynamic multi-point flow testing (<2% variance)
• Stainless steel internals for enhanced durability
• Optimized spray pattern for smooth idle and throttle response
• Comes with DeatschWerks' 3-year factory warranty

Specifications

• Flow Rate: 1200 cc/min @ 43.5 psi (nominal 1143 cc @ 43 psi; 1632 cc @ 80 psi) :contentReference[oaicite:2]{index=2}
• Impedance: ~12.4 Ω (high-impedance) :contentReference[oaicite:3]{index=3}
• Fuel Pressure Range: 40-80 psi :contentReference[oaicite:4]{index=4}
• Min Pulse Width: ~1.4 ms; Max Duty Cycle: ~93% :contentReference[oaicite:5]{index=5}
• Connector: Bosch EV14 / Minitimer extended nozzle :contentReference[oaicite:6]{index=6}
• Injector Count: 4
• Compliance: Non-CARB, not legal in California

Included Components

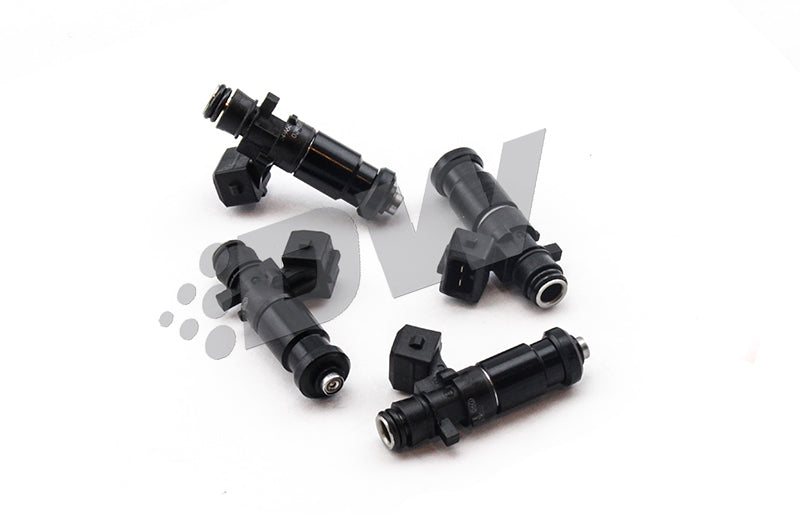

• 4x DeatschWerks Bosch EV14 1200 cc Injectors (16MX-07-1200-4)

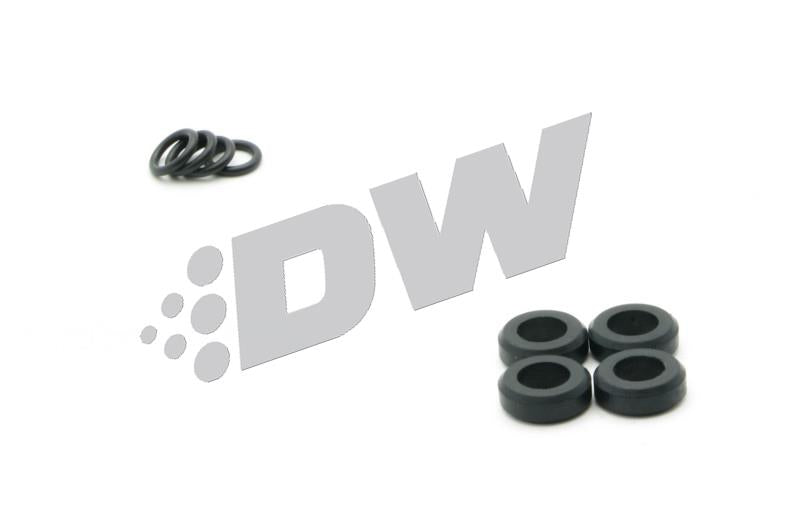

• 4x OEM-style O-rings

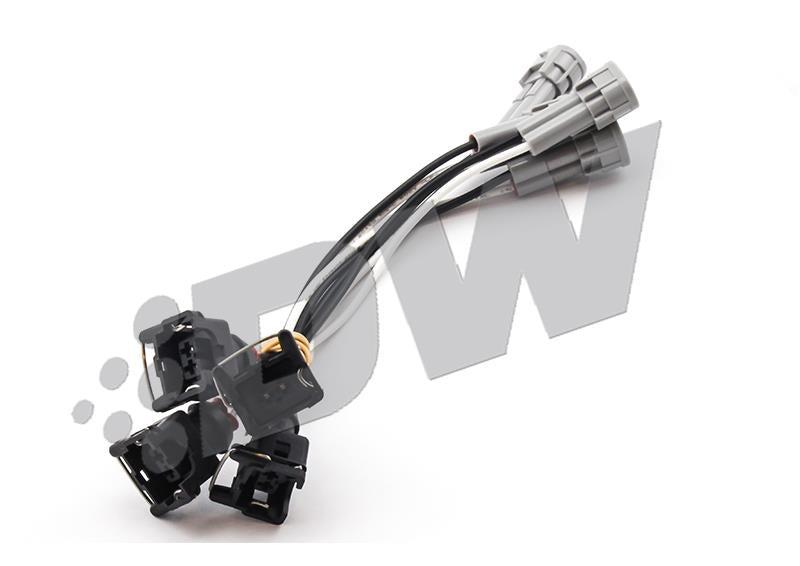

• 4x Top-feed adapter harnesses
• 1x Flow report (matched set)
• 1x Installation & tuning guide

Product Description

The DeatschWerks 16MX-07-1200-4 is a high-flow, drop-in injector set designed specifically for Subaru performance platforms - the WRX, WRX STI, Legacy GT, and Outback XT. Featuring Bosch EV14 high-impedance coils with Minitimer extended nozzle connectors, this kit supports a wide range of fuels including E85, methanol, and race blends.

With dynamic multi-point flow matching (<2% variance) and full SAE characterization, these injectors deliver precise fuel metering across various operating conditions. Constructed with stainless steel internals, they provide durability and stability under high boost and track environments.

Fitment confirmed through 2021. Estimated to support 600+ AWHP. Requires ECU tuning; no modifications needed to rails or wiring. Not CARB legal - ships to non-emissions states only. Backed by DeatschWerks' 3-year warranty.
