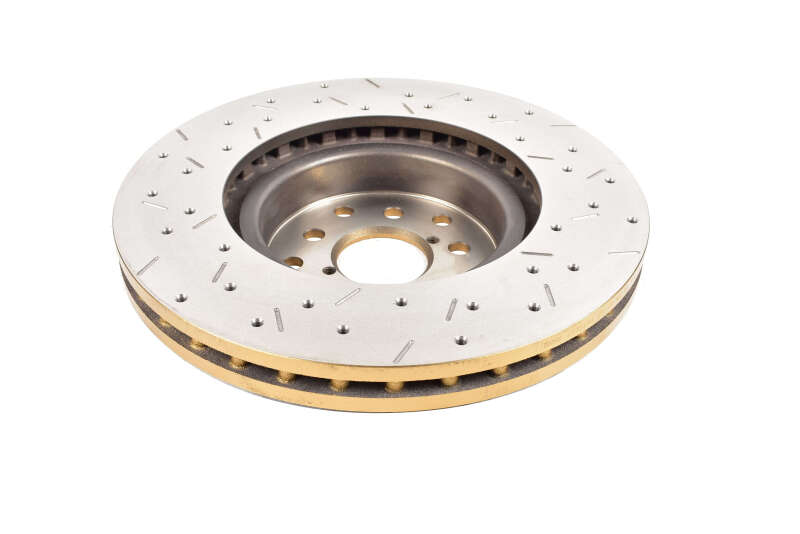

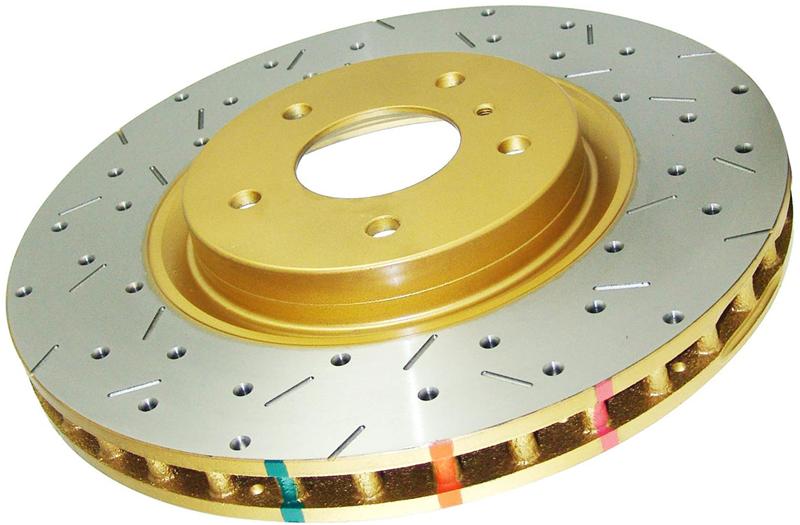

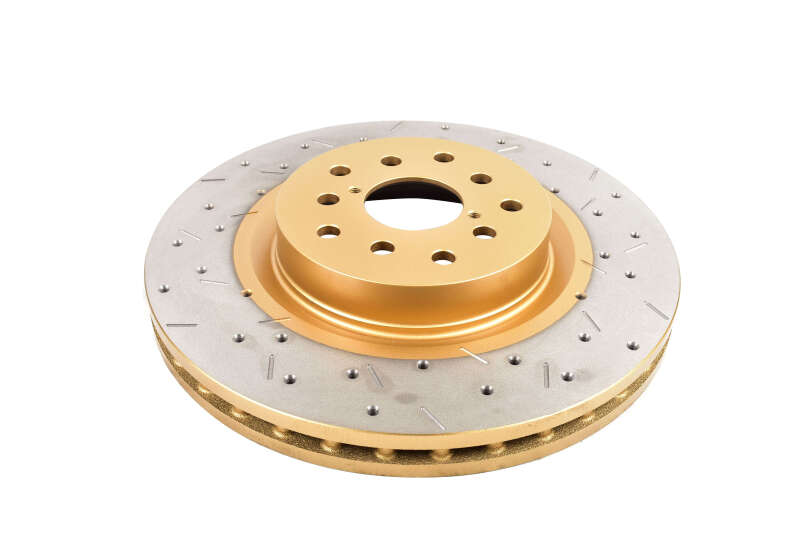

DBA 42650XS-10 4000XS Drilled/Slotted Front Brake Rotor for 2005-21 Subaru

Vehicle Fitment

• 2005-2014 Subaru Legacy (Front, AWD, 5x100 mm / 5x114.3 mm)
• 2005-2008 Subaru Legacy GT (Front, AWD, 5x100 mm / 5x114.3 mm)
• 2015-2021 Subaru WRX (Front, AWD, 5x100 mm / 5x114.3 mm)
• 2014-2017 Subaru Forester XT (Front, AWD, 5x100 mm / 5x114.3 mm)
• 2010-2013 Subaru Outback (Front, AWD, 5x100 mm / 5x114.3 mm)

Features

• Direct-replacement DBA 4000XS drilled & slotted front brake rotor
• Cross-drilled and slotted surface increases pad bite and gas exit points
• Kangaroo Paw internal ventilation improves cooling efficiency
• High carbon alloyed iron construction for strength and heat resistance
• Thermal Stability Profiling (TSP) reduces metal stress and warping
• Gold painted hat for corrosion protection and visual appeal
• Thermo-graphic paint marks indicate operating temperatures
• Universal uni-directional rotor - same part used left/right

Specifications

• Position: Front axle
• Rotor Type: Vented drilled & slotted (4000XS)
• Outer Diameter: 316 mm
• Nominal Thickness: ~30 mm
• Minimum Thickness: ~28 mm
• Centering Bore: 58 mm
• Stud/Lug Pattern: 5x100 mm and 5x114.3 mm
• Surface: Drilled & slotted with cross pattern and gold hat finish

Included Components

• 1x DBA 42650XS-10 4000XS Drilled & Slotted Front Brake Rotor

Product Description

The **DBA 42650XS-10 4000XS Drilled & Slotted Front Brake Rotor** is a performance-focused direct replacement rotor engineered to improve the front braking performance of select Subaru AWD models. Featuring a cross-drilled and slotted surface combined with DBA's Kangaroo Paw internal ventilation design, this rotor enhances pad bite and helps evacuate heat, brake dust, and gases more efficiently under spirited driving conditions or daily use. The high carbon alloyed iron construction with Thermal Stability Profiling (TSP) resists heat-induced stress and warping more effectively than conventional rotors, offering more consistent stopping power and greater durability.

Finished with a gold painted hat for corrosion resistance and visual appeal along with thermo-graphic paint markings that indicate brake operating temperatures, the DBA 4000XS rotor is designed to be a direct bolt-on replacement for compatible Subaru models including Legacy, WRX, Forester XT, and Outback across multiple year ranges. Its uni-directional design simplifies installation, and the enhanced cooling characteristics make it well suited for performance street and everyday applications.
