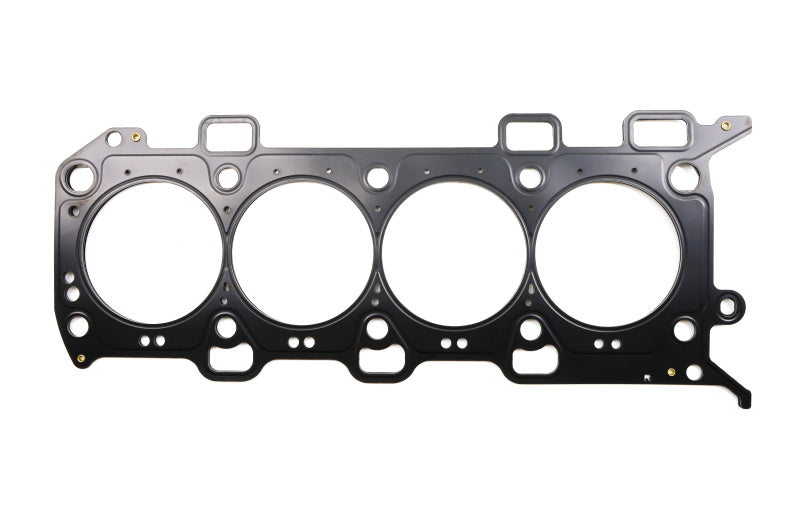

Cometic C15548-052 MLX Cylinder Head Gasket RHS 94.5mm for 18-23 Mustang GT 5.0L

Vehicle Fitment

• 2018-2023 Ford Mustang GT (5.0L Gen-3 Coyote V8 DOHC, RWD)
• 2018-2023 Ford Mustang GT Premium (5.0L Gen-3 Coyote V8 DOHC, RWD)
• 2019-2020 Ford Mustang Bullitt (5.0L Gen-3 Coyote V8 DOHC, RWD)
• 2021-2023 Ford Mustang Mach 1 (5.0L Gen-3 Coyote V8 DOHC, RWD)

Fitment Notes

• Right-hand side (RHS/passenger side) gasket only - order C15549-052 separately for the left-hand side (LHS)
• Fits Gen-3 Coyote 5.0L DOHC engines only (2018-2023) - does not fit Gen-1 (2011-2014) or Gen-2 (2015-2017) Coyote engines due to cylinder head design differences and different bore sizes
• 94.5mm bore is the stock bore diameter for Gen-3 Coyote engines (Gen-1 and Gen-2 use 92mm or 94mm bore gaskets)
• Does not fit the 5.2L Voodoo flat-plane crank V8 (GT350/GT350R) or the 5.0L Gen-4 Coyote (2024+ Mustang GT)
• MLX construction is recommended over standard MLS for supercharged, turbocharged, and nitrous applications

Features

• MLX (Multi-Layer-Xtreme) construction with integrated stopper fold-over layer for superior combustion sealing
• Multiple layers of embossed stainless steel for maximum strength and rebound capability
• HP Shim technology increases clamp load around the combustion chamber for improved sealability on the Coyote's open-deck block
• Proprietary high-temperature AMP (Advanced Multi-Polymer) coating on outer layers for micro-sealing against head and block surfaces
• Torque-limiting stopper layer prevents yielding of the combustion seal under extreme cylinder pressures
• Requires less clamp load than OEM gaskets, reducing bore distortion for improved ring seal and power
• No sealants or re-torquing required after installation
• Corrosion-resistant stainless steel construction for long service life
• The preferred upgrade over standard MLS gaskets for forced-induction and high-output Gen-3 Coyote builds
• Made in the USA at Cometic's facility in Concord, Ohio

Specifications

• Part Number: C15548-052
• Material: MLX (Multi-Layer-Xtreme Stainless Steel)
• Compressed Thickness: .052"
• Bore Size: 94.5mm (Round)
• Orientation: Right-Hand Side (RHS/Passenger Side)
• Engine Application: Ford 5.0L Gen-3 Coyote Modular V8 DOHC (305ci)
• UPC: 191070573560

Included Components

• 1x Cometic MLX Cylinder Head Gasket (Right-Hand Side)

Product Description

The Cometic C15548-052 is a premium MLX (Multi-Layer-Xtreme) cylinder head gasket designed for the right-hand side (passenger side) of the Ford 5.0L Gen-3 Coyote Modular V8 DOHC engine. With a 94.5mm stock bore diameter and .052" compressed thickness, this gasket delivers the highest level of sealing performance available for the Gen-3 Coyote platform. The MLX design features Cometic's proprietary stopper fold-over layer and HP Shim technology, which together create a torque-limiting combustion seal that resists yielding under extreme cylinder pressures - making it the top choice for supercharged, turbocharged, and nitrous-equipped Coyote builds where standard MLS gaskets may not provide adequate sealing.

This gasket fits the 2018-2023 Ford Mustang GT, GT Premium, Bullitt, and Mach 1 equipped with the Gen-3 Coyote 5.0L V8. The Gen-3 Coyote introduced a dual fuel injection system (port + direct injection), revised cylinder heads, and a larger 94.5mm bore compared to the Gen-2's 94mm, making the C15548 series specific to these model years. Builders working on Gen-1 (2011-2014) or Gen-2 (2015-2017) Coyote engines should reference the appropriate MLX series with the correct bore size, and the 2024+ Gen-4 Coyote requires a different gasket entirely due to further valve pocketing revisions.

Installation requires clean, debris-free mating surfaces with a recommended surface finish of 50 RA or finer for proper gasket seal. Cometic MLX gaskets require no supplemental sealants and do not need re-torquing after initial installation. For a complete head gasket replacement, pair this RHS gasket with the corresponding LHS gasket (C15549-052). The .052" thickness provides additional compressed height over the .040" variant, useful for fine-tuning compression ratio, accommodating head and block resurfacing, or achieving a specific deck height target in performance engine builds.
