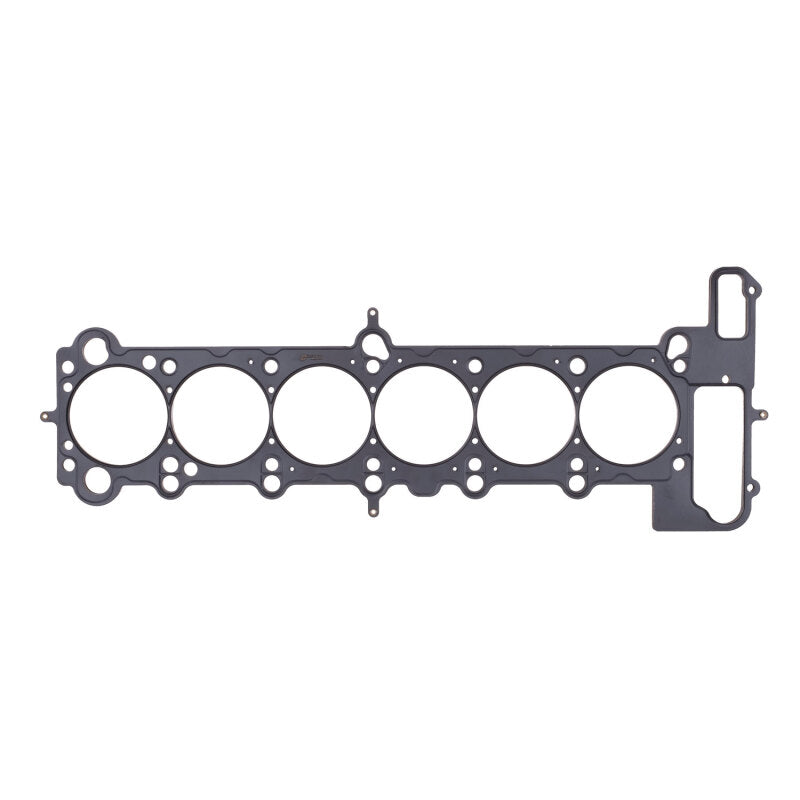

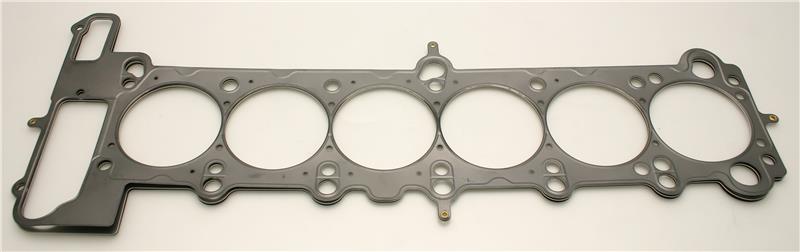

Cometic Gasket C4329-080 MLS Head Gasket for 1992-1999 BMW M3/Z3 with S50B30US

Vehicle Fitment

• 1992-1999 BMW M3 (E30/E36), Z3 M Roadster (E36/7)

Features

• Multi-Layer Steel (MLS) construction for superior sealing performance
• Compressed thickness of 0.080 inches (2.03 mm) for optimal compression
• 87 mm bore size compatible with S50B30US and S52B32 engines
• Five-layer design for enhanced durability and resistance to high pressures
• Embossed outer layers coated with Viton for improved heat resistance
• Designed for both aluminum-to-aluminum and aluminum-to-cast iron applications
• Requires no sealants during installation, simplifying the process
• Ideal for both street and motorsport applications

Specifications

• Material: Multi-Layer Steel (MLS)
• Compressed Thickness: 0.080 inches (2.03 mm)
• Bore Size: 87 mm
• Number of Layers: 5
• Bore Shape: Round
• Outer Layer Coating: Viton
• Heat Resistance: Up to 250°C (482°F)
• Orientation: Symmetrical (no specific orientation required)

Included Components

• 1x Cometic Gasket C4329-080 MLS Cylinder Head Gasket

Product Description

The Cometic Gasket C4329-080 is a high-performance MLS (Multi-Layer Steel) cylinder head gasket designed specifically for BMW S50B30US and S52B32 engines. With a compressed thickness of 0.080 inches (2.03 mm) and an 87 mm bore size, this gasket ensures a tight seal under high pressure and temperature conditions. The five-layer design provides enhanced durability, while the Viton-coated outer layers offer improved heat resistance up to 250°C (482°F), making it ideal for both street and motorsport applications.

This gasket is compatible with a range of BMW models, including the M3 and Z3 M Roadster, covering model years from 1992 to 1999. It is designed for both aluminum-to-aluminum and aluminum-to-cast iron applications and requires no sealants during installation, simplifying the process. Whether you're rebuilding your engine or upgrading for performance, the Cometic Gasket C4329-080 provides the reliability and strength needed for optimal engine performance.
