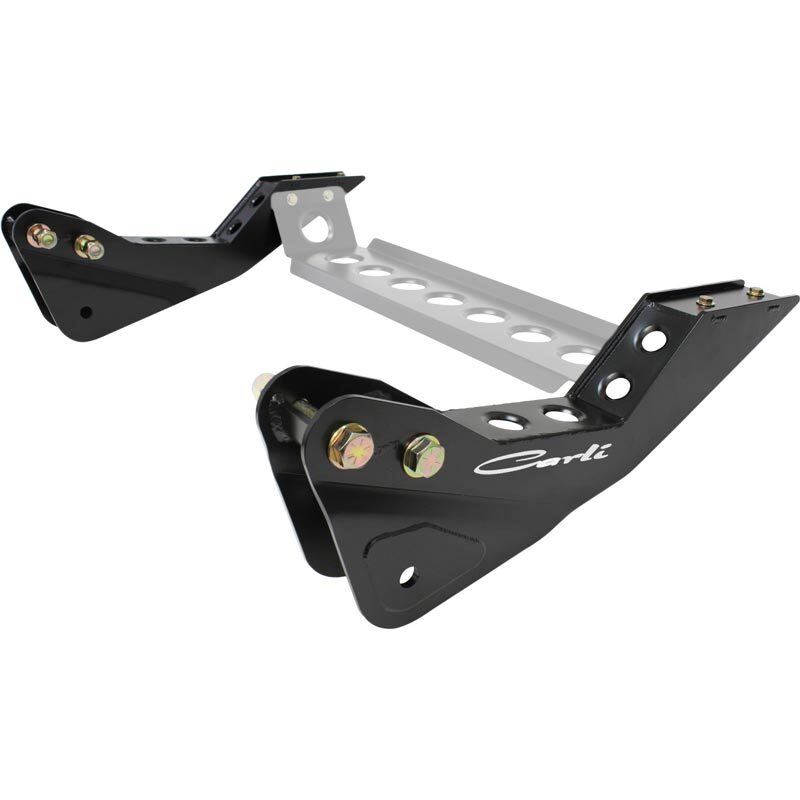

Carli AS-FRAD-05 Radius Arm Drop Brackets 4.5" Lift for 2005-2016 F-250 F-350

Vehicle Fitment

• 2005-2007 Ford F-250 Super Duty (XL, XLT, Lariat, King Ranch, 6.0L V8 Powerstroke Diesel, 5.4L V8 Triton Gas, 4x4)
• 2005-2007 Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch, 6.0L V8 Powerstroke Diesel, 5.4L V8 Triton Gas, 4x4)
• 2008-2010 Ford F-250 Super Duty (XL, XLT, Lariat, King Ranch, 6.4L V8 Powerstroke Diesel, 5.4L V8 Triton Gas, 4x4)
• 2008-2010 Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch, 6.4L V8 Powerstroke Diesel, 5.4L V8 Triton Gas, 4x4)
• 2011-2016 Ford F-250 Super Duty (XL, XLT, Lariat, King Ranch, Platinum, 6.7L V8 Powerstroke Diesel, 6.2L V8 Boss Gas, 4x4)
• 2011-2016 Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch, Platinum, 6.7L V8 Powerstroke Diesel, 6.2L V8 Boss Gas, 4x4)

Fitment Notes

• Designed exclusively for 4x4 models - does not fit 2WD trucks
• Intended for use with 4.5" front lift systems only
• Does not fit 2017+ Super Duty models - see CS-FRAD-17 for 2017-2022 applications
• This is the bracket component (AS-FRAD-05) only - crossmember is not included. For the complete kit with crossmember, see CS-FRAD-05
• Does not fit F-450 or F-550 chassis cab models

Features

• Geometrically correct design eliminates the steering wander common with typical lift kits
• Drops radius arm pivot point by 4.5 inches to restore proper suspension geometry on lifted trucks
• Constructed from heavy-duty 1/4" steel plate for maximum strength and durability
• Laser-cut and CNC-bent for precise, factory-level tolerances
• Meticulously MIG-welded construction for superior structural integrity
• Durable black powder-coat finish resists rust and corrosion
• Direct bolt-on installation - no cutting, drilling, or permanent modifications required
• Corrects driveline angles to reduce vibration and premature component wear
• Increases front suspension travel for improved off-road capability
• Designed and manufactured in the USA by Carli Suspension
• Backed by Carli Suspension's Limited Lifetime Warranty

Specifications

• Part Number: AS-FRAD-05
• Brand: Carli Suspension
• Position: Front - radius arm pivot point
• Pivot Point Drop: 4.5 inches
• Material: 1/4" high-strength steel plate
• Finish: Black powder coat
• Fabrication: Laser cut, CNC bent, MIG welded
• Installation: Bolt-on, no permanent modifications
• Drivetrain Requirement: 4x4 only
• Lift Requirement: 4.5" front lift
• Warranty: Limited Lifetime

Included Components

• 1x Carli Radius Arm Drop Bracket - Driver Side
• 1x Carli Radius Arm Drop Bracket - Passenger Side
• 1x Mounting Hardware Kit

Product Description

The Carli Suspension AS-FRAD-05 Radius Arm Drop Brackets are precision-engineered components designed to restore correct front suspension geometry on 2005-2016 Ford F-250 and F-350 Super Duty 4x4 trucks equipped with a 4.5-inch front lift. When a Super Duty is lifted, the radius arm angle changes, causing poor steering behavior, increased vibration, and accelerated wear on suspension and driveline components. The Carli drop brackets reposition the radius arm pivot point 4.5 inches lower, returning the arm to its proper operating angle and eliminating the vague, wandering steering feel that plagues many lifted trucks.

Built to the highest standards, these brackets are fabricated from 1/4-inch steel plate that is laser cut for precision, CNC bent for consistency, and expertly MIG welded for lasting structural integrity. A black powder-coat finish provides long-term protection against rust and corrosion, even in the harshest off-road environments. The fully bolt-on design means no cutting, drilling, or permanent modifications to the frame are needed, making installation straightforward for both professional shops and experienced home mechanics.

Please note that AS-FRAD-05 is the bracket component only and does not include the crossmember that is part of the full CS-FRAD-05 kit. These brackets are commonly included as a component in Carli's complete 4.5-inch Super Duty suspension systems such as the Pintop, Backcountry, Dominator, and Commuter packages. They are compatible with all gas and diesel engine options across the 2005-2016 Super Duty range, including the 6.0L, 6.4L, and 6.7L Powerstroke diesels as well as the 5.4L Triton and 6.2L Boss gas V8s.
