Camburg CAM-110234-GRY KINETIK X-Joint XL UCA Kit for 17-20 Ford F-150 Raptor

Vehicle Fitment

• 2017-2020 Ford F-150 Raptor (Gen 2, 4WD, All Trims) - Designed for 1-3" of lift

Fitment Notes

• Does NOT fit 2021-2025 Ford F-150 Raptor or Raptor R (Gen 3) - see CAM-110322-GRY for that application
• Does NOT fit standard 2017-2020 Ford F-150 non-Raptor models - Raptor-specific geometry and spindle/knuckle
• Designed for 1-3" of lift - lift is determined by coilovers or springs, not the control arms alone
• Professional installation recommended; basic alignment required after installation
• Color: Gunmetal Gray (GRY suffix) - also available in other finishes

Features

• CNC machined in-house from aerospace-grade 6061 billet aluminum for superior strength over OEM stamped arms
• Camburg X-Joint XL - extreme performance, all-weather, all-conditions high-angle ball joint made from heat-treated chromoly with a dual lip sealed, greaseable boot design
• FK 7/8" chromoly heim joints at frame pivots allow additional camber and caster adjustment while eliminating flex and deflection under hard use and braking
• Corrects suspension geometry - builds in additional caster for improved handling both on- and off-road
• Increases usable front wheel travel and articulation compared to OEM arms
• Type II anodized gunmetal gray finish with laser-etched Camburg logo for durability and appearance
• All necessary hardware and step-by-step installation instructions included
• Designed, machined, and assembled in the USA

Specifications

• Material: Aerospace-Grade 6061 Billet Aluminum
• Finish: Type II Anodized - Gunmetal Gray, Laser Etched
• Ball Joint: Camburg X-Joint XL (Heat-Treated Chromoly, Fully Sealed, Greaseable)
• Frame Pivot: FK 7/8" Chromoly Heim Joints
• Lift Range: 1-3"
• Position: Front Upper Control Arms (Pair)
• Drivetrain: 4WD
• Manufacturing: CNC Machined In-House - Made in USA
• Series: KINETIK Series X-Joint XL

Included Components

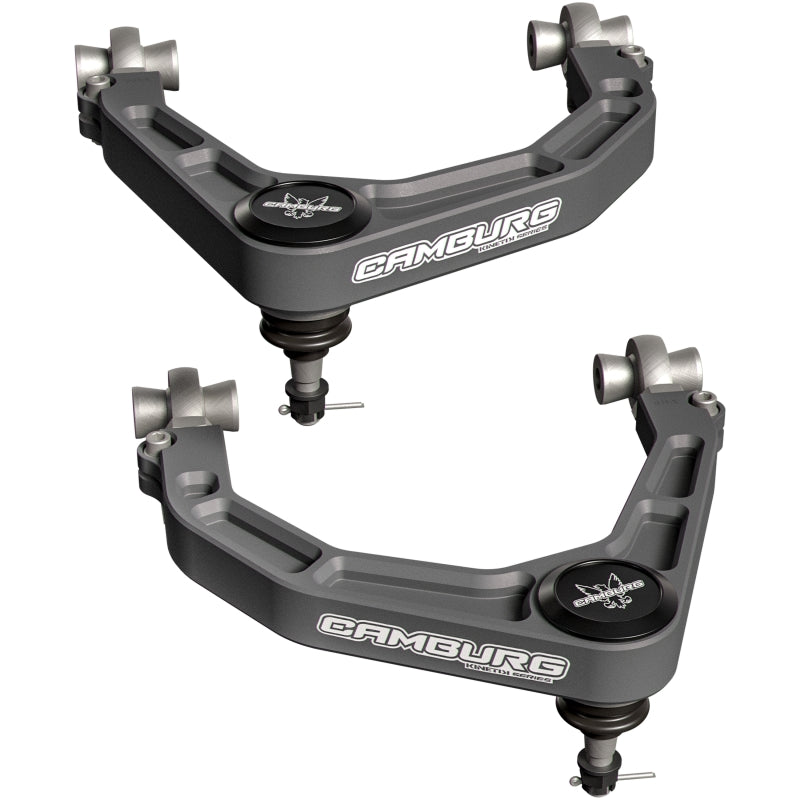

• 2x Camburg KINETIK X-Joint XL Upper Control Arms (Gray)
• 2x Camburg X-Joint XL Ball Joints (pre-installed)
• FK 7/8" Chromoly Heim Joints (pre-installed)
• All necessary mounting hardware (AN/Mil-spec bolts, nuts, spacers)
• Step-by-step installation instructions

Product Description

The Camburg CAM-110234-GRY is a KINETIK Series X-Joint XL upper control arm kit engineered exclusively for the 2017-2020 Ford F-150 Raptor (Gen 2). CNC machined in-house from aerospace-grade 6061 billet aluminum, these arms are a direct upgrade over the OEM stamped steel units - delivering increased wheel travel, corrected suspension geometry, improved caster, and dramatically stronger pivot hardware in a bolt-on package.

At the spindle, the Camburg X-Joint XL replaces the factory ball joint with a heat-treated chromoly high-angle joint featuring a dual lip sealed and greaseable boot - built to handle dirt, mud, sand, snow, and sustained off-road abuse without compromise. At the frame, FK 7/8" chromoly heim joints allow precise camber and caster tuning while eliminating the flex and deflection common with OEM rubber bushings. Finished in gunmetal gray Type II anodize with a laser-etched logo, these arms are designed for 1-3" of lift and come with all hardware and instructions needed for installation.
